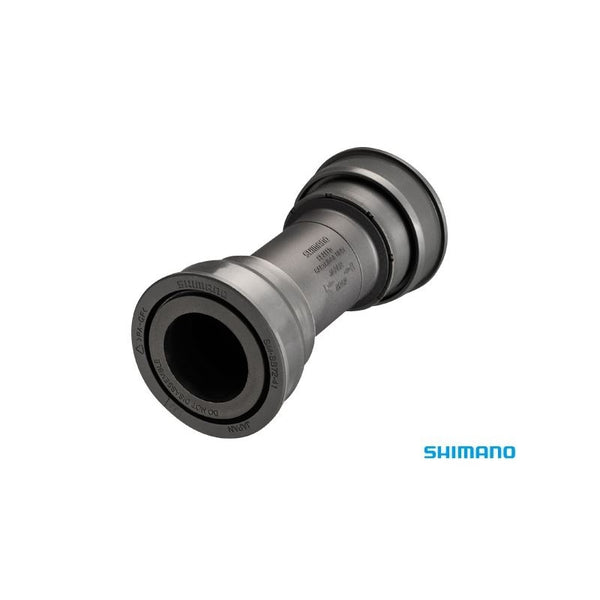

Shimano Press Fit Bottom Bracket SM-BB72 89.5/92MM X 41MM Road

Shimano SM-BB72-41B is a press fit bottom bracket recommended for Ultegra and 105 11-speed and Metrea City cranks. Small ball bearings help save on weight. This Hollowtech II bottom bracket also has a shaft diameter of 24 mm, which has proven to be optimal in terms of stiffness and rotational efficiency.


SPECIFICATIONS

Application: Road, City
Type: Press fit BB86
Shell Diameter: 41 mm
Shell Width: 86.5 mm
Axle Diameter: 24 mm (Hollowtech II)

TECHNICAL INFORMATION
Bearings: Steel
Bottom Bracket Cup Material: Synthetic resin

COMPATIBILITY

Recommended for:
- Ultegra FC-R8100, FC-R8100-P, FC-R8000, FC-6800
- 105 FC-R7100, FC-R7000, FC-5800
- GRX FC-RX820, FC-RX810
- Metrea FC-U5000
- FC-RS500


FEATURES

- small ball bearings for low weight


TECHNOLOGY

Hollowtech II
Shimano Hollowtech II is a crank bottom bracket system designed to achieve an ideal ratio of stiffness, weight and rotational efficiency. It is based on an integration of the bottom bracket and the right crank arm and works with a 24 mm axle or bearing diameter, which has proven to be optimal in terms of stability. In many cases, the bearing cups are on the outside so that the load is better distributed. High-quality precision seals ensure a long service life.
