A BRAND NEW 30MM DEEP TUBELESS FRIENDLY RIM THAT'S LIGHT AND DYNAMIC, LACED WITH DOUBLE BUTTED SPOKES ON OUR STATE-OF-THE-ART INFINITY HUBS. ALL THE MAVIC QUALITY AND PERFORMANCE WITHIN REACH.

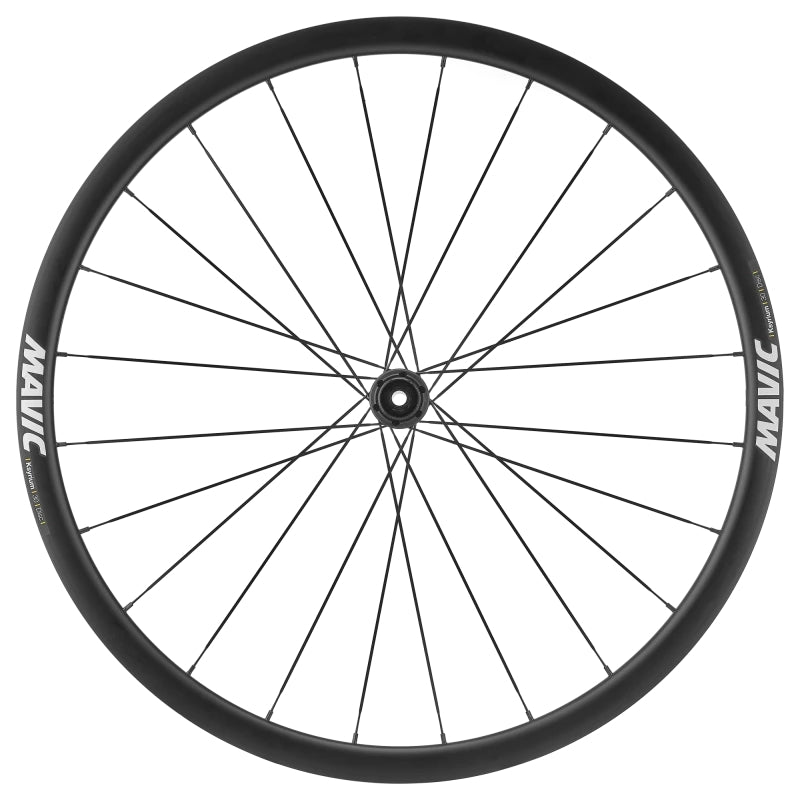

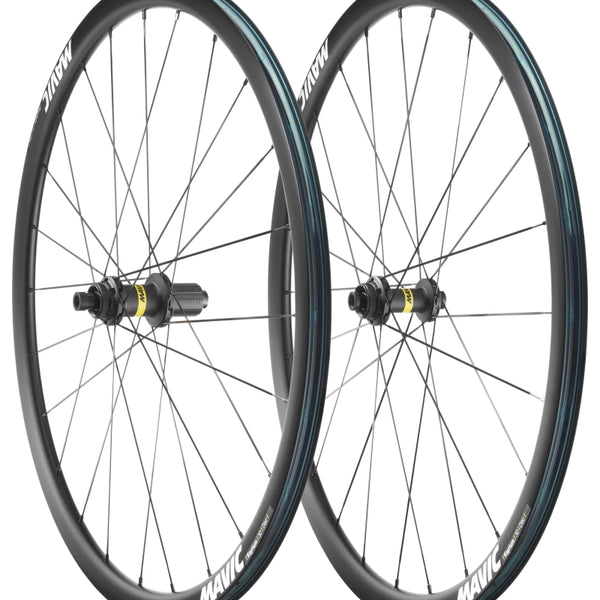

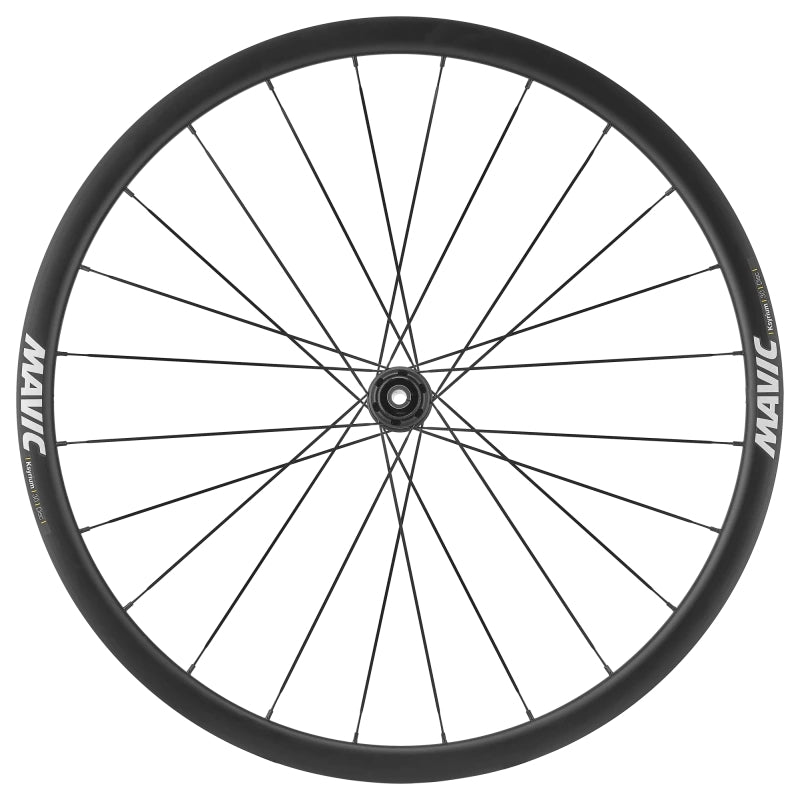

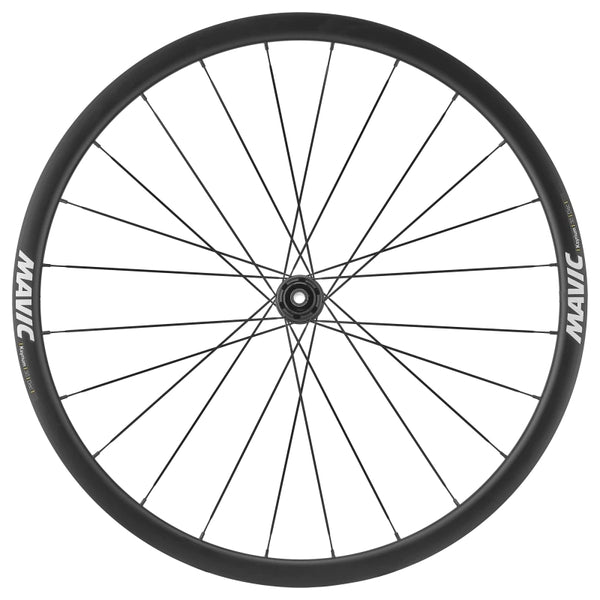

The Ksyrium 30 Disc is a perfect entry point into high-level race performance. This all-new UST Road Tubeless system delivers a smoother ride and improved puncture resistance while retaining a lightweight feel for climbing and accelerating.
By removing the tube, we've also removed friction, so there's less rolling resistance, which means it requires less energy to reach higher speeds.

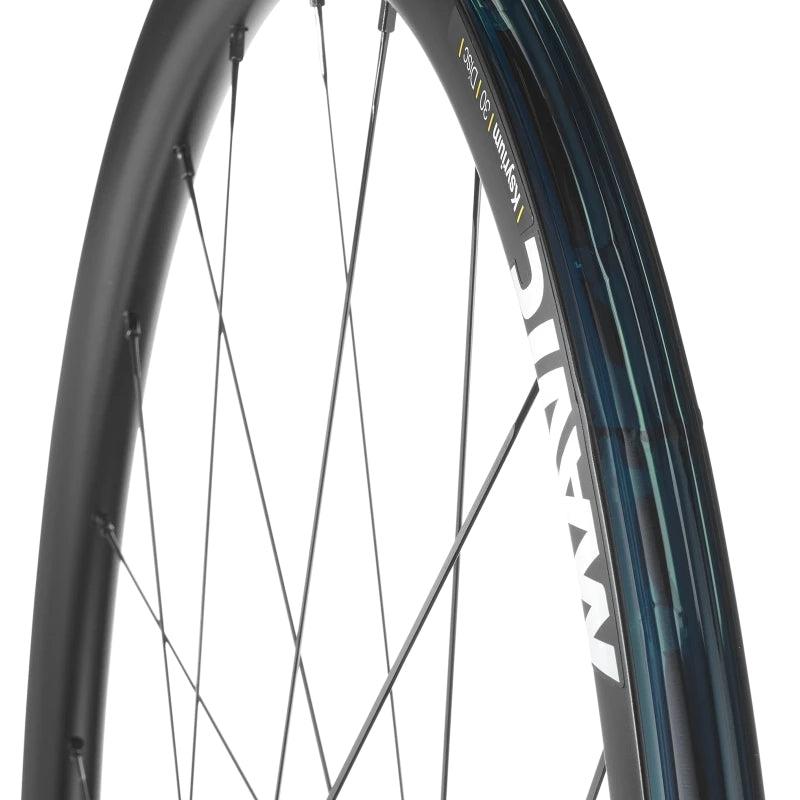

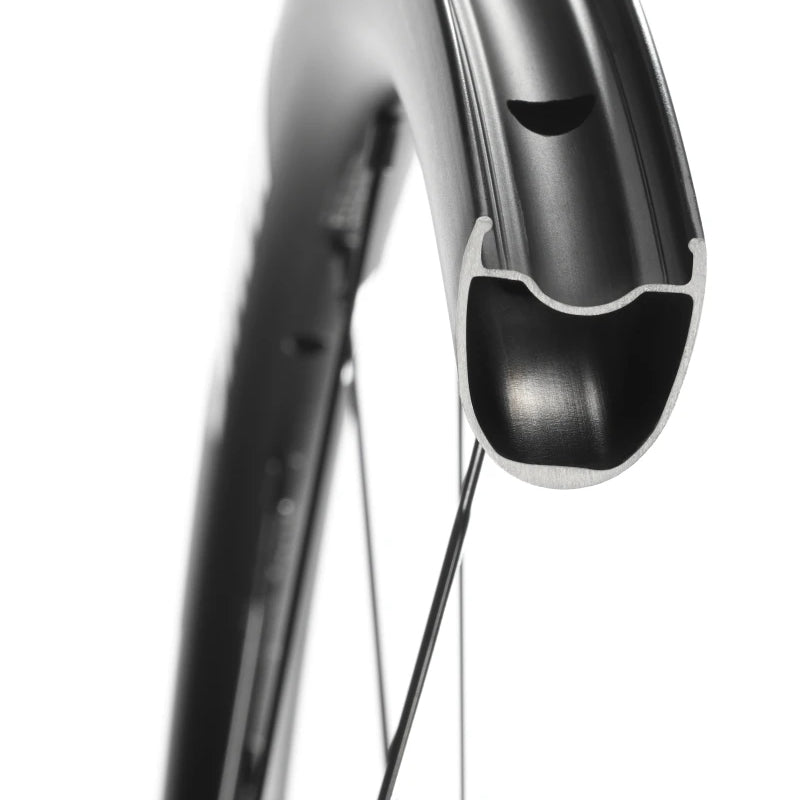

The 30mm deep rim optimizes aero performance and improves stability in crosswinds. The alloy rim benefits from our unrivaled experience creating light yet strong rim extrusions. We do this by carefully tuning the thickness of the rim wall to hit the sweet spot between stiffness, strength and weight.

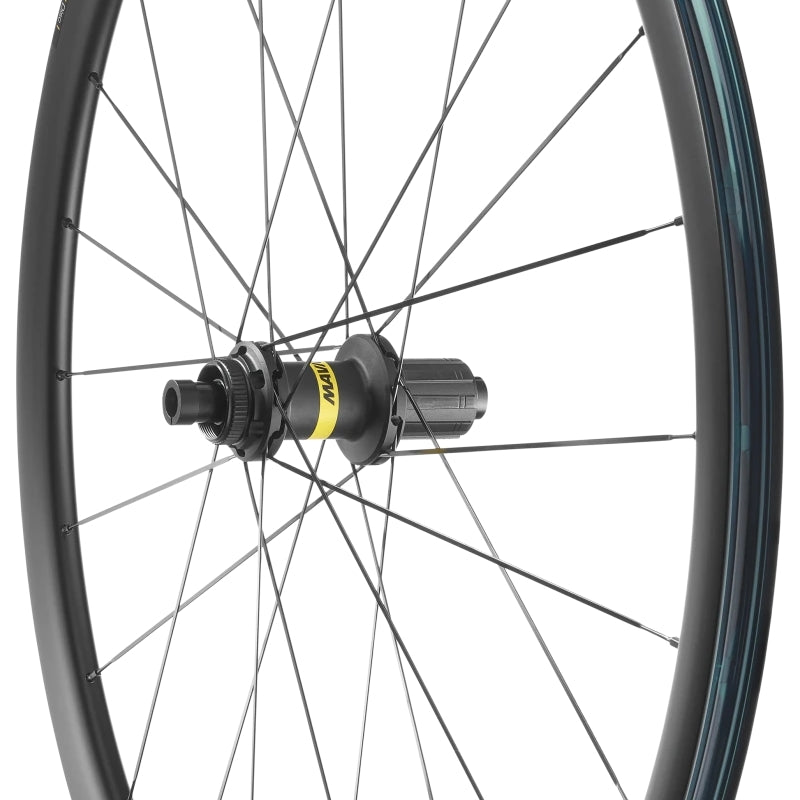

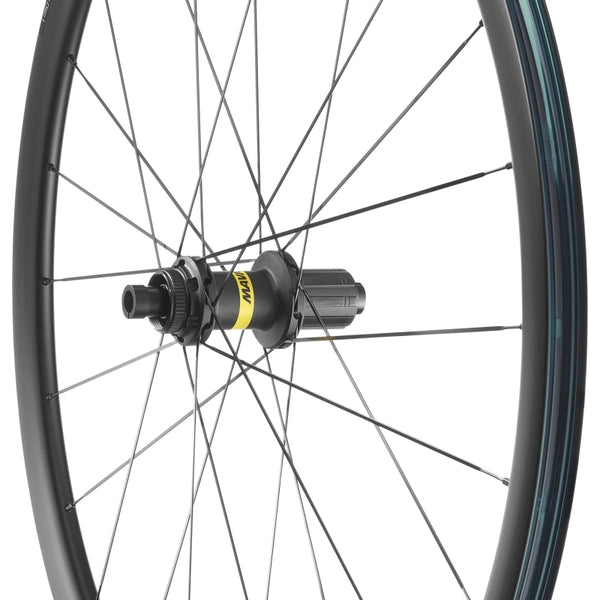

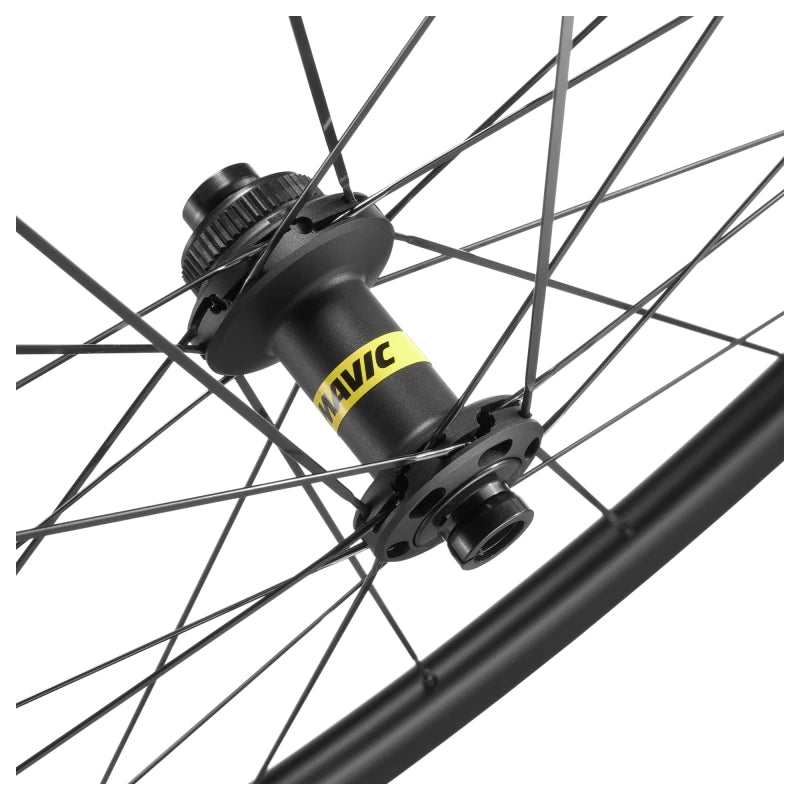

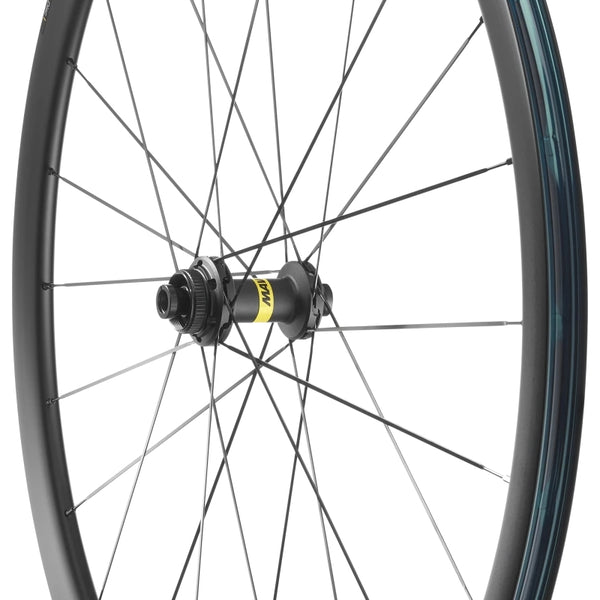

The bladed straight pull spokes are laced to our high-end Infinity hub platforms : optimal spoke tension balance is a guarantee for perfect stiffness and great durability, with only 1 spokes length for both wheels to worry about.

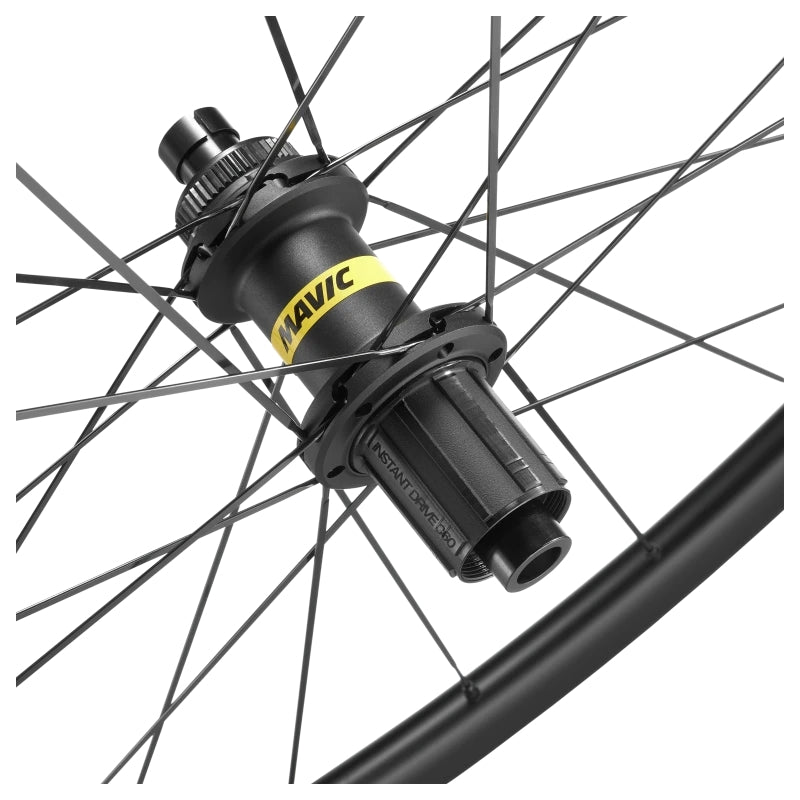

The Instant Drive 360 ratchet freewheel system is quick to engage and offers low friction.
This hub easily converts from Shimano/SRAM to Campagnolo or XD cassette and is compatible with Center Lock disc rotors.
FEATURES
Dynamic and agile thanks to double butted spokes and Infinity hub platform
ID360 freewheel technology�?<
Infinity hub platform : Stiffer axle, durable bearings and new design�?<.
Light and aero 30mm deep rims�?<
30mm deep, 19mm wide (internal)�?<
Light welded rim�?<
Traditionnal drilling�?<
Refined UST rim bed that eases tyre mounting
Light double butted flat spokes
Refined tubeless technology helps you ride faster and smoother, while being easy to install and maintain.
Optimised UST rim tape shape
Durable and perfectly sealed rim
SPECIFICATIONS
WEIGHT (MANUFACTURER)
Weight Pair: 1796 g
Weight Front: 833 g
Weight Rear: 963 g
RIMS
Material: Maxtal
Height: 30 mm
Joint: SUP welding technology
Internal width: 19 mm
Drilling: traditional (front/rear 24 holes)
Braking: disc
ETRTO size: 622x19TC
Tire: Tubetype or UST Tubeless Ready with Mavic Tubeless Tape
SPOKES
Material: steel
Shape: straight, extra-flat, constricted, antirot (front and rear)
Nipples: steel, ABS, black
Lacing: crossed 2 (front and rear)
HUBS
Body material: aluminium
Body design: INFINITY
Disc standard: Center Lock only
Axle material: aluminum
Axle size: front 12x100 / rear 12x142 - Convertible to quick release with adapters (not included)
Freewheel technology: Instant Drive 360
Freewheel: Shimano HG road
Bearing technology: QRM automatic setting - sealed cartridge
COMPATIBILITY
Freewheel body: convertible SRAM XD road (kit V2580101 sold separately)
Freewheel body: convertible SHIMANO HG light road (kit V3850101 sold separately)
Freewheel body: convertible SHIMANO MS (kit V3990101 sold separately)
Freewheel body: convertible CAMPAGNOLO ED (kit V3440101 sold separately)
Freewheel body: convertible CAMPAGNOLO N3W (kit V4270101 sold separately)
Front axle adapters: 12x100 convertible to 9x100 (kit V2680301 sold separately)
Rear axle adapters: 12x142 convertible to 9x135 (kit V2510801 sold separately)
Rear axle adapters: 12x142 convertible to 12x135 (kit V2510901 sold separately)
INTENDED USE
Maximum tyre size: width 62mm - pressure max. 3.8Bar/55PSI
ASTM category 2 : road and offroad with jumps less than 15cm
Maximum weight supported by the wheels: must not exceed 120 kg (bike weight included)
