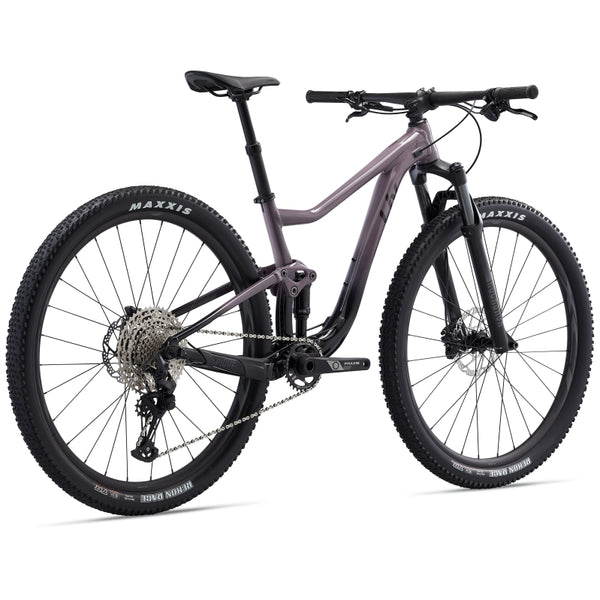

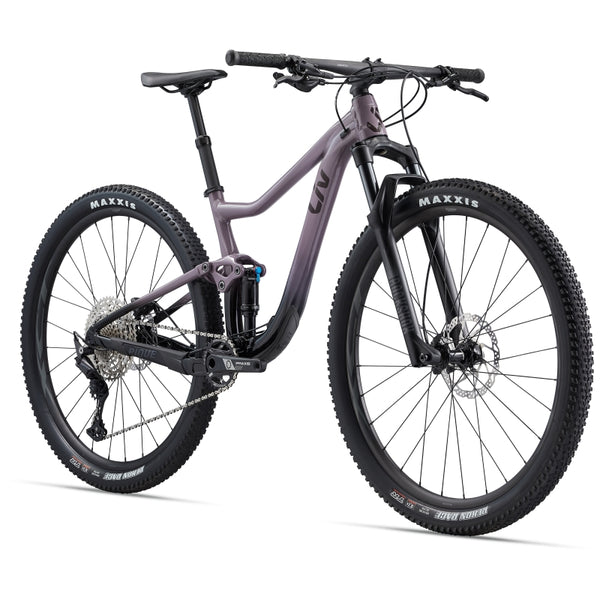

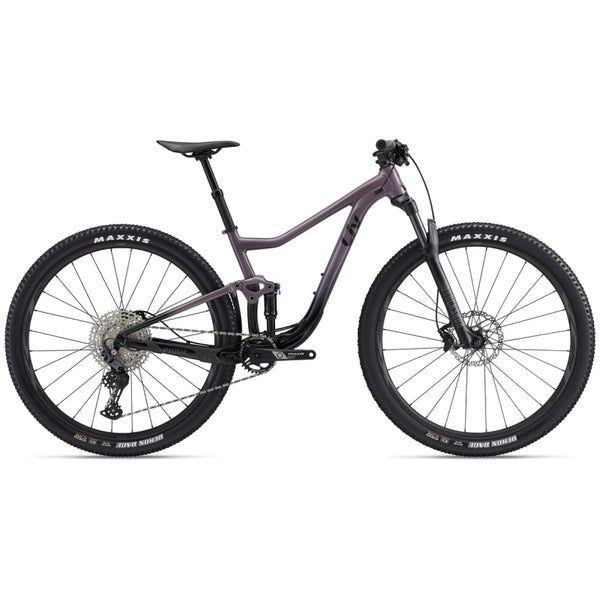

Liv Pique 29

$1,999.95$3,699.00
Colour: Purple Ash
Size
Add to Cart
  • techs & features
  • geometry
  • specs
  • similar products
  • you may also like
  • TAKE THE FAST LINE.

    If fast and flowy trails are calling your name, the Pique 29 is begging to come along. This cross-country bike climbs and descends with confidence-inspiring stability and speed.

    KEY PERFORMANCE FACTORS

    Durable
    The sturdy ALUXX SL-Grade aluminium frame is tough and dependable for your most epic adventures.

    Capable
    29-inch wheels easily roll over small obstacles, while 100mm of Maestro suspension - tuned for women, by women - help absorb rougher trail.

    Stable
    An integrated dropper seatpost and clearance for up to 2.25-inch tyres means you can confidently ride moderately technical terrain.


    SPEC & GEOMETRY - PIQUE 29

  • TECHS & FEATURES

    ×

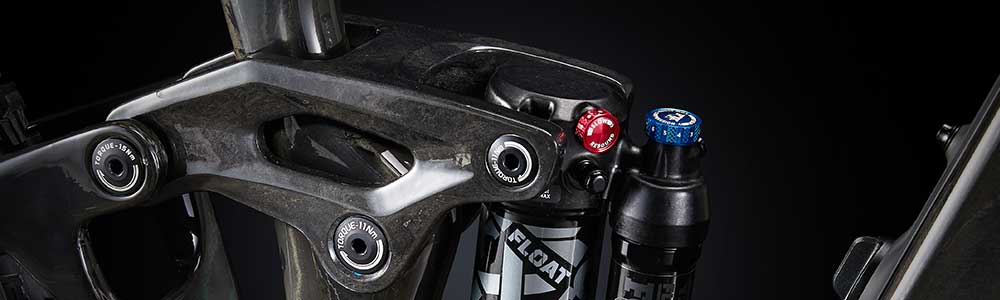

    ADVANCED FORGED COMPOSITE TECHNOLOGY

    A state-of-the-art, high-pressure molding process used to produce complex-shaped carbon fiber components that are lighter, stiffer and stronger than similar aluminum components.

    ×

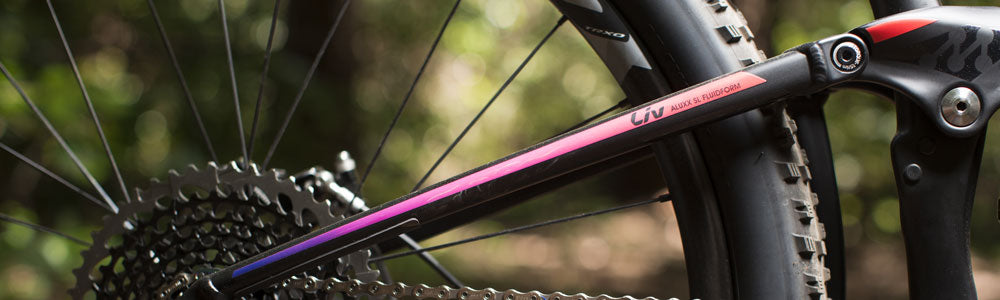

    ALUXX SL ALUMINIUM TECHNOLOGY

    This High-Performance level, state-of-the-art aluminum material is made predominantly from 6011 alloy and delivers best-in-class strength-to-weight ratios. These framesets also feature unique welding technologies for a high-performance ride quality.

    ×

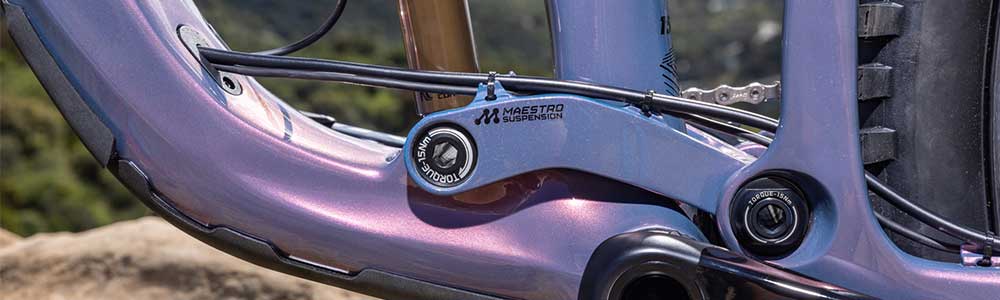

    MAESTRO SUSPENSION TECHNOLOGY

    Four strategically positioned pivot points and two linkages all work together to create a single floating pivot for the most active, efficient and independent suspension system on the trail.

    READ MORE

    ×

    OVERDRIVE

    Designed to provide precise front-end steering performance, this fork steerer tube technology uses oversized headset bearings (1 1/4” lower and 1 1/8” upper for road, 1 1/2” lower and 1 1/8” upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.

    ×

    POWERCORE

    A massively oversized bottom-bracket/chainstay area features a fully integrated, 86-millimeter wide bottom-bracket design (92-millimeterwide for off-road bikes). Asymmetric chainstays provide additional stiffness on the driveside and stability on the non-driveside.

  • SIZING GUIDE AND GEOMETRY

    Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
    Available sizes may vary from country to country.

    XS
    S
    M
    L
    A SEAT TUBE LENGTH (mm)
    390
    406
    445
    482
    B SEAT TUBE ANGLE
    74.0°
    74.0°
    74.0°
    74.0°
    C TOP TUBE LENGTH (mm)
    565
    580
    595
    610
    D HEAD TUBE LENGTH (mm)
    90
    95
    100
    110
    E HEAD TUBE ANGLE
    68.5°
    68.5°
    68.5°
    68.5°
    F FORK RAKE (mm)
    51
    51
    51
    51
    G TRAIL (mm)
    92.9
    92.9
    92.9
    92.9
    H WHEELBASE (mm)
    1100
    1115
    1131
    1147
    I CHAIN STAY LENGTH (mm)
    438
    438
    438
    438
    J BOTTOM BRACKET DROP (mm)
    45
    45
    45
    45
    K STACK (mm)
    578
    583
    587
    597
    L REACH (mm)
    399
    413
    427
    439
    M STAND OVER HEIGHT (mm)
    694
    703
    724
    755
    O STEM LENGTH (mm)
    50
    50
    60
    70
    P CRANK LENGTH (mm)
    165
    170
    170
    175
    Q WHEEL SIZE
    29"
    29"
    29"
    29"
  • Please note that our specifications may be impacted by running substitution changes, we highly recommend confirming the specifications of our products with your local retailer at the time of sale if purchasing in-store. *Recommended Retail Prices are subject to change without notice and may vary from store to store depending on freighting and assembly costs.
