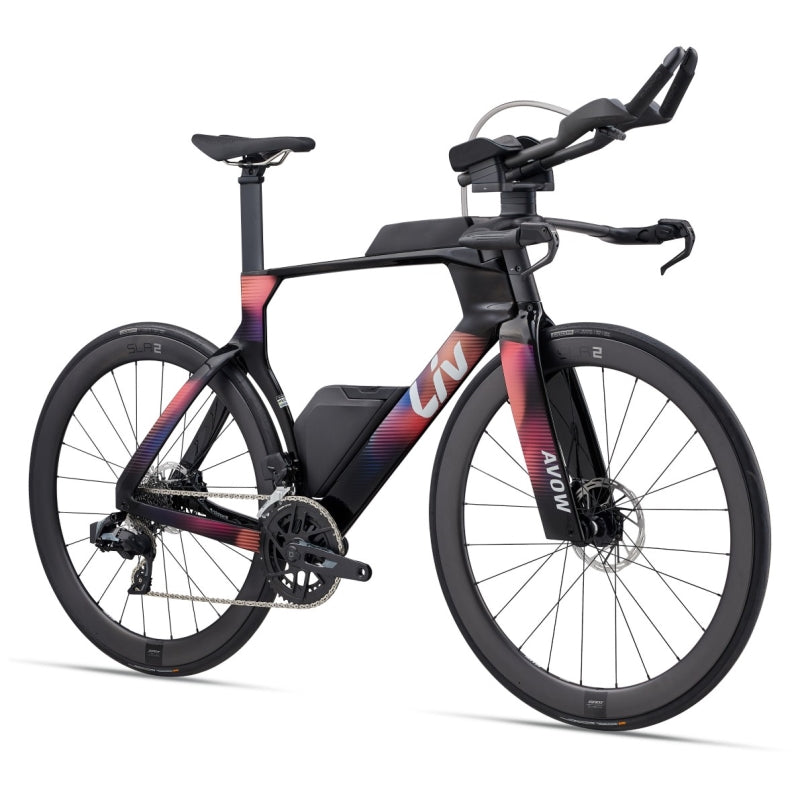

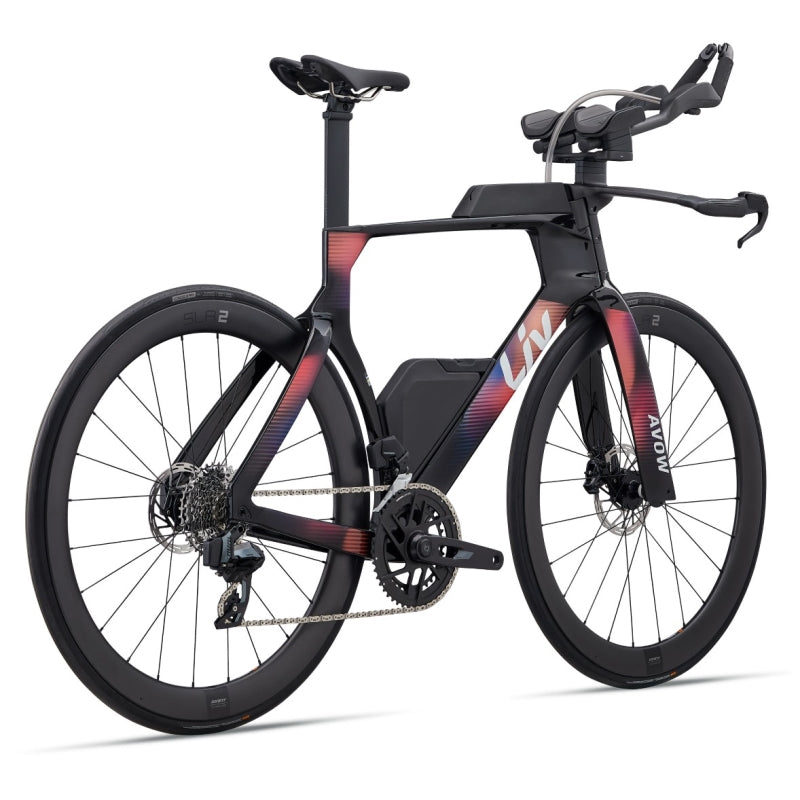

YOUR BIKE. YOUR RACE.
Start strong with the fastest, lightest, most aero tri bike available for women.
This is not your ordinary, mass-produced, good-enough-for-a-girl bike. It's the one-of-a-kind, top-of-the-line, head-turning, split-crushing bike of your dreams. The Liv Avow is your bike. And this is your race.
KEY PERFORMANCE FACTORS
YOUR FASTEST BIKE SPLIT

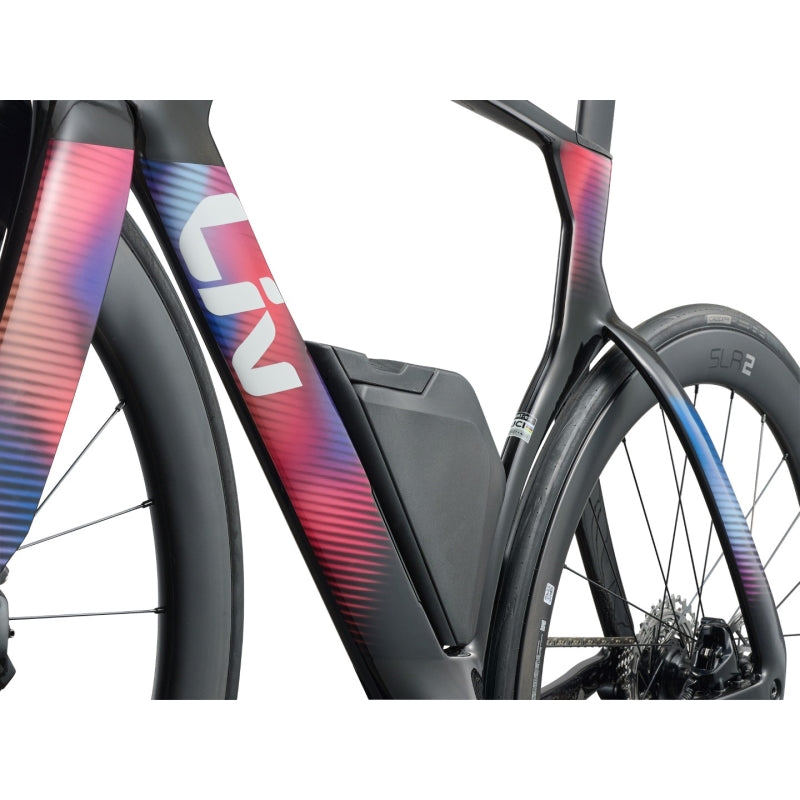

Everything about the Advanced SL carbon frameset has been optimized to shave seconds. The sleek, integrated hydration reservoir and bento box put fuel at your fingertips. And the new frameset is lighter by 433g, without compromising stiffness or aerodynamics, translating to 10% greater overall efficiency-which means energy left over for the run.

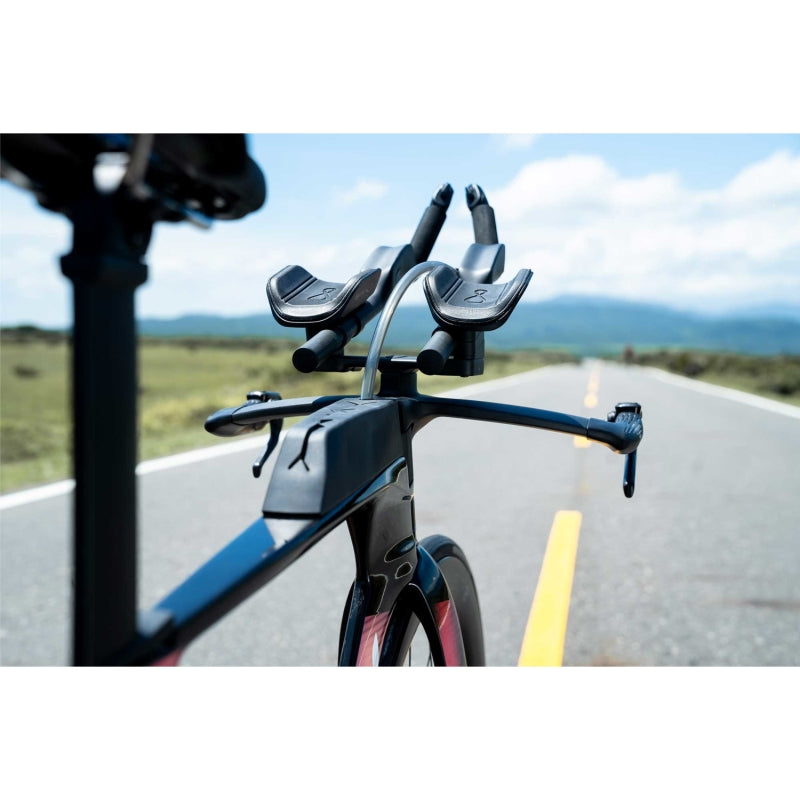

YOUR OPTIMIZED FIT

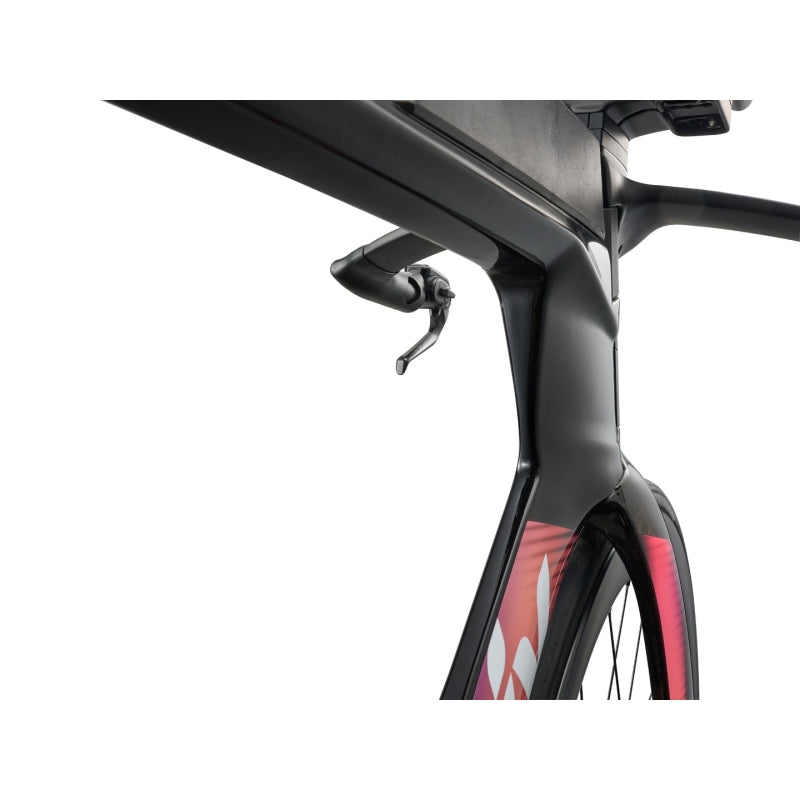

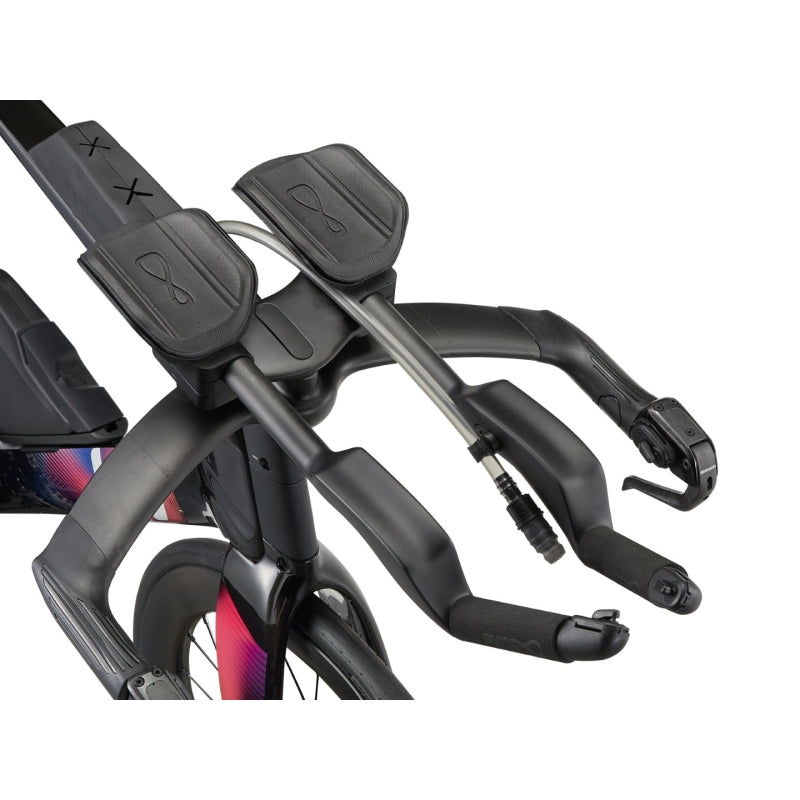

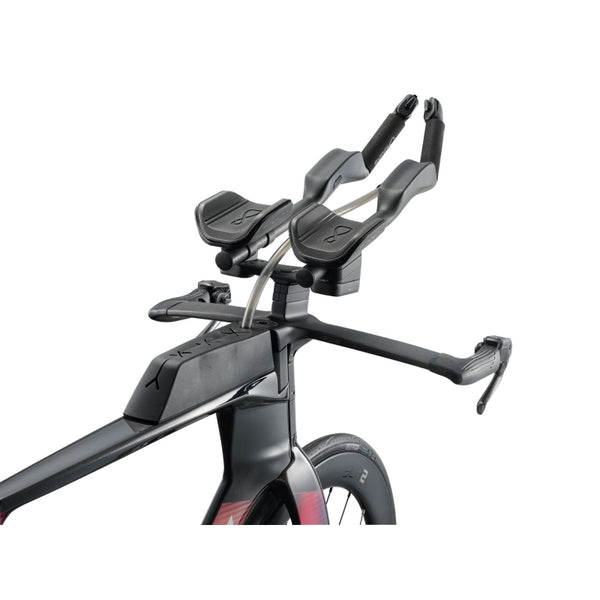

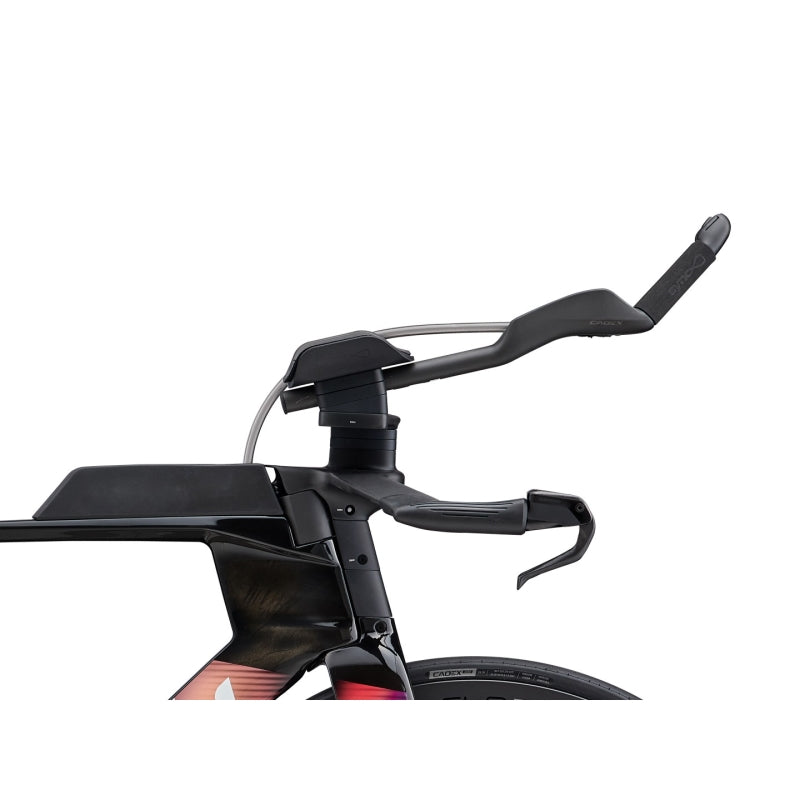

Dial in every aspect, with four seatpost offset positions (within a 51mm range) and 24x more armrest positions, varying stack, reach, angle and width, using a simple, travel-friendly two-bolt mechanism. Make it your bike for the course-more comfort for Ironman or more streamlined for TT.
YOU'RE IN CONTROL

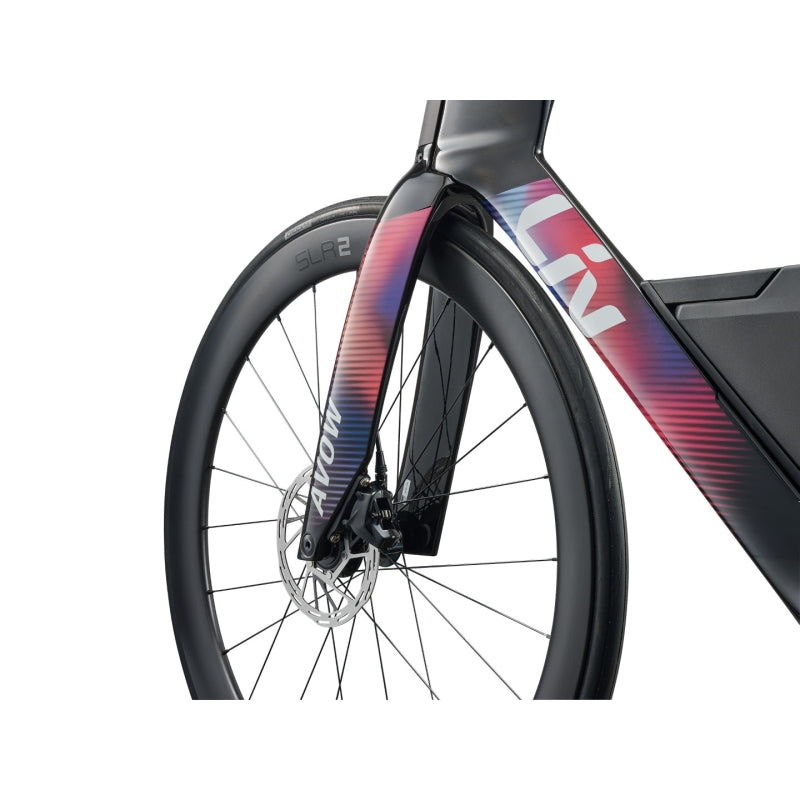

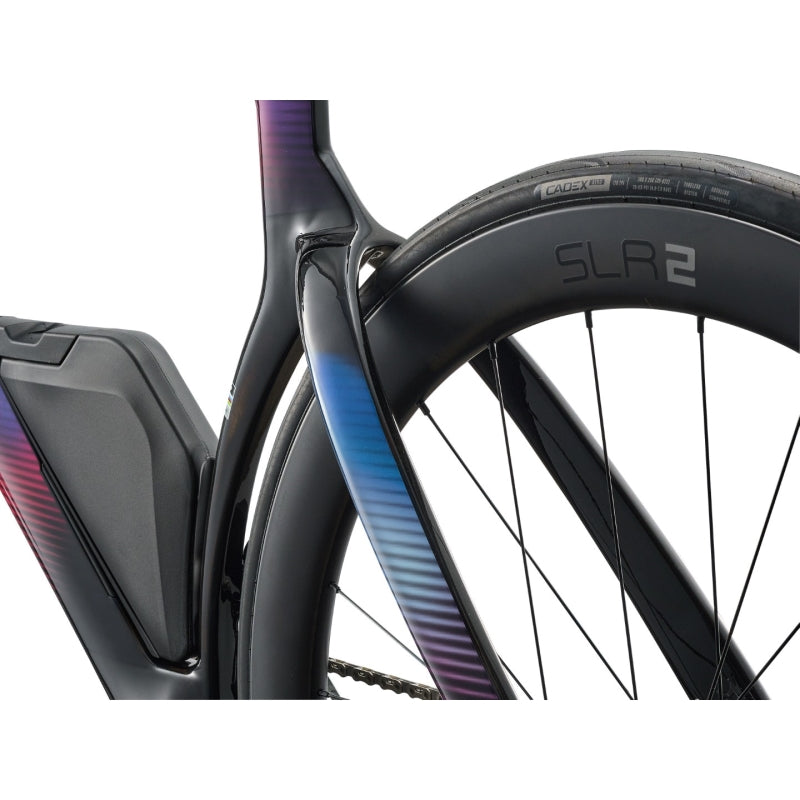

Integrated disc brakes deliver greater stopping power without compromise to aero efficiency, thanks to fork shaping that shields the brakes from the wind. Enhanced seatpost and armrest compliance help you settle into a comfortable, confident position for 20k or 180k. -

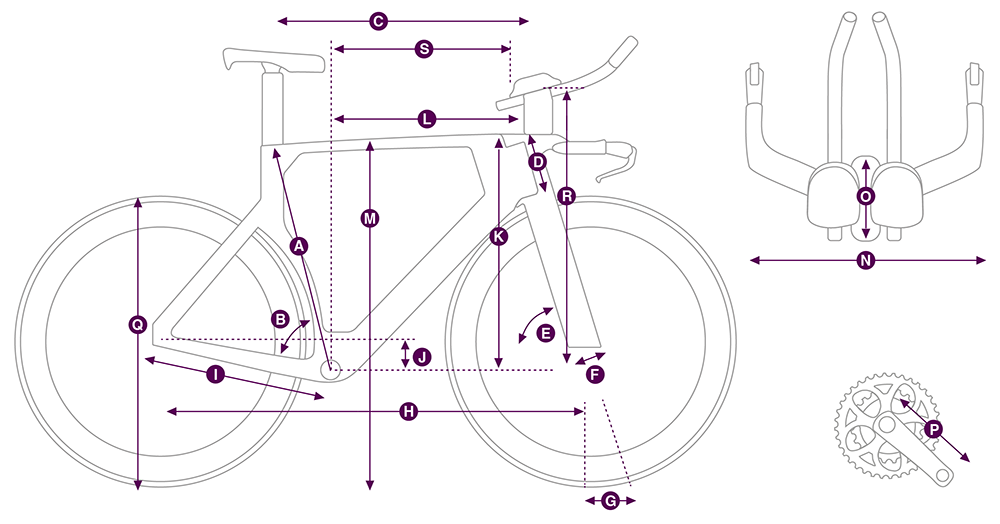

SIZING GUIDE AND GEOMETRY
Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.XXSXSSMA SEAT TUBE LENGTH (mm)440465495525B SEAT TUBE ANGLE77.0°77.0°77.0°77.0°C TOP TUBE LENGTH (mm)493510530554D HEAD TUBE LENGTH (mm)6585105125E HEAD TUBE ANGLE71.0°72.0°73.0°73.0°F FORK RAKE (mm)40404040G TRAIL (mm)79696363H WHEELBASE (mm)9699749881013I CHAIN STAY LENGTH (mm)405405405405J BOTTOM BRACKET DROP (mm)70707070K STACK (mm)467490513532L REACH (mm)387397412432M STAND OVER HEIGHT (mm)733758786814P CRANK LENGTH (mm)160160160165Q WHEEL SIZE700C700C700C700CR ARM PAD STACKTRI604-686 TT556-640TRI629-709 TT582-662TRI653-733 TT605-685TRI672-752 TT624-704S ARM PAD REACHTRI309-383 TT326-400TRI323-398 TT339-414TRI340-415 TT355-430TRI360-435 TT375-450 -
Please note that our specifications may be impacted by running substitution changes, we highly recommend confirming the specifications of our products with your local retailer at the time of sale if purchasing in-store. *Recommended Retail Prices are subject to change without notice and may vary from store to store depending on freighting and assembly costs.
-
