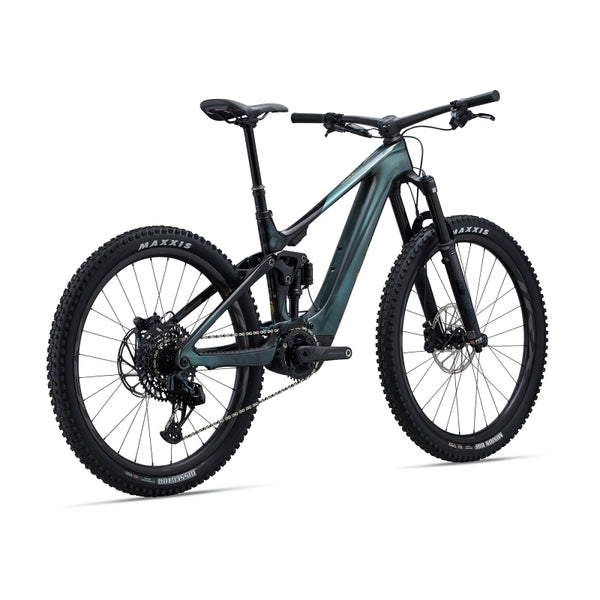

Liv Intrigue X Advanced E+ Elite 1

$9,999.00$14,499.00


Colour: Airglow / Black
Size
Add to Cart
  • Range
  • techs & features
  • geometry
  • specs
  • similar products
  • you may also like
  • NEXT-LEVEL PERFORMANCE AND UNFORGETTABLE FUN AWAIT YOU ON THIS PREMIUM E-MTB. THE CUTTING-EDGE INTRIGUE X ADVANCED E+ ELITE IS REMARKABLY LIGHT BUT SUPER POWERFUL. GET READY TO FEEL LIKE A PRO AS YOU SHRED TECHNICAL TERRAIN WITH CONFIDENCE, ACCELERATE UP CLIMBS, AND CORNER AT TOP SPEED.


    KEY PERFORMANCE FACTORS

    Lightweight and nimble

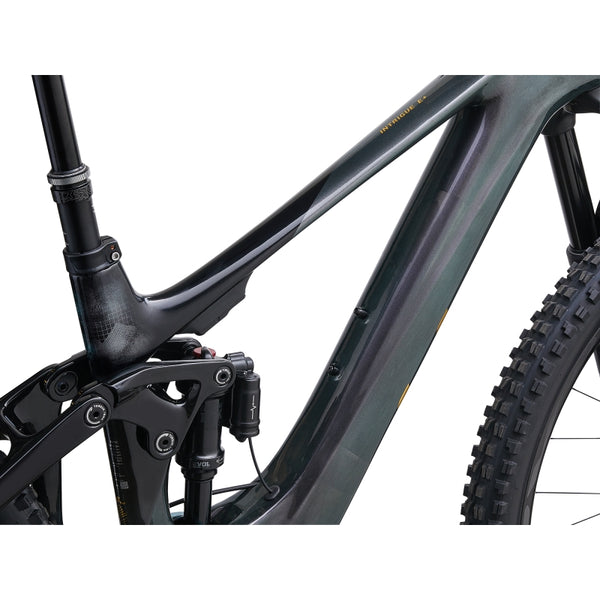

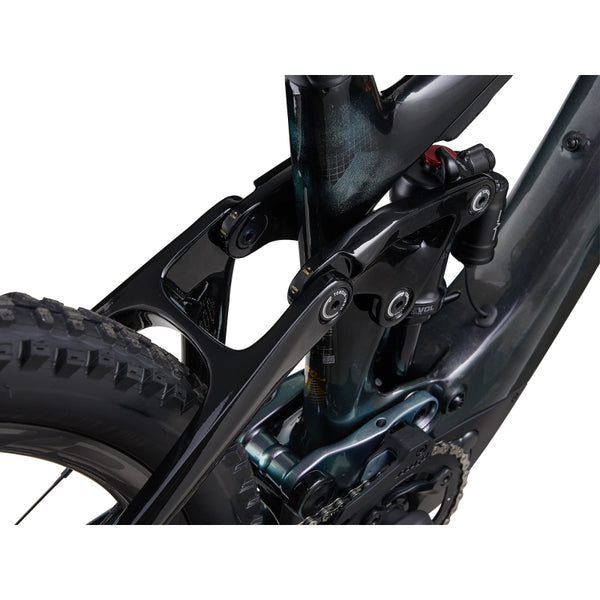

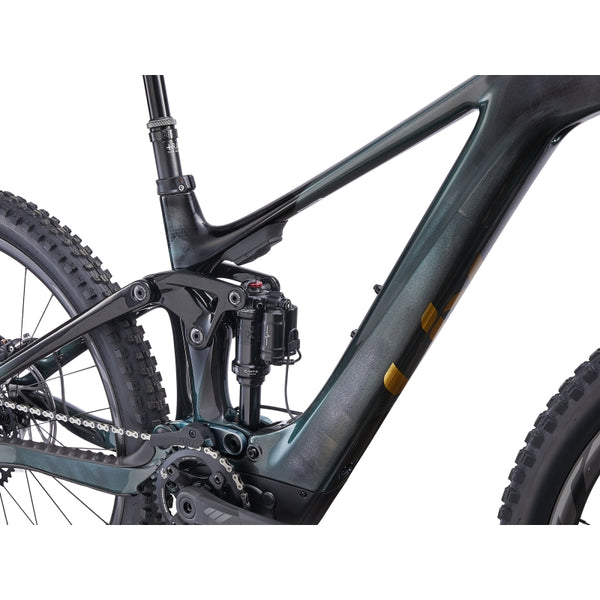

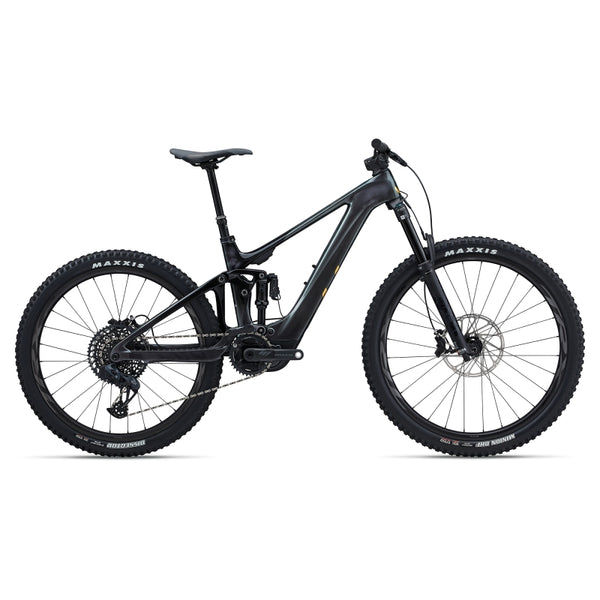

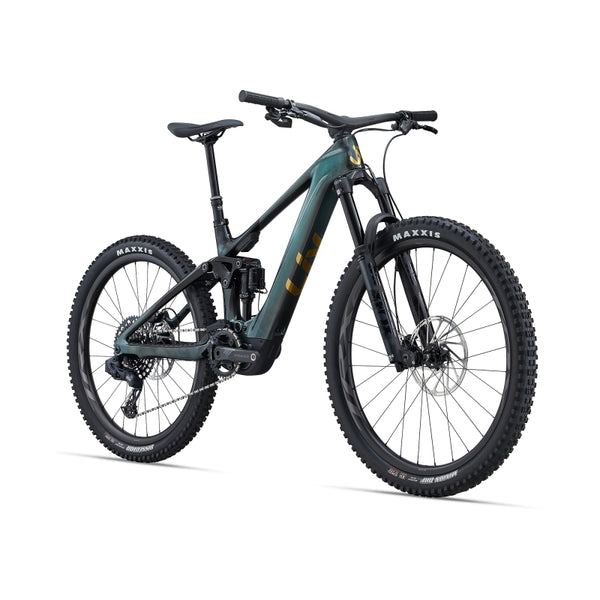

    This full-suspension E-MTB, with its short chainstay and 140mm (rear)/150mm (front) travel, is engineered to create an ultra-light, efficient and responsive ride. Exceptional shock absorption is an added bonus on rock gardens.

    Powerful and smooth

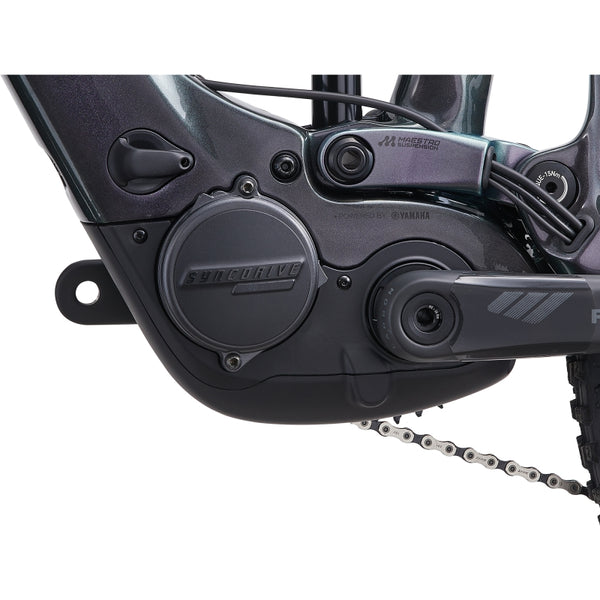

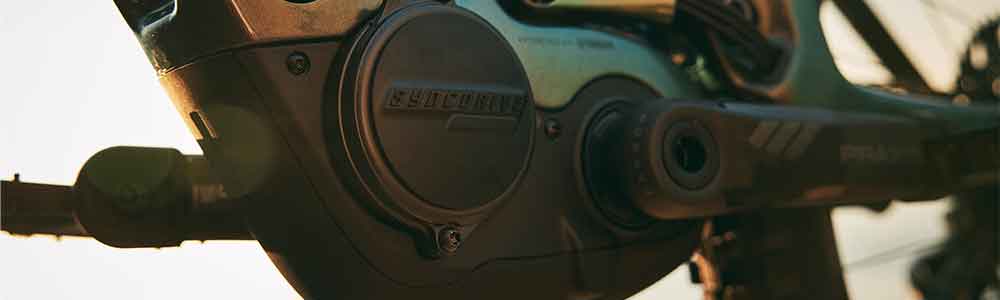

    A powerful 85Nm of torque delivered by the lightweight SyncDrive Pro 2 motor is smooth and instant, keeping you efficient and in control at all times. The ultra-slim, 400Wh battery hidden in the down tube minimizes weight and provides a perfect balance of efficiency and range.

    Sleek design

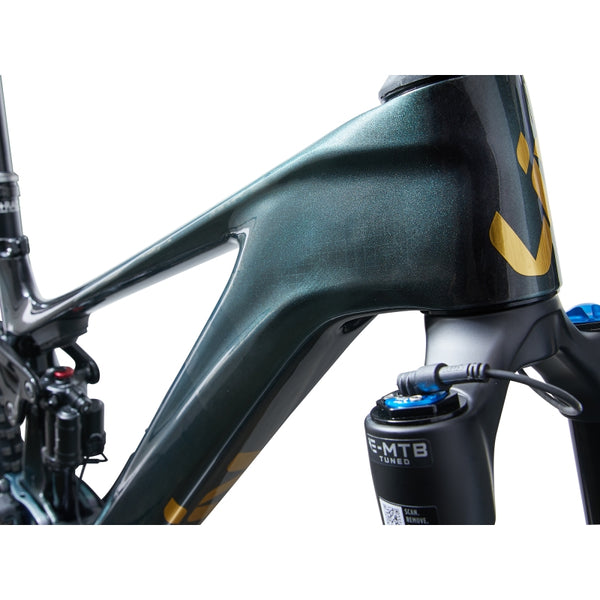

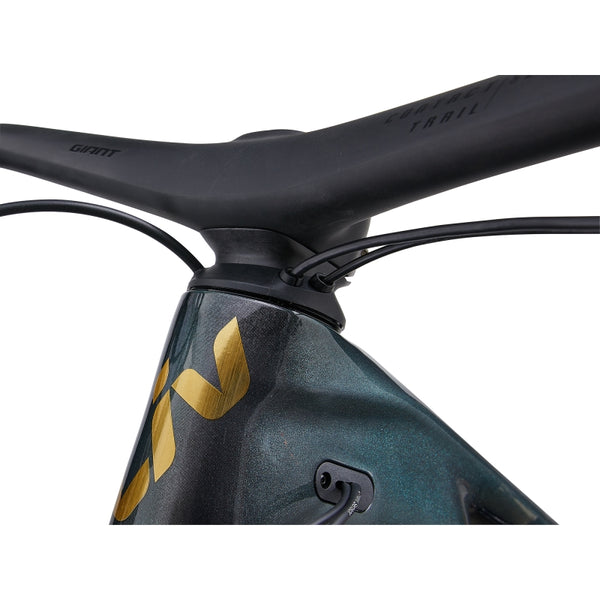

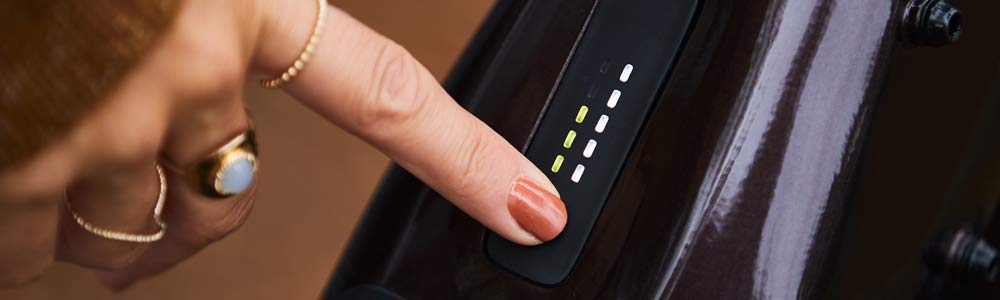

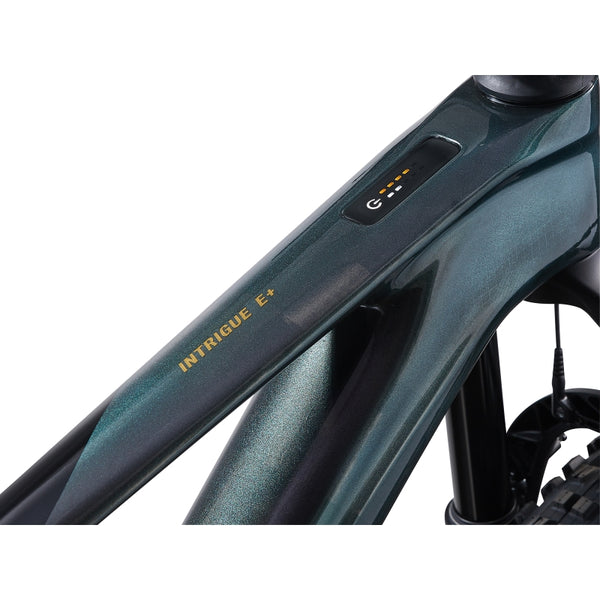

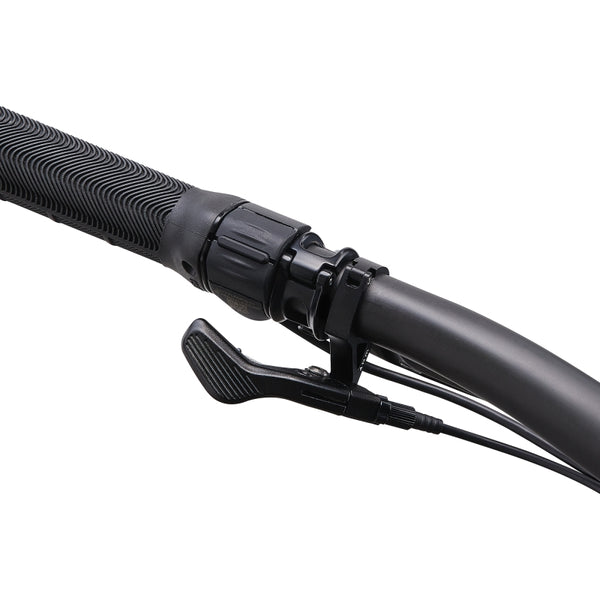

    From the integrated control unit to the sleek console on the top tube and the internal cable routing, every design element embodies a high-end, modern look. It combines leading-edge E-MTB design with a user-friendly experience.

    SPEC & GEOMETRY - INTRIGUE X ADVANCED E+ ELITE 1
  • RANGE

    How far can I expect to ride on a single battery charge?

    The range for a single battery charge can vary greatly depending on conditions such as the combined weight of the rider and cargo; wind resistance; tire pressure and tread profile; terrain and elevation changes; road or trail surface; outdoor temperature; maintenance of the E-Bike; and the condition of the battery.

    The bar below gives an approximate range. Conditions are categorized as extreme, good and ideal. Extreme conditions typically occur when riding with a heavy load, strong headwinds or excessive climbs.

    ENERGYPAK 400 / SYNCDRIVE PRO

    • Range
    • Extreme: 35 km
    • Good: 70 km
    • Ideal: 130 km
  • TECHS & FEATURES

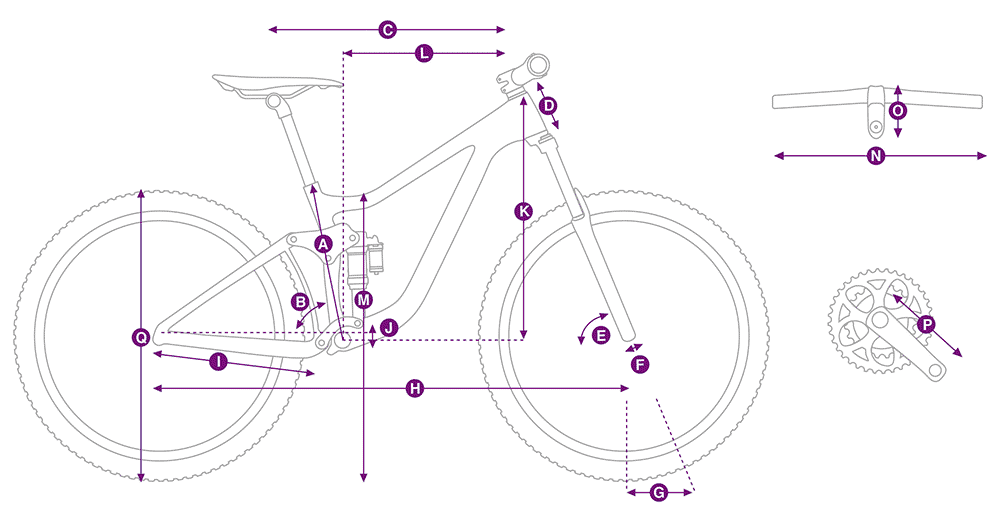

  • SIZING GUIDE AND GEOMETRY

    Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
    Available sizes may vary from country to country.

    XS
    LOW HIGH
    S
    LOW HIGH
    M
    LOW HIGH
    L
    LOW HIGH
    A SEAT TUBE LENGTH (mm)
    380
    400
    425
    450
    B SEAT TUBE ANGLE
    77.2° 78.0°
    77.2° 78.0°
    76.0° 76.7°
    76.0° 76.7°
    C TOP TUBE LENGTH (mm)
    557 555
    572 570
    597 595
    622 620
    D HEAD TUBE LENGTH (mm)
    95
    95
    100
    115
    E HEAD TUBE ANGLE
    65.7° 66.5°
    65.7° 66.5°
    65.8° 66.5°
    65.8° 66.5°
    F FORK RAKE (mm)
    44
    44
    44
    44
    G TRAIL (mm)
    113 108
    113 108
    113 108
    113 108
    H WHEELBASE (mm)
    1174 1175
    1188 1190
    1200 1201
    1228 1229
    I CHAIN STAY LENGTH (mm)
    447 447
    447 447
    447 447
    447 447
    J BOTTOM BRACKET DROP (mm)
    30 20
    30 20
    30 20
    30 20
    K STACK (mm)
    606 601
    611 605
    611 605
    625 619
    L REACH (mm)
    419 427
    434 442
    444 452
    466 473
    M STAND OVER HEIGHT (mm)
    722 730
    726 735
    717 726
    711 723
    O STEM LENGTH (mm)
    40
    40
    40
    50
    P CRANK LENGTH (mm)
    160
    160
    165
    165
    Q WHEEL SIZE
    F29" R27.5"
    F29" R27.5"
    F29" R27.5"
    F29" R27.5"
  • Please note that our specifications may be impacted by running substitution changes, we highly recommend confirming the specifications of our products with your local retailer at the time of sale if purchasing in-store. *Recommended Retail Prices are subject to change without notice and may vary from store to store depending on freighting and assembly costs.
