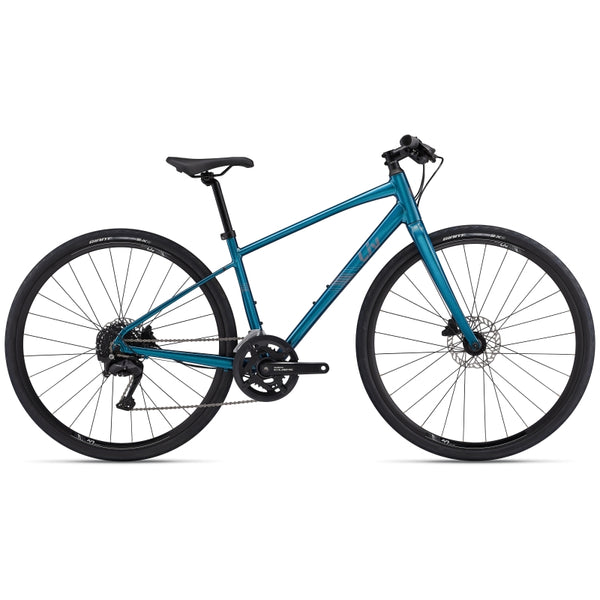

Liv Alight DD Disc 1

$1,099.95$1,299.00


Colour: Sea Sparkle
Size
Add to Cart
  • techs & features
  • geometry
  • specs
  • similar products
  • you may also like
  • THE ALIGHT DD DISC IS REDESIGNED WITH A FAST AND FRESH LOOK, AND IS EQUIPPED WITH TOUCHPOINTS TO MAXIMISE COMFORT, ACCESSORY MOUNTS, AND DEPENDABLE COMPONENTS, MAKING THIS A VERSATILE FLAT-BAR ROAD BIKE PERFECT FOR COMMUTING AND KEEPING AN ACTIVE LIFESTYLE.


    KEY PERFORMANCE FACTORS

    Versatility
    Equipped with integrated mounts for fenders, a rear rack, and a kickstand, the Alight lets you customise your accessories so you can make room for all your essentials and stay clear of debris.

    Comfort
    Staying comfortable on your daily rides is a non-negotiable, so the Alight comes with shock-absorbing grips, a compliant D-Fuse seatpost, and a pressure-relieving saddle.

    Control
    The Alight's powerful disc brakes work in dry or wet conditions, and with the increased fork clearance, you can install up to a 40c tyre, which allows for greater traction.

    SPEC & GEOMETRY - ALIGHT DD DISC 1
  • TECHS & FEATURES

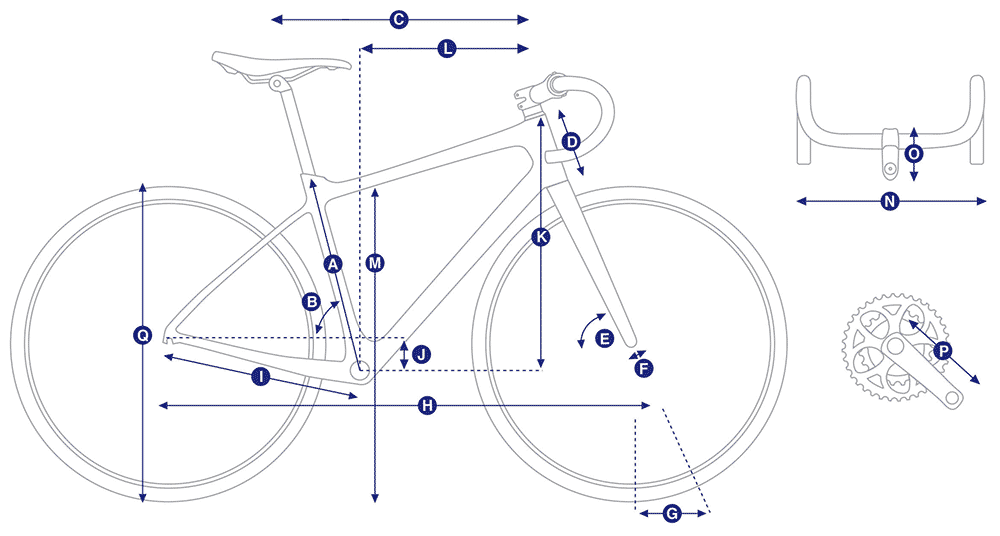

  • SIZING GUIDE AND GEOMETRY

    Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
    Available sizes may vary from country to country.

    XS
    S
    M
    L
    A SEAT TUBE LENGTH (mm)
    370
    420
    460
    500
    B SEAT TUBE ANGLE
    73.5°
    73.5°
    73.0°
    73.0°
    C TOP TUBE LENGTH (mm)
    535
    550
    570
    590
    D HEAD TUBE LENGTH (mm)
    130
    150
    160
    175
    E HEAD TUBE ANGLE
    70.0°
    70.5°
    71.0°
    71.0°
    F FORK RAKE (mm)
    50
    50
    50
    50
    G TRAIL (mm)
    78.2
    74.8
    71.4
    71.4
    H WHEELBASE (mm)
    1044
    1055
    1065
    1085
    I CHAIN STAY LENGTH (mm)
    445
    445
    445
    445
    J BOTTOM BRACKET DROP (mm)
    62
    62
    62
    62
    K STACK (mm)
    554
    575
    587
    601
    L REACH (mm)
    371
    380
    391
    406
    M STAND OVER HEIGHT (mm)
    591
    590
    591
    587
    O STEM LENGTH (mm)
    80
    80
    90
    100
    P CRANK LENGTH (mm)
    165
    165
    170
    170
    Q WHEEL SIZE
    700C
    700C
    700C
    700C
  • Please note that our specifications may be impacted by running substitution changes, we highly recommend confirming the specifications of our products with your local retailer at the time of sale if purchasing in-store. *Recommended Retail Prices are subject to change without notice and may vary from store to store depending on freighting and assembly costs.
