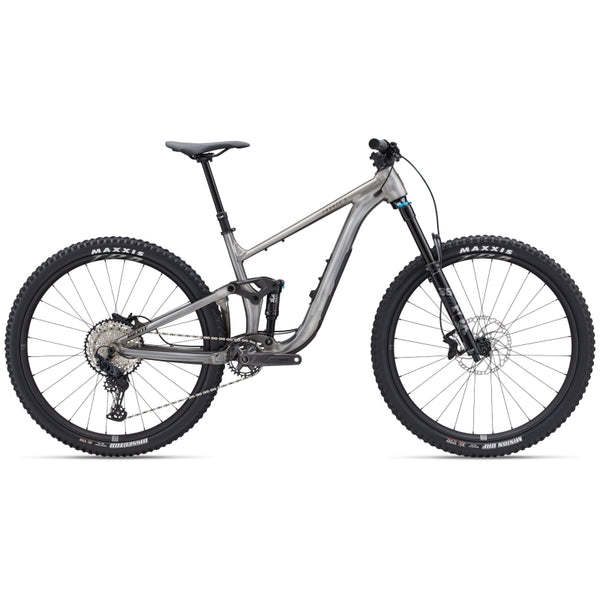

Giant Trance X 1

$5,499.00


Colour: Smoke Metal
Size
Add to Cart
  • techs & features
  • geometry
  • specs
  • similar products
  • you may also like
  • FIND YOUR FLOW ON TECHNICAL TRAILS. WITH ADJUSTABLE GEOMETRY, THE OPTION TO CHANGE REAR WHEEL SIZE, AND A NEW 140MM MAESTRO REAR SUSPENSION SETUP, THIS VERSATILE TRAIL BIKE STEAMROLLS SINGLETRACK WITH CONFIDENCE AND CONTROL.


    KEY PERFORMANCE FACTORS

    Updated suspension

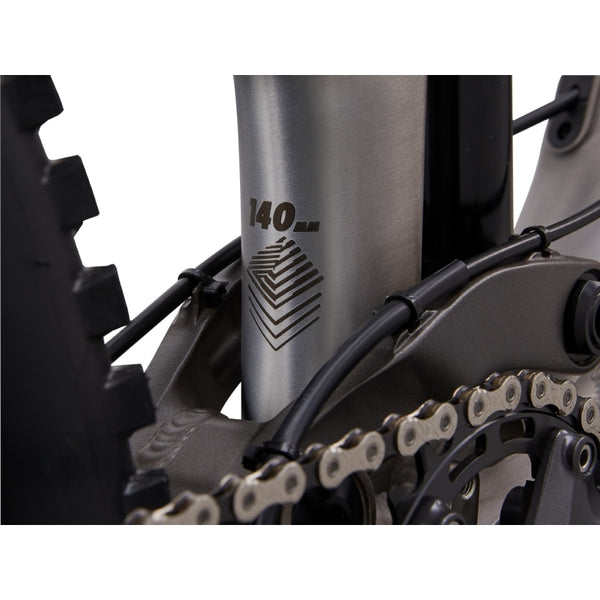

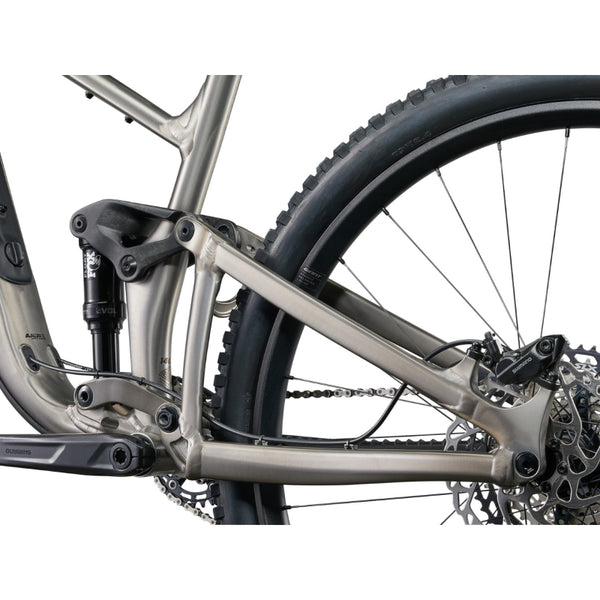

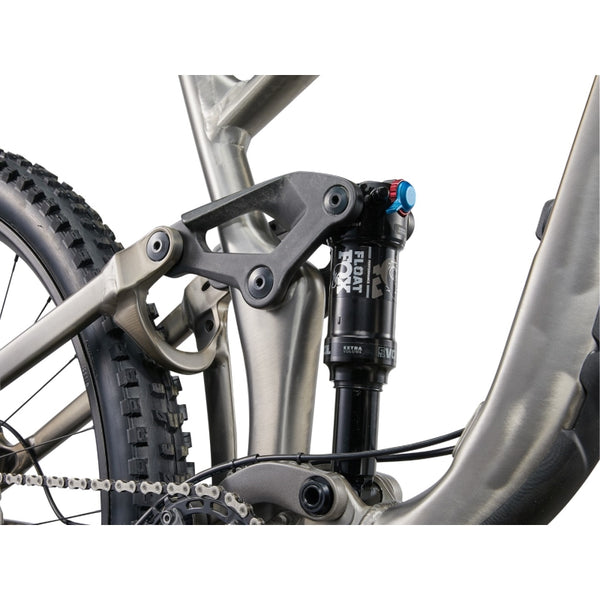

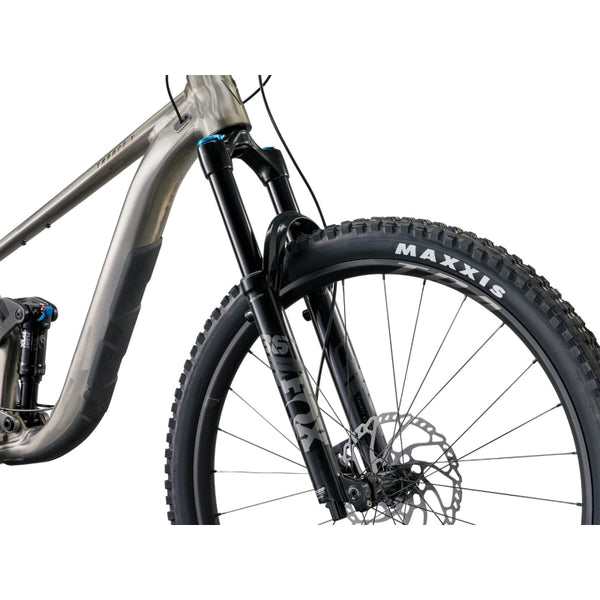

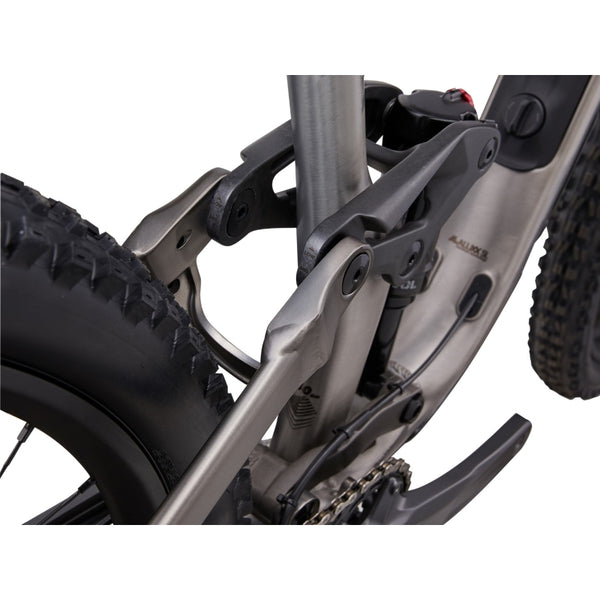

    A new Maestro rear suspension system gives trail riders 140mm of rear travel. The trunnion mount shock and Advanced Forged Composite rocker arm combine for a longer stroke that has a smooth, active feel, plus greater stiffness in the chassis for precision control. The rear suspension is paired with a 150mm travel fork, providing superior confidence and control on technical singletrack.

    Adjustable trail geometry

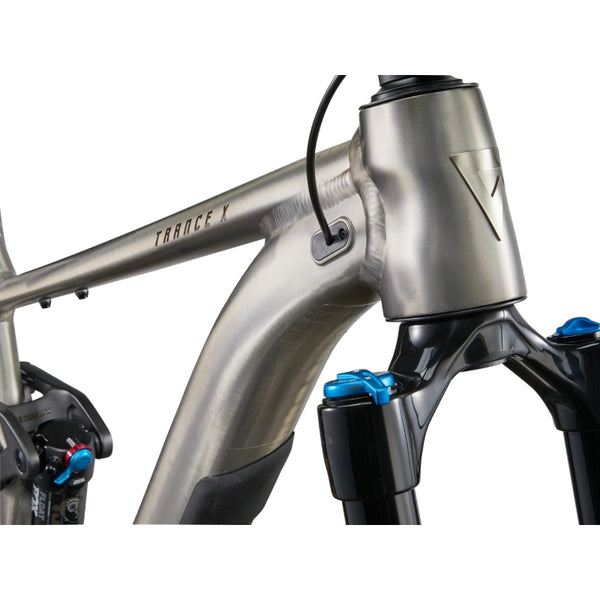

    A three-position Maestro flip chip lets riders dial in frame geometry for their riding style and terrain. The high setting adds more ground clearance, a good option for tight, technical terrain. In the low setting, the head tube gets slacker and the bottom bracket drops, ideal for confident handling at higher speeds. The middle position is neutral. In addition, a new headset flip chip adjusts reach so that riders can easily achieve their preferred positioning.

    Rear wheel options
    All models come with 29-inch front and rear wheels, but the flip chip lets you opt for a mixed wheel setup including a 27.5 rear. The stock 29-inch rear wheel optimizes stability and roll-over capabilities, while a 27.5 delivers a more agile, snappier feel and more saddle-to-tyre clearance in the rear. Some riders favor this 'mullet' setup for riding steep, technical terrain.


    SPEC & GEOMETRY - TRANCE X1
  • TECHS & FEATURES

  • SIZING GUIDE AND GEOMETRY

    Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
    Available sizes may vary from country to country.

    S
    LOW MID HIGH
    M
    LOW MID HIGH
    L
    LOW MID HIGH
    XL
    LOW MID HIGH
    A SEAT TUBE LENGTH (mm)
    400
    425
    450
    475
    A1 SEAT POST INSERTION DEPTH (mm)
    280
    305
    330
    355
    B SEAT TUBE ANGLE
    76.8° 77.2° 77.5°
    76.8° 77.2° 77.5°
    76.8° 77.2° 77.5°
    76.8° 77.2° 77.5°
    C TOP TUBE LENGTH (mm)
    571 570 569
    602 601 600
    624 623 622
    657 656 655
    D HEAD TUBE LENGTH (mm)
    100
    105
    115
    125
    E HEAD TUBE ANGLE
    64.4° 64.8° 65.1°
    64.4° 64.8° 65.1°
    64.4° 64.8° 65.1°
    64.4° 64.8° 65.1°
    F FORK RAKE (mm)
    44
    44
    44
    44
    G TRAIL (mm)
    134.1 131.3 128.4
    134 131.3 128.5
    133.9 131.3 128.5
    133.9 131.3 128.6
    H WHEELBASE (mm)
    1190 1190 1189
    1222 1222 1221
    1246 1246 1245
    1281 1280 1280
    I CHAIN STAY LENGTH (mm)
    440 439 438
    440 439 438
    440 439 438
    440 439 438
    J BOTTOM BRACKET DROP (mm)
    40 35 30
    40 35 30
    40 35 30
    40 35 30
    K STACK (mm)
    617 614 611
    621 619 616
    631 628 625
    640 637 634
    L REACH (mm)
    426 430 434
    456 460 464
    476 480 484
    507 510 514
    M STAND OVER HEIGHT (mm)
    733 737 742
    737 741 746
    754 759 763
    752 757 762
    O STEM LENGTH (mm)
    40
    40
    40
    40
    P CRANK LENGTH (mm)
    165
    170
    170
    170
    Q WHEEL SIZE
    29"
    29"
    29"
    29"
  • Please note that our specifications may be impacted by running substitution changes, we highly recommend confirming the specifications of our products with your local retailer at the time of sale if purchasing in-store. *Recommended Retail Prices are subject to change without notice and may vary from store to store depending on freighting and assembly costs.
