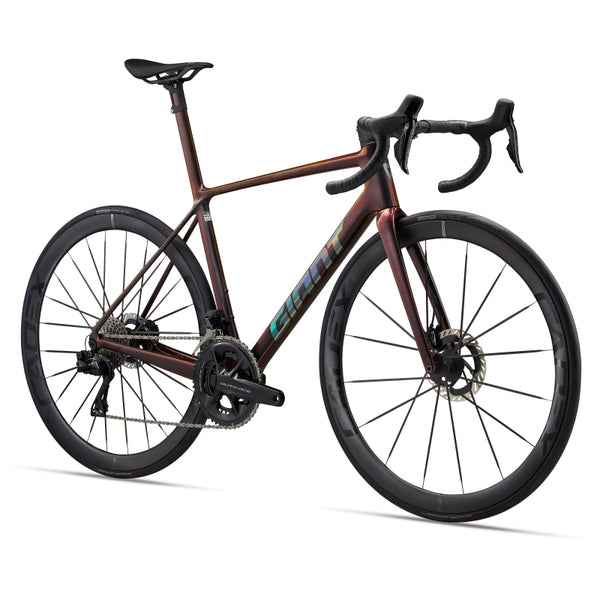

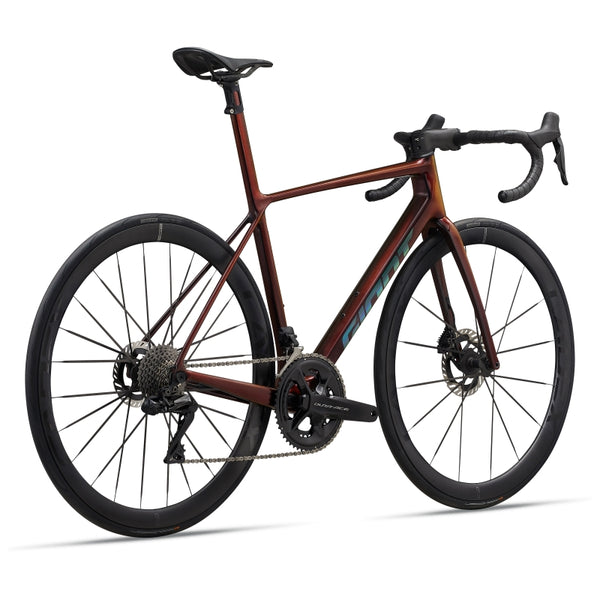

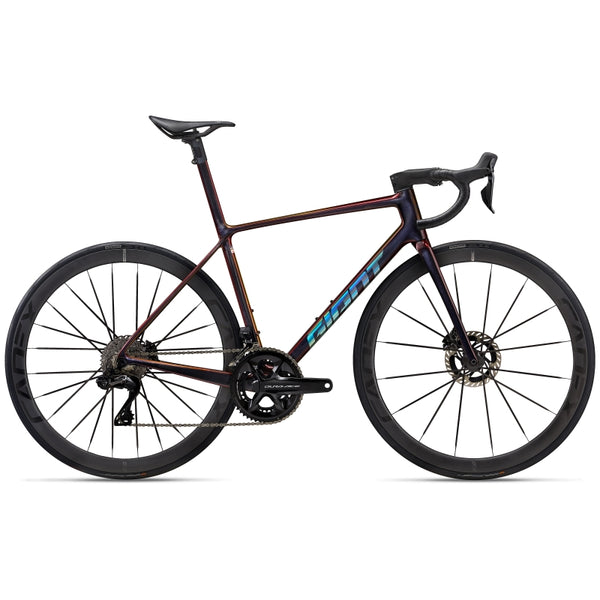

Giant TCR Advanced SL 0 DA

$13,799.00


Colour: Black Lava
Size
Add to Cart
  • techs & features
  • geometry
  • specs
  • similar products
  • you may also like
  • FROM HORS CATEGORIE CLIMBS TO ROLLERS AND FLATS, THIS WORLDTOUR LEVEL RACE BIKE IS THE PRO'S CHOICE FOR ALL-ROUNDER PERFORMANCE. THE ALL-NEW FLAGSHIP TCR USES SYSTEM INTEGRATION AND INNOVATIVE CONSTRUCTION METHODS TO DELIVER A CLEAR ADVANTAGE ON THE ROAD.


    KEY PERFORMANCE FACTORS

    SYSTEM OPTIMIZATION

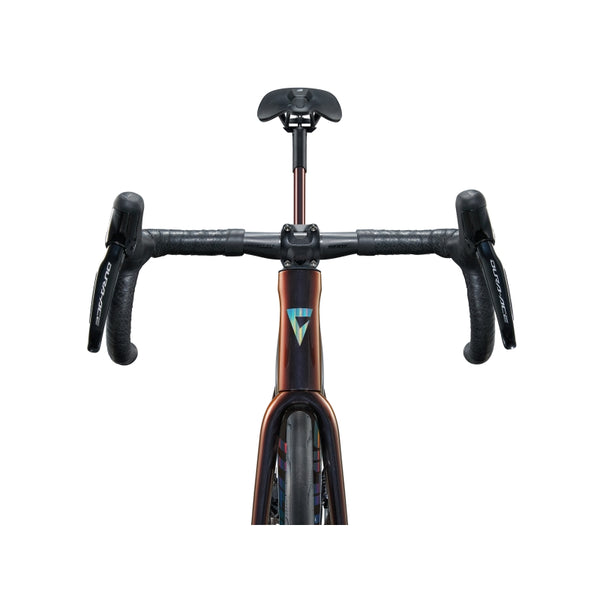

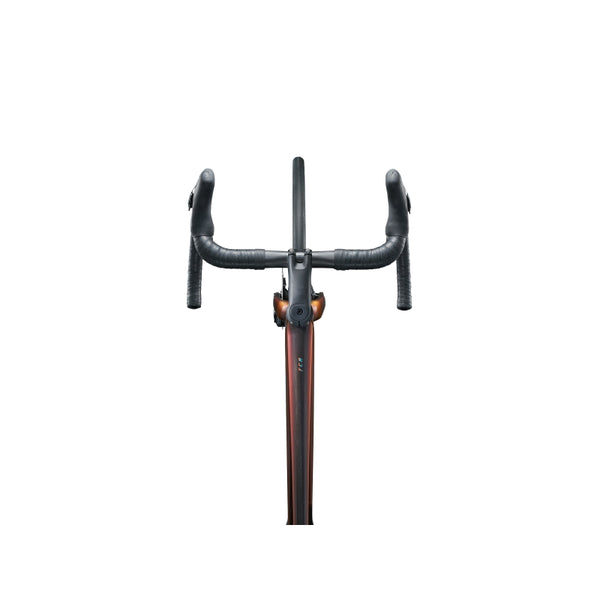

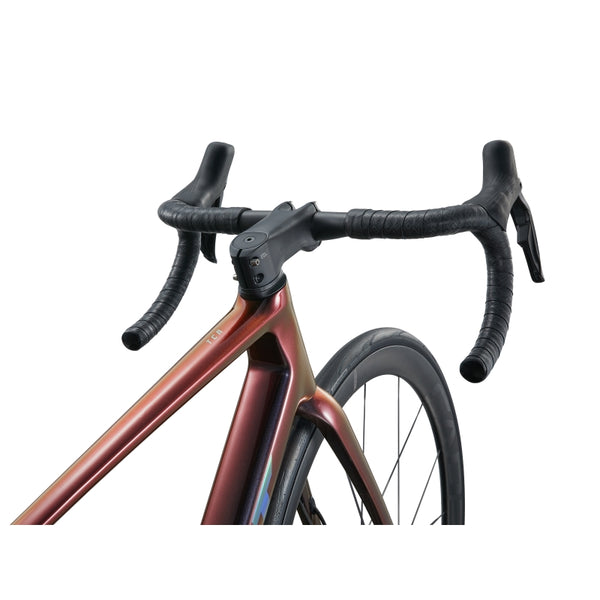

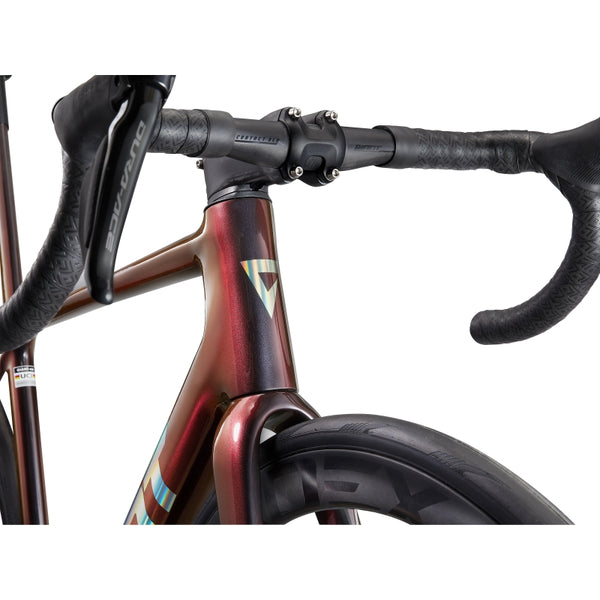

    The frameset, wheels, cockpit and other parts are engineered, developed and tested together to perform best as a system. The all-new OverDrive Aero steerer tube technology is combined with a Contact SLR AeroLight stem and Contact SLR handlebar to incorporate internal cable routing that also integrates the top cap, cables and spacers in a more aerodynamic, user-friendly setup

    WINNING EFFICIENCY

    Featuring a greater stiffness-to-weight ratio than the previous generation, along with new aero tube shaping and a lighter overall weight, this uncompromising race bike delivers explosive acceleration and unyielding pedaling stiffness. The result is race-winning performance in the moments that count.

    INTEGRATED AERODYNAMICS

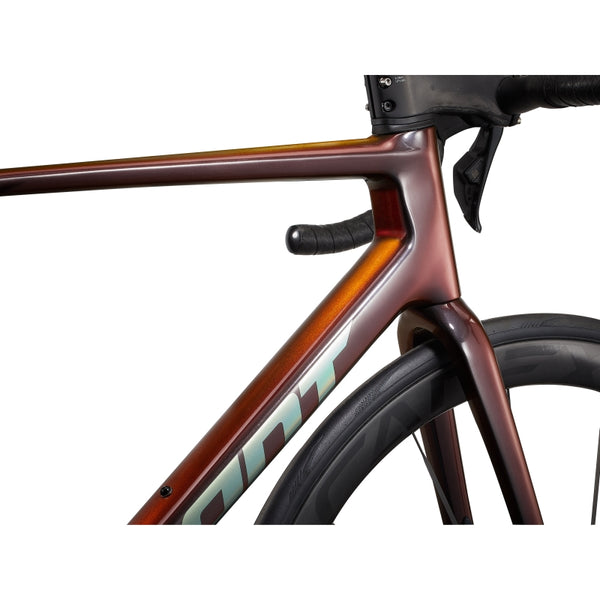

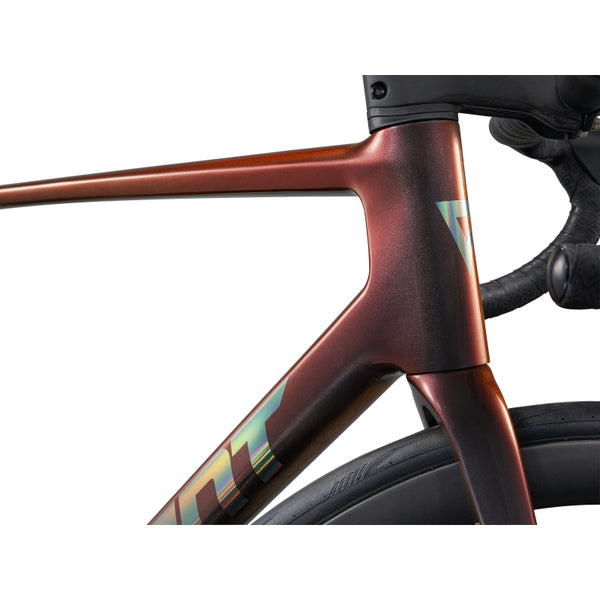

    From the truncated ellipse shape of frameset tubing to a new cockpit design and component integration, it all adds up to a more streamlined profile that helps give the flagship TCR Advanced SL 0 model a 4.19-watt advantage over the previous generation.


    MADE FASTER

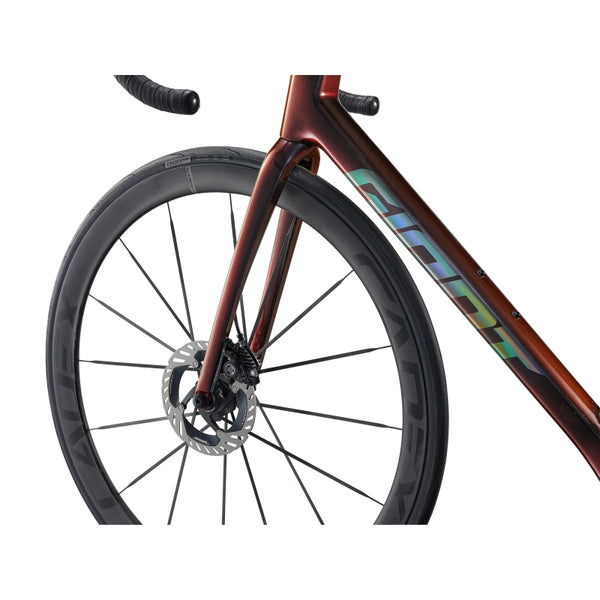

    This pro-level road bike is made for competitive road riders who obsess over performance-from grand tour pros like Simon Yates to everyday riders trying to reach a new level. The flagship TCR model combines its legendary ride quality with new system integration and construction methods to make it more efficient than ever. The down tube is significantly redesigned for improved aerodynamics, and a new integrated cockpit, including the OverDrive Aero steerer tube and Contact SLR AeroLight stem, offers internal cable routing to further minimize drag. From the integrated seatpost to the CADEX WheelSystem with 40mm deep carbon rims, every component is chosen and tested for system optimization.
  • TECHS & FEATURES

  • SIZING GUIDE AND GEOMETRY

    Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
    Available sizes may vary from country to country.

    XS
    S
    M
    ML
    L
    XL
    A SEAT TUBE LENGTH (mm)
    680
    710
    740
    770
    800
    830
    B SEAT TUBE ANGLE
    74.5°
    74.0°
    73.5°
    73.0°
    73.0°
    72.5°
    C TOP TUBE LENGTH (mm)
    520
    535
    550
    565
    580
    600
    D HEAD TUBE LENGTH (mm)
    120
    130
    145
    165
    185
    200
    E HEAD TUBE ANGLE
    71.0°
    72.3°
    73.0°
    73.0°
    73.0°
    73.0°
    F FORK RAKE (mm)
    45
    45
    45
    45
    45
    45
    G TRAIL (mm)
    72
    64
    59
    59
    59
    59
    H WHEELBASE (mm)
    976
    977
    980
    991
    1006
    1020
    I CHAIN STAY LENGTH (mm)
    405
    405
    405
    405
    405
    405
    J BOTTOM BRACKET DROP (mm)
    72
    69.5
    69.5
    67
    67
    67
    K STACK (mm)
    517
    528
    545
    562
    581
    596
    L REACH (mm)
    376
    383
    388
    393
    402
    412
    M STAND OVER HEIGHT (mm)
    703
    722
    743
    771
    798
    822
    O STEM LENGTH (mm)
    80
    90
    100
    110
    110
    120
    P CRANK LENGTH (mm)
    170
    170
    172.5
    172.5
    175
    175
    Q WHEEL SIZE
    700C
    700C
    700C
    700C
    700C
    700C
  • Please note that our specifications may be impacted by running substitution changes, we highly recommend confirming the specifications of our products with your local retailer at the time of sale if purchasing in-store. *Recommended Retail Prices are subject to change without notice and may vary from store to store depending on freighting and assembly costs.
