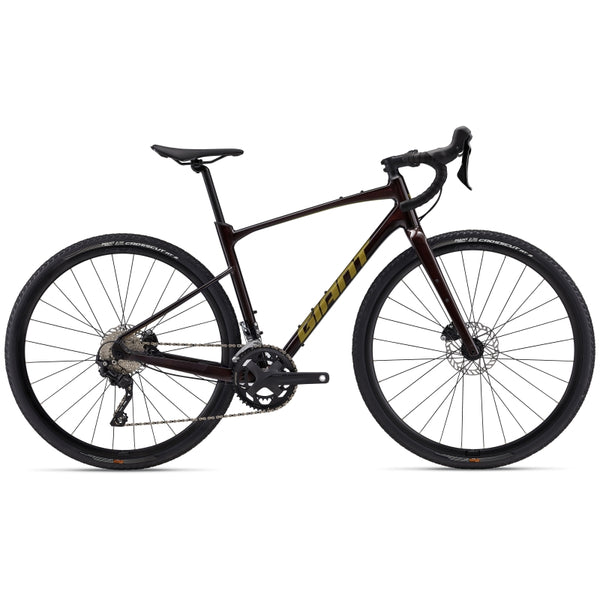

Giant Revolt 1

$1,999.00$2,499.00
Colour: Cordovan
Size
Add to Cart
  • techs & features
  • geometry
  • specs
  • similar products
  • you may also like
  • RIDE ROADS, GRAVEL OR DIRT WITH THIS VERSATILE ALUMINIUM ALL-ROUNDER. A COMPOSITE FORK GIVES IT A SMOOTH RIDE, AND A FLIP CHIP LETS YOU ADJUST WHEELBASE AND TIRE CLEARANCE.


    KEY PERFORMANCE FACTORS

    Confident handling
    Frame is designed with endurance positioning and shorter chain stays for precise handling, agility and control. A longer reach, shorter stem and lower bottom bracket drop improves stability on rugged terrain.

    Tuned compliance
    Dropped seat stays with thin tubing absorb road shocks and vibrations. The D-Fuse handlebar and seat post work as a system to add compliance without sacrificing stiffness while cornering, sprinting or climbing.

    Adaptable to the terrain
    A flip chip on the rear dropout adjusts the wheelbase short for quicker handling and acceleration, or long for improved stability at speed. The long setting allows for larger diameter tyres up to 53mm. You can choose the included D-Fuse seatpost for maximum compliance, or switch to a 30.9mm round or dropper post.

    SPEC & GEOMETRY - REVOLT 1

  • TECHS & FEATURES

    ×

    This Performance level frame material features 6061 alloy with single-butted tubes to produce strong, lightweight framesets for a variety of different bikes and riding styles.

    ×

    D-FUSE TECHNOLOGY

    The D-Fuse seatpost and handlebar were designed to function as a system, absorbing road shocks and vibrations so you can ride further, faster.absorbing road shocks and vibrations so you can ride further, faster.

    READ MORE

    ×

    Giant’s original oversized fork steerer tube technology. Designed to provide precise front-end steering performance, the system’s oversized headset bearings (1 1/4” lower and 1 1/8” upper for road, 1 1/2” lower and 1 1/8” upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.

    ×

    TUBELESS SYSTEM

    Fewer flat tyres. Greater traction. Less rolling resistance and a smoother, faster ride. Giant’s Tubeless System makes it easier than ever to experience all these benefits.

    READ MORE

    ×

    FLIP CHIP - DROPOUT

    Allows riders to quickly adjust the geometry and rear-wheel tyre clearance with eccentric, offset two-position hardware in the rear wheel dropouts.

    READ MORE

  • SIZING GUIDE AND GEOMETRY

    Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
    Available sizes may vary from country to country.

    XS
    SHORT LONG
    S
    SHORT LONG
    M
    SHORT LONG
    ML
    SHORT LONG
    L
    SHORT LONG
    XL
    SHORT LONG
    A SEAT TUBE LENGTH (mm)
    430
    450
    470
    490
    510
    530
    B SEAT TUBE ANGLE
    74.0°
    73.5°
    73.5°
    73.0°
    73.0°
    73.0°
    C TOP TUBE LENGTH (mm)
    540
    550
    560
    575
    585
    600
    D HEAD TUBE LENGTH (mm)
    125
    135
    150
    165
    180
    195
    E HEAD TUBE ANGLE
    70.0°
    71.0°
    71.5°
    72.0°
    72.0°
    72.0°
    F FORK RAKE (mm)
    50
    50
    50
    50
    50
    50
    G TRAIL (mm)
    78 82
    72 75
    68 72
    65 68
    65 68
    65 68
    H WHEELBASE (mm)
    1029 1039
    1025 1035
    1030 1040
    1035 1045
    1045 1055
    1061 1071
    I CHAIN STAY LENGTH (mm)
    430 440
    430 440
    430 440
    430 440
    430 440
    430 440
    J BOTTOM BRACKET DROP (mm)
    80 81
    80 81
    80 81
    80 81
    80 81
    80 81
    K STACK (mm)
    556
    570
    586
    602
    616
    630
    L REACH (mm)
    381
    381
    387
    391
    397
    407
    M STAND OVER HEIGHT (mm)
    717 724
    734 741
    752 759
    769 776
    786 793
    801 810
    O STEM LENGTH (mm)
    50
    60
    70
    80
    80
    90
    P CRANK LENGTH (mm)
    170
    170
    172.5
    172.5
    175
    175
    Q WHEEL SIZE
    700Cx42C
    700Cx42C
    700Cx42C
    700Cx42C
    700Cx42C
    700Cx42C
  • Please note that our specifications may be impacted by running substitution changes, we highly recommend confirming the specifications of our products with your local retailer at the time of sale if purchasing in-store. *Recommended Retail Prices are subject to change without notice and may vary from store to store depending on freighting and assembly costs.
