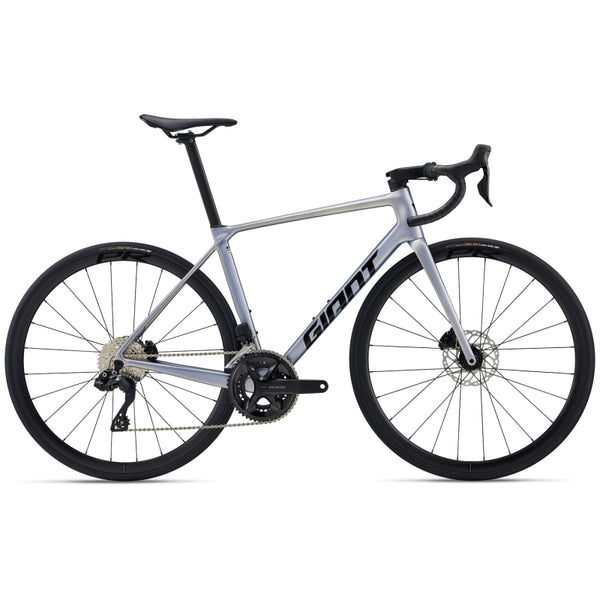

Giant MY26 TCR Advanced 1 Pro Compact

$4,999.00
Colour: Dreamy Blue
Size
Add to Cart
  • techs & features
  • geometry
  • specs
  • similar products
  • you may also like

  • WINNING RACE BIKES HAVE JUST THE RIGHT BALANCE OF LIGHT WEIGHT, SUPERIOR STIFFNESS AND SMOOTH COMPLIANCE ON THE ROAD. TCR ADVANCED DELIVERS ON ALL THREE.


    KEY PERFORMANCE FACTORS

    Class-leading efficiency
    A high stiffness-to-weight ratio combined with strategically placed aero tube shaping results in faster climbing, explosive acceleration and unyielding pedalling stiffness for race-winning performance.

    Advanced aerodynamics
    This is where the TCR's most quantifiable gains can be found compared to previous generation models. Every tube shape was analysed, engineered and tested to create an overall structure with significantly lower drag at a wider range of yaw angles.

    Total control
    A composite fork delivers torsional stiffness for sharp handling and steering precision, while a Giant WheelSystem with tubeless technology allows you to run lower tyre pressures for increased grip and a reduced risk of punctures.


    SPEC & GEOMETRY - 2026 TCR ADVANCED 1 PC

  • TECHS & FEATURES

    ×

    ADVANCED COMPOSITE TECHNOLOGY

    Giant’s High Performance Grade raw carbon material is used to produce this custom frame material in our own composite factory with a high stiffness-to-weight ratio. The front triangle of these framesets is assembled and moulded as one continuous piece in a proprietary manufacturing process called Modified Monocoque Construction.

    ×

    COMPACT ROAD DESIGN

    Introduced by Giant with the professional Team ONCE in the 1990s, Compact Road revolutionized the look and feel of high-performance road bikes forever. A downward sloping toptube (from the headtube to the seattube) creates smaller front and rear triangles for a lighter, stiffer bike. It also makes it easier for riders of all sizes to have a perfect fit.

    ×

    TUBELESS SYSTEM

    Fewer flat tyres. Greater traction. Less rolling resistance and a smoother, faster ride. Giant’s Tubeless System makes it easier than ever to experience all these benefits.

    READ MORE

    ×

    POWERCORE

    A massively oversized bottom-bracket/chainstay area features a fully integrated, 86-millimetre wide bottom-bracket design (92-millimetre wide for off-road bikes). Asymmetric chainstays provide additional stiffness on the driveside and stability on the non-driveside.

  • SIZING GUIDE AND GEOMETRY

    Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
    Available sizes may vary from country to country.

    XS
    S
    M
    ML
    L
    XL
    A SEAT TUBE LENGTH (mm)
    425
    445
    470
    500
    530
    560
    B SEAT TUBE ANGLE
    74.5°
    74.0°
    73.5°
    73.0°
    73.0°
    72.5°
    C TOP TUBE LENGTH (mm)
    520
    535
    550
    565
    580
    600
    D HEAD TUBE LENGTH (mm)
    120
    130
    145
    165
    185
    200
    E HEAD TUBE ANGLE
    71.0°
    72.3°
    73.0°
    73.0°
    73.0°
    73.0°
    F FORK RAKE (mm)
    45
    45
    45
    45
    45
    45
    G TRAIL (mm)
    72.1
    64
    59.2
    59.2
    59.2
    59.2
    H WHEELBASE (mm)
    976
    977
    980
    991
    1006
    1020
    I CHAIN STAY LENGTH (mm)
    405
    405
    405
    405
    405
    405
    J BOTTOM BRACKET DROP (mm)
    72
    70
    70
    67
    67
    67
    K STACK (mm)
    517
    528
    545
    562
    581
    596
    L REACH (mm)
    376
    383
    388
    393
    402
    412
    M STAND OVER HEIGHT (mm)
    719
    734
    752
    768
    786
    803
    O STEM LENGTH (mm)
    80
    90
    100
    110
    110
    120
    P CRANK LENGTH (mm)
    165
    165
    170
    170
    172.5
    172.5
  • Please note that our specifications may be impacted by running substitution changes, we highly recommend confirming the specifications of our products with your local retailer at the time of sale if purchasing in-store. *Recommended Retail Prices are subject to change without notice and may vary from store to store depending on freighting and assembly costs.
