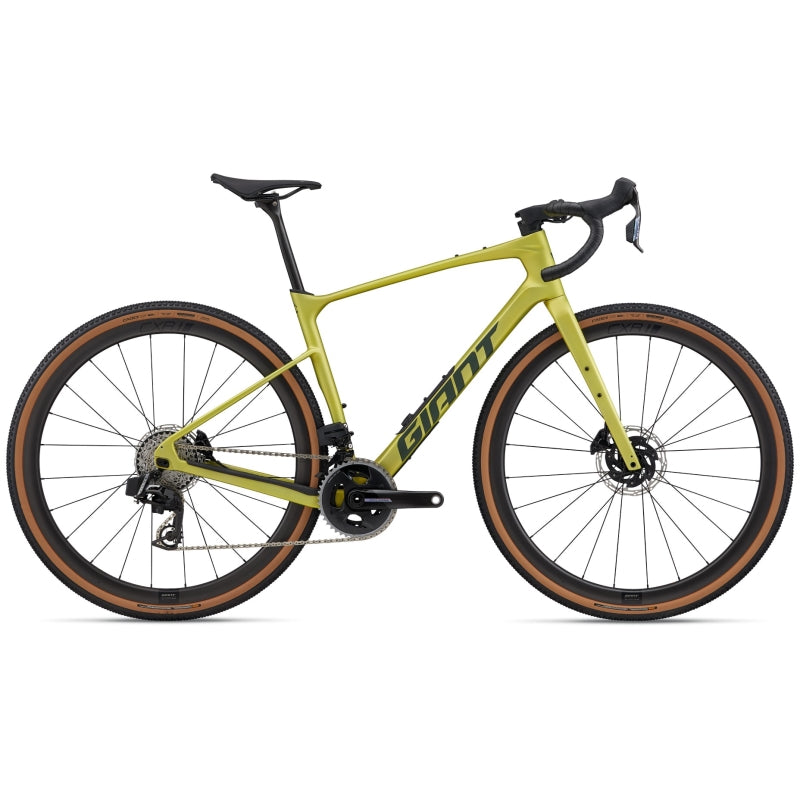

Giant MY26 Revolt Advanced Pro 0

$8,799.00
Colour: Cyber Lime
Size
Add to Cart
  • techs & features
  • geometry
  • specs
  • similar products
  • you may also like

  • GRAVEL CRUSHER.

    Now lighter, smoother and more adaptable to variable conditions and terrain, this reengineered composite gravel bike combines ultra-efficient performance with next-level handling and control.


    KEY PERFORMANCE FACTORS

    FAST AND VERSATILE
    Lightweight Advanced-grade composite frame and Advanced SL composite fork combine for race-winning efficiency and smooth control. A two-position flip chip on the rear dropout lets you adjust the wheelbase: short for quicker handling, or long for added tyre clearance (up to 53mm) and improved stability. You can use the included D-Fuse seatpost for more flex and compliance, or switch to a traditional 30.9mm round seatpost or dropper post.

    TUNED COMPLIANCE
    Dropped seatstays with small-diameter tubing absorb road shocks and vibrations on all types of gravel. The Contact SLR XR D-Fuse carbon handlebar and D-Fuse SLR seatpost help smooth out rough tracks, improving control and minimising fatigue over long distances.

    SMART INTEGRATION
    Internally routed cables offer clean, uncluttered cockpit aesthetics and improved aero performance. An easily accessed storage compartment inside the top tube lets you securely carry tools, snacks and other essentials. And additional integrated mounts on the top tube, fork and rear dropout make it easy to modify with additional packs or fenders. All-new, molded, chainstay and down tube protection help defend the frame against impacts and quell noise.


    SPEC & GEOMETRY - MY26 REVOLT ADVANCED PRO 0

  • TECHS & FEATURES

    ×

    TUBELESS SYSTEM

    Fewer flat tyres. Greater traction. Less rolling resistance and a smoother, faster ride. Giant’s Tubeless System makes it easier than ever to experience all these benefits.

    READ MORE

    ×

    Giant’s original oversized fork steerer tube technology. Designed to provide precise front-end steering performance, the system’s oversized headset bearings (1 1/4” lower and 1 1/8” upper for road, 1 1/2” lower and 1 1/8” upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.

    ×

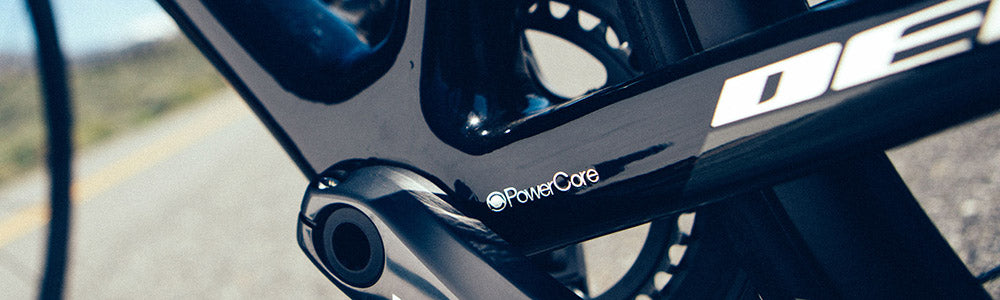

    POWERCORE

    A massively oversized bottom-bracket/chainstay area features a fully integrated, 86-millimetre wide bottom-bracket design (92-millimetre wide for off-road bikes). Asymmetric chainstays provide additional stiffness on the driveside and stability on the non-driveside.

    ×

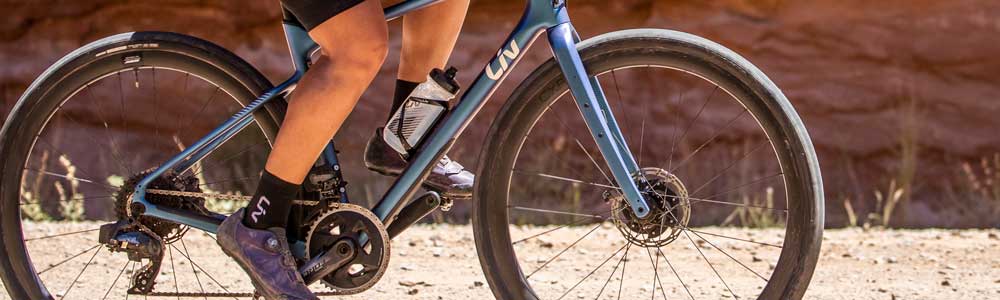

    MEGADRIVE

    A massive rectangular downtube and oversized toptube work in unison to provide superior front end lateral and torsional steering precision. The precisely engineered, rectangular shaped downtube yields unprecedented steering and pedaling stiffness.

    ×

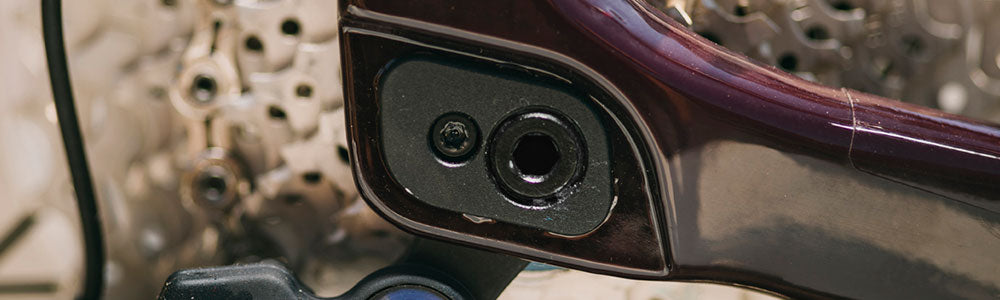

    FLIP CHIP - DROPOUT

    Allows riders to quickly adjust the geometry and rear-wheel tyre clearance with eccentric, offset two-position hardware in the rear wheel dropouts.

    READ MORE

    ×

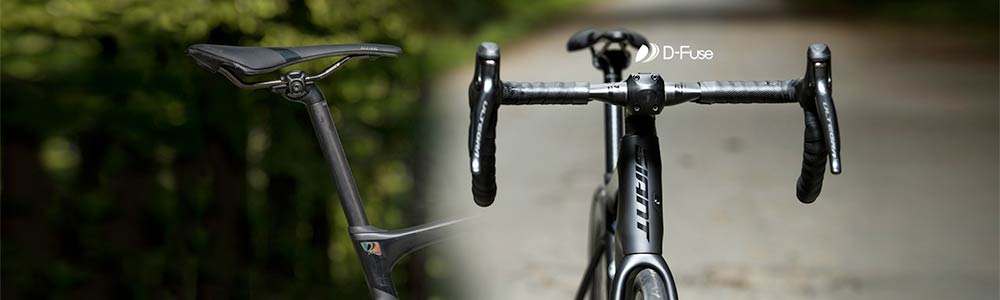

    D-FUSE TECHNOLOGY

    The D-Fuse seatpost and handlebar were designed to function as a system, absorbing road shocks and vibrations so you can ride further, faster.absorbing road shocks and vibrations so you can ride further, faster.

    READ MORE

    ×

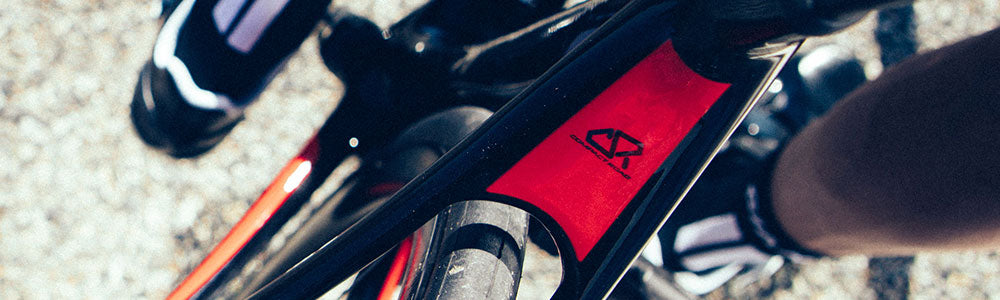

    COMPACT ROAD DESIGN

    Introduced by Giant with the professional Team ONCE in the 1990s, Compact Road revolutionized the look and feel of high-performance road bikes forever. A downward sloping toptube (from the headtube to the seattube) creates smaller front and rear triangles for a lighter, stiffer bike. It also makes it easier for riders of all sizes to have a perfect fit.

    ×

    ADVANCED COMPOSITE TECHNOLOGY

    Giant’s High Performance Grade raw carbon material is used to produce this custom frame material in our own composite factory with a high stiffness-to-weight ratio. The front triangle of these framesets is assembled and moulded as one continuous piece in a proprietary manufacturing process called Modified Monocoque Construction.

  • SIZING GUIDE AND GEOMETRY

    Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
    Available sizes may vary from country to country.

    XS
    SHORT LONG
    S
    SHORT LONG
    M
    SHORT LONG
    ML
    SHORT LONG
    L
    SHORT LONG
    XL
    SHORT LONG
    A SEAT TUBE LENGTH (mm)
    430
    450
    470
    490
    510
    530
    B SEAT TUBE ANGLE
    74.0°
    73.5°
    73.5°
    73.0°
    73.0°
    73.0°
    C TOP TUBE LENGTH (mm)
    540
    550
    560
    575
    585
    600
    D HEAD TUBE LENGTH (mm)
    125
    135
    150
    165
    180
    195
    E HEAD TUBE ANGLE
    70.0°
    71.0°
    71.5°
    72.0°
    72.0°
    72.0°
    F FORK RAKE (mm)
    50
    50
    50
    50
    50
    50
    G TRAIL (mm)
    78 82
    72 75
    68 72
    65 68
    65 68
    65 68
    H WHEELBASE (mm)
    1024 1034
    1020 1030
    1026 1036
    1031 1041
    1041 1051
    1056 1066
    I CHAIN STAY LENGTH (mm)
    425 435
    425 435
    425 435
    425 435
    425 435
    425 435
    J BOTTOM BRACKET DROP (mm)
    80 81
    80 81
    80 81
    80 81
    80 81
    80 81
    K STACK (mm)
    556
    570
    586
    602
    616
    630
    L REACH (mm)
    381
    381
    387
    391
    397
    407
    M STAND OVER HEIGHT (mm)
    724 731
    740 747
    757 764
    774 780
    791 797
    807 814
    O STEM LENGTH (mm)
    50
    60
    70
    80
    80
    90
    P CRANK LENGTH (mm)
    170
    170
    172.5
    172.5
    175
    175
  • Please note that our specifications may be impacted by running substitution changes, we highly recommend confirming the specifications of our products with your local retailer at the time of sale if purchasing in-store. *Recommended Retail Prices are subject to change without notice and may vary from store to store depending on freighting and assembly costs.
