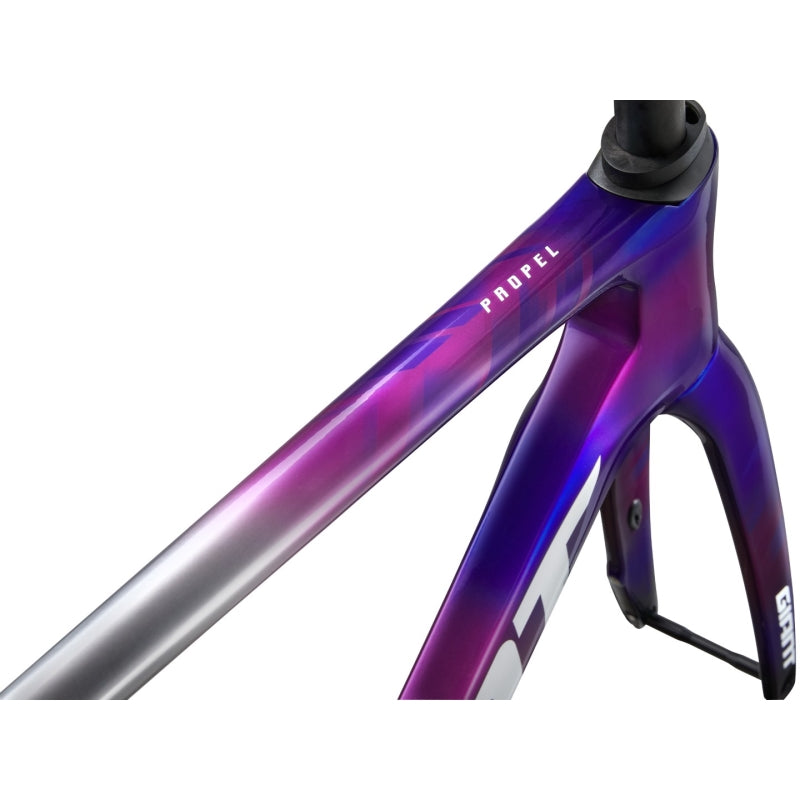

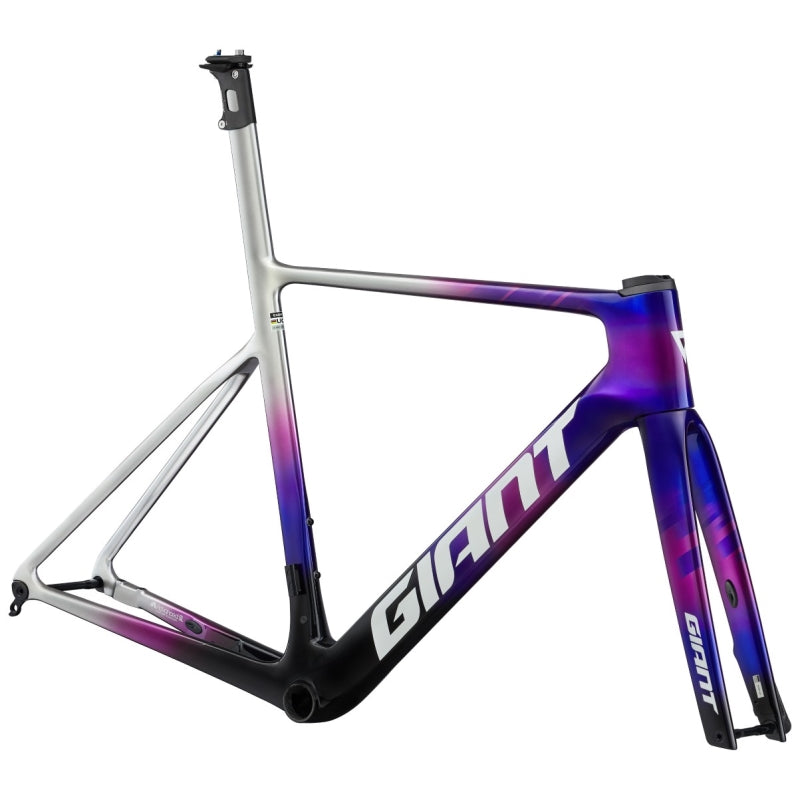

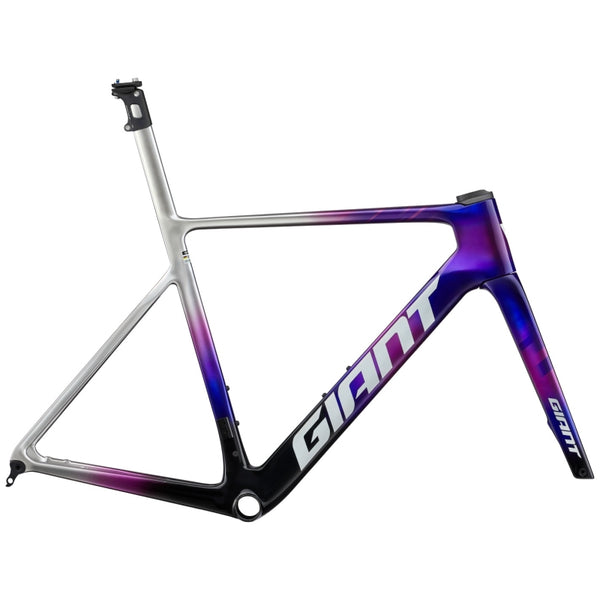

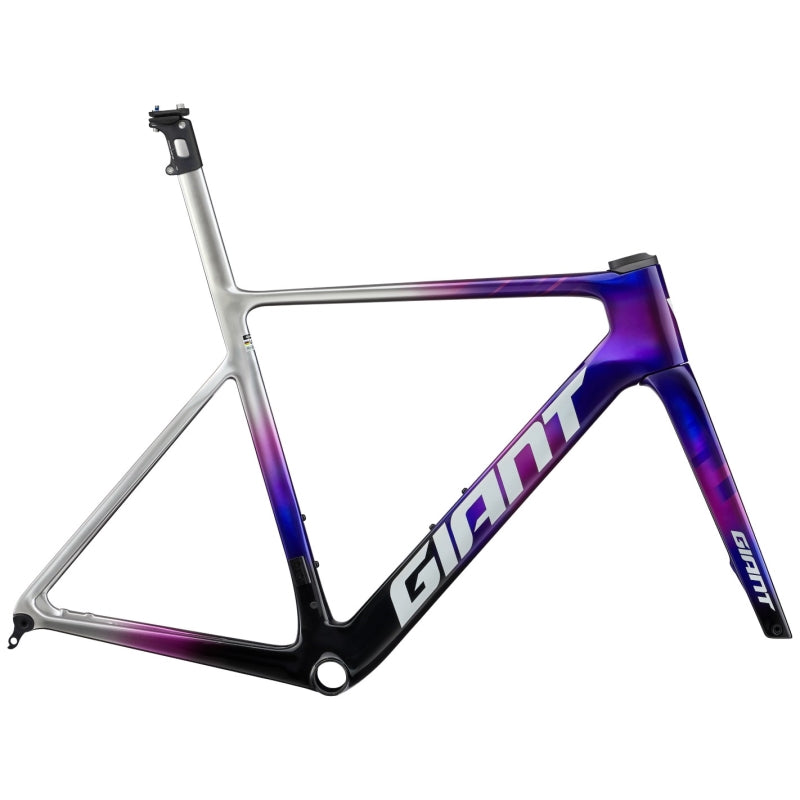

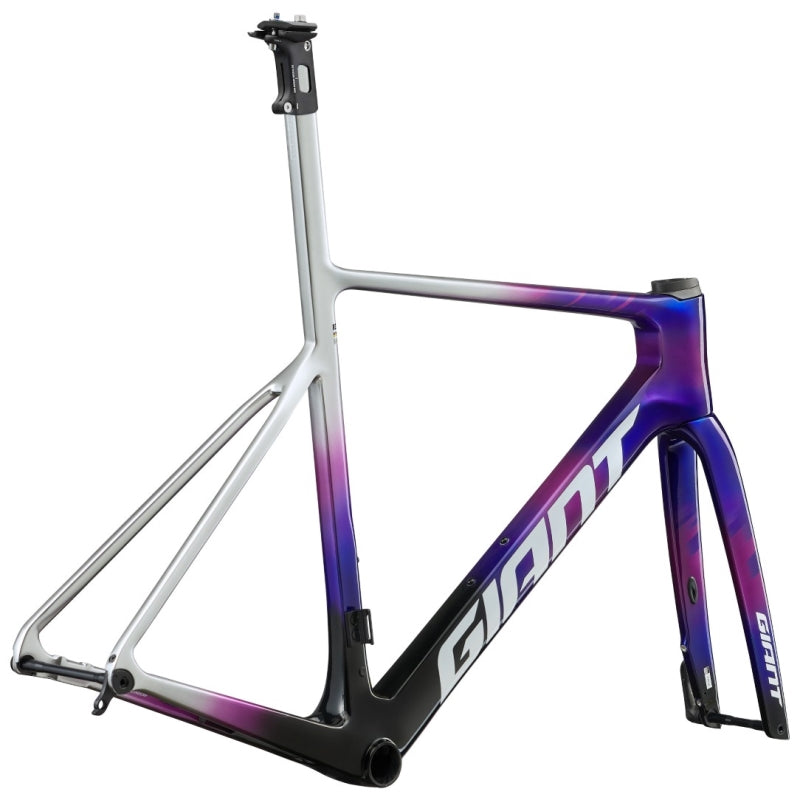

Giant MY26 Propel Advanced SL Team Frameset

$5,799.00
Colour: Purple Storm
Size
  • techs & features
  • geometry
  • specs
  • similar products
  • you may also like

  • UNLEASH YOUR SPRINT WITH 200 METRES TO GO. CLOSE A GAP, CHASE BACK, LAUNCH A SOLO ATTACK. THIS NEW AERO ROAD MACHINE IS MADE FOR THE MOMENTS THAT COUNT. MORE AERO, MORE ADJUSTABLE, MORE WAYS TO WIN.



    KEY PERFORMANCE FACTORS

    Integrated aerodynamics
    AeroSystem Shaping, a result of CFD analysis and dynamic wind-tunnel testing, optimises aerodynamic performance at every yaw angle. The truncated ellipse airfoil tube shapes produces outstanding overall aero performance.

    Easier adjustability
    All-new cable routing through the handlebar and frame makes it quicker and easier to adjust or change cockpit components and fine-tune performance and riding position.

    Race-winning efficiency
    Advanced SL-grade composite frameset features Giant's pro-level composite materials and manufacturing processes. The result is 225 grams of weight savings compared to the previous generation and an even greater stiffness-to-weight advantage.

    SPECS & GEOMETRY - MY26 PROPEL ADVANCED SL TEAM FRAMESET

  • TECHS & FEATURES

    ×

    ADVANCED COMPOSITE SL TECHNOLOGY

    Giant’s Professional Grade raw carbon material is woven in our own composite factory using our most advanced engineering and construction methods including: Continuous Fibre Technology to add strength while reducing weight; Carbon Nanotube Technology resin to improve impact resistance; and Fusion Process for lighter, stronger frame junctions.

    ×

    AEROSYSTEM SHAPING TECHNOLOGY

    Through CFD (Computational Fluid Dynamics) and wind-tunnel data, engineers optimise each tube shape to deliver superior aerodynamic performance.

    ×

    OVERDRIVE AERO

    Found inside the head tube of the all-new Propel range, the D-shaped fork steerer tube and corresponding spacers provide an extremely aerodynamic, easier to service system of internally routed brake and derailleur cables.

    ×

    INTEGRATED SEATPOST

    Designed as a key performance factor in the overall frameset, the integrated seatpost saves up to 45 grams compared to standard composite posts, while improving aerodynamics and adding road-smoothing compliance.

  • SIZING GUIDE AND GEOMETRY

    Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
    Available sizes may vary from country to country.

    XS
    S
    M
    ML
    L
    A SEAT TUBE LENGTH (mm)
    680
    710
    740
    770
    800
    B SEAT TUBE ANGLE
    74.5°
    74.0°
    73.5°
    73.0°
    73.0°
    C TOP TUBE LENGTH (mm)
    520
    535
    550
    565
    580
    D HEAD TUBE LENGTH (mm)
    120
    130
    145
    165
    185
    E HEAD TUBE ANGLE
    71.0°
    72.3°
    73.0°
    73.0°
    73.0°
    F FORK RAKE (mm)
    45
    45
    45
    45
    45
    G TRAIL (mm)
    70.5
    62.5
    57.8
    57.8
    57.8
    H WHEELBASE (mm)
    976
    977
    980
    991
    1006
    I CHAIN STAY LENGTH (mm)
    405
    405
    405
    405
    405
    J BOTTOM BRACKET DROP (mm)
    72
    70
    70
    67
    67
    K STACK (mm)
    517
    528
    545
    562
    581
    L REACH (mm)
    376
    383
    388
    393
    402
    M STAND OVER HEIGHT (mm)
    734
    755
    775
    794
    821
    O STEM LENGTH (mm)
    80
    90
    100
    110
    110
    P CRANK LENGTH (mm)
    170
    170
    172.5
    172.5
    175
  • Please note that our specifications may be impacted by running substitution changes, we highly recommend confirming the specifications of our products with your local retailer at the time of sale if purchasing in-store. *Recommended Retail Prices are subject to change without notice and may vary from store to store depending on freighting and assembly costs.
