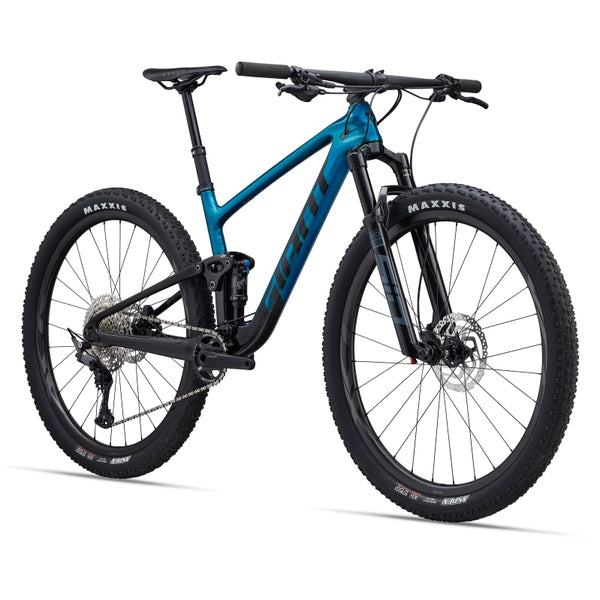

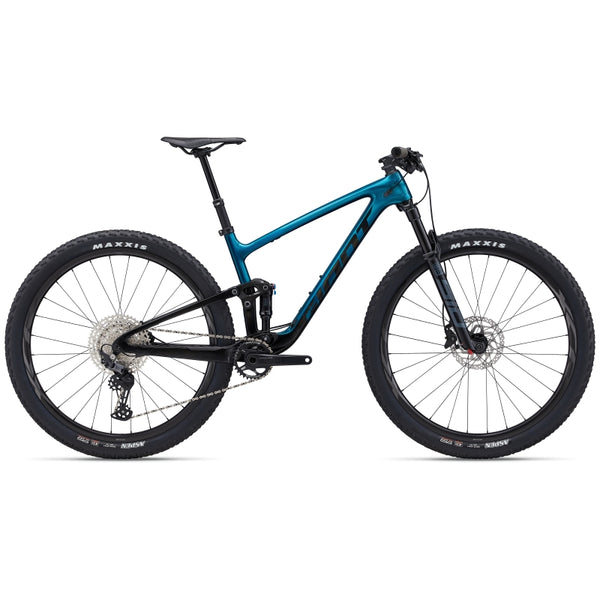

BUILT FOR MODERN XC RACING, THIS FULL-COMPOSITE FLYER TACKLES STEEP SINGLETRACK CLIMBS AND TECHNICAL DESCENTS WITH SPEED AND CONTROL. WITH FLEXPOINT PRO REAR SUSPENSION AND RACE-READY GEOMETRY, IT PUTS YOU AT THE FRONT OF THE PACK.
KEY PERFORMANCE FACTORS
Advanced composite frameset is 241g lighter than previous generation. The bottom bracket area is stiffer for faster acceleration, and a steeper seat tube puts the rider in an efficient climbing position.
FlexPoint Pro suspension delivers 100mm of smooth, active rear travel. The frameset features modern XC geometry including a slacker 67.5-degree head tube and 110mm suspension fork for technical descents.
29er stability and speed
Frame geometry and suspension are optimised for fast and stable 29-inch wheels. A longer reach and modified cockpit including a 35mm composite handlebar and alloy stem further boost balance and stability on XC terrain.
SPEC & GEOMETRY - ANTHEM ADVANCED PRO 29 3
TECHS & FEATURES×××××
SIZING GUIDE AND GEOMETRY
Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.SMLXLA SEAT TUBE LENGTH (mm)390420465495A1 SEAT POST INSERTION DEPTH (mm)185225260290B SEAT TUBE ANGLE75.5°75.5°75.5°75.5°C TOP TUBE LENGTH (mm)572604626653D HEAD TUBE LENGTH (mm)9095105115E HEAD TUBE ANGLE67.5°67.5°67.5°°67.5°F FORK RAKE (mm)44444444G TRAIL (mm)109109109109H WHEELBASE (mm)1127115911831212I CHAIN STAY LENGTH (mm)435435435435J BOTTOM BRACKET DROP (mm)42424242K STACK (mm)589593603612L REACH (mm)420450470495M STAND OVER HEIGHT (mm)745750777800O STEM LENGTH (mm)60707070P CRANK LENGTH (mm)170175175175Q WHEEL SIZE29"29"29"29"
Please note that our specifications may be impacted by running substitution changes, we highly recommend confirming the specifications of our products with your local retailer at the time of sale if purchasing in-store. *Recommended Retail Prices are subject to change without notice and may vary from store to store depending on freighting and assembly costs.
