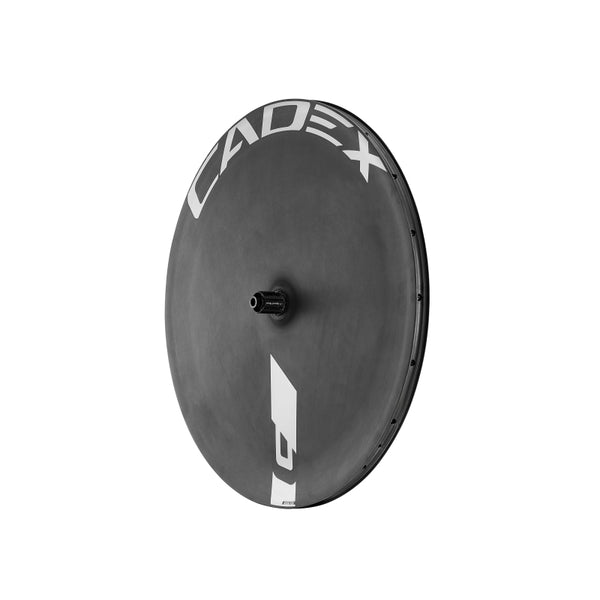

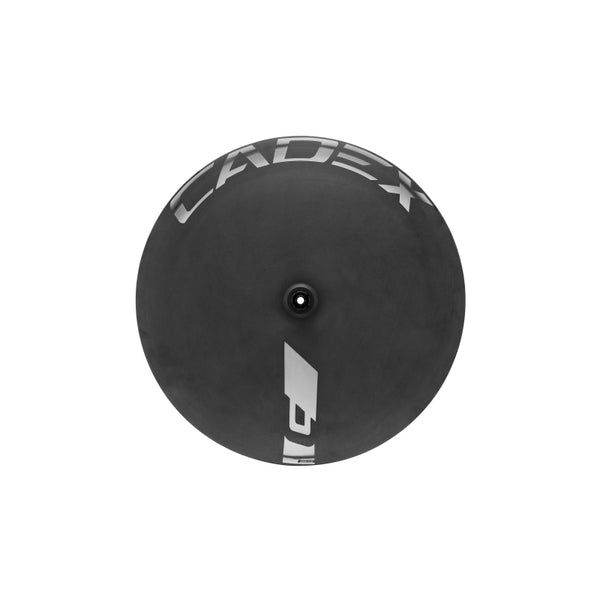

Cadex Max Aero Disc Tubeless Disc Brake Rear Wheel

CRUSH THE CLOCK

Weighing only 1000g, the Max Aero Disc integrates ultralight carbon spokes with thin carbon hub flanges and lightweight hookless rims, all concealed beneath sleek ultrathin CADEX 1K carbon weave aero covers. This design, which still allows the spokes to be independently tensioned, delivers unmatched aerodynamic efficiency and control. Race-tested by Team Jayco AlUla and Liv Jayco AlUla road pros and Ironman World Champions, it's the ultimate aero WheelSystem to help you shave seconds and aim for PRs in the most challenging TTs and triathlons.


FEATURES

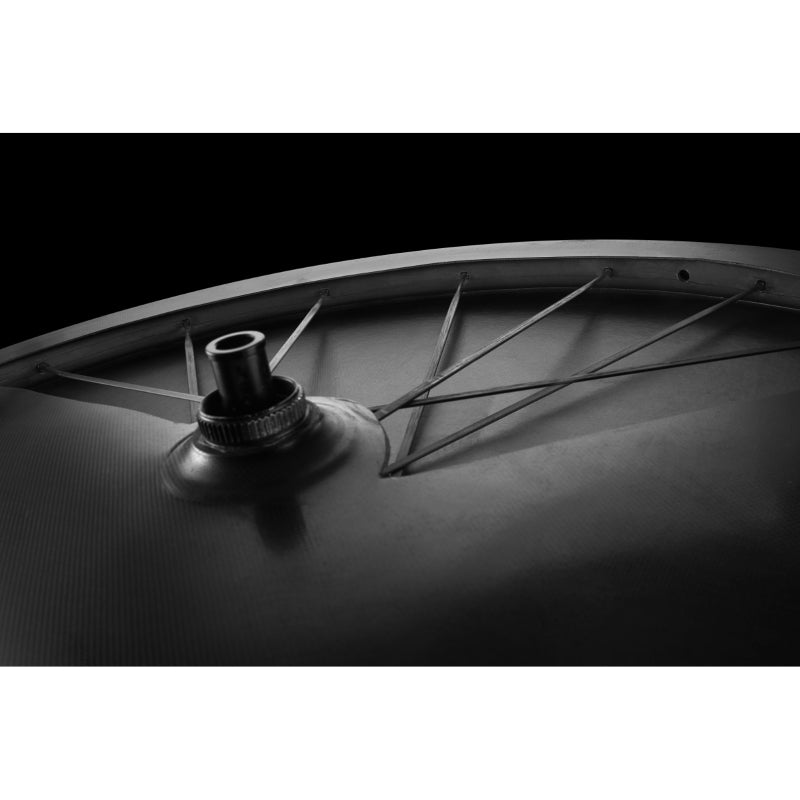

Integrated Max structure, featuring CADEX Aero Carbon spokes joined to a thin carbon hub flange and concealed beneath ultralight 1K carbon weave disc covers, enhances both lateral and torsional stiffness, while keeping the total weight to just 1000g.

High-tensile-strength CADEX Aero Carbon spokes with independent internal spoke tension adjustment reduce lateral flex, enabling more efficient acceleration and climbing.

Dynamic Balanced Lacing technology positions integrated spokes at a wider bracing angle, stabilizing tension under pedaling force and increasing efficiency.

22.4mm inner rim width, combined with a continuous carbon fiber structure, delivers superior grip, added sidewall support, and exceptional cornering stability.

3mm rim wall width provides better tire support during cornering, improves air transition from the tire sidewall to the wheel for optimized aerodynamics, and increases impact resistance.

Wider external dimensions of the rim shape provide maximum aerodynamic advantage in variable wind conditions.

Precision-machined CADEX R3-C40 aero hub reduces bearing load, while CADEX ceramic bearings generate 1.5 times less friction than steel bearings for improved efficiency.


TECHNOLOGIES

CADEX 1K Carbon Weave
A premium carbon fiber fabric with bundles of 1,000 filaments woven in two directions providing a smoother finish and lighter weight.

Aero Carbon Spokes
High tensile-strength CADEX aero carbon spokes minimise lateral flex for more efficient acceleration and climbing and feature a purpose designed aero shape offering excellent aerodynamic characteristics as well as superior stability in shifting winds, all at the lightest weight possible.

CADEX Ceramic Bearings
Durable, ultra-hard ceramic bearings further increase hub rolling efficiency with lower rolling resistance and 1.5x smoother action than steel bearings.
