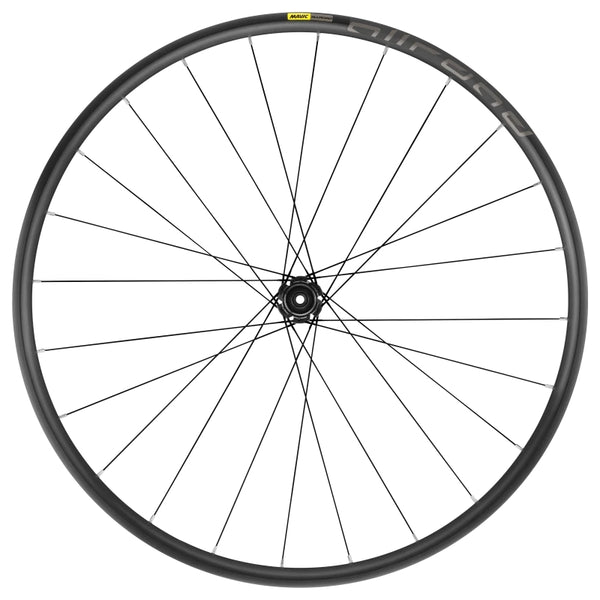

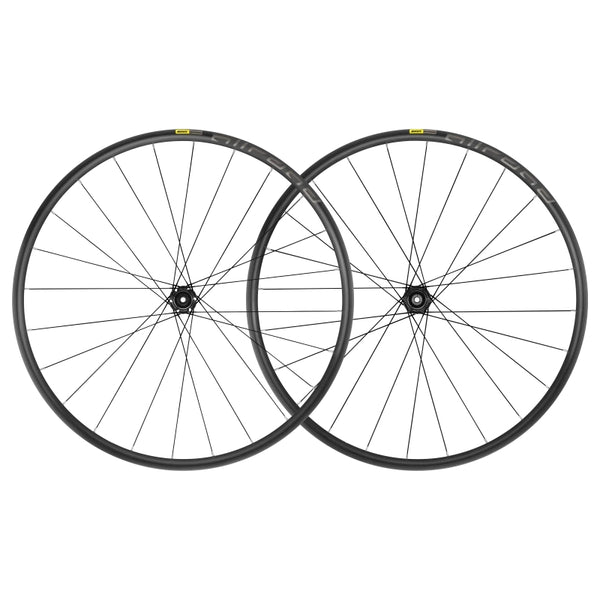

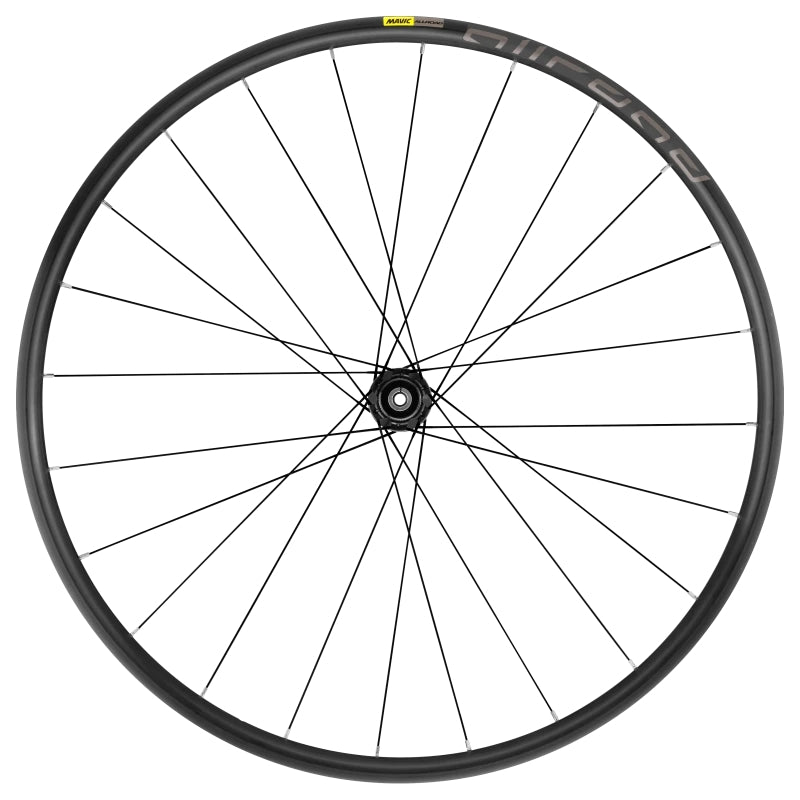

Mavic Allroad Disc Clincher Wheel Set

THIS DEPENDABLE UST ROAD WHEEL GIVES YOU THE CONFIDENCE YOU NEED TO TACKLE RUGGED, ADVENTUROUS ROADS WITH SMOOTH CONTROL


With a wide 23mm rim profile that's optimized for high-volume tires, this UST Road Tubeless wheel system is built for adventure.

Perfect for riding on rough roads, gravel or dirt, it gives you the smooth-riding performance of tubeless tires and makes it easy to set them up without any hassles. Low rolling resistance and a reduced risk of punctures add up to a better overall riding experience, especially on rugged terrain.

The wheels are engineered for the unique demands of disc brakes, built up with 24 straight-pull spokes, which are stronger than J-bend spokes. So wherever the road goes, and however rough it gets, you're ready to keep things rolling.


FEATURES

Purpose-built for riding rough roads, gravel or dirt.
22mm wide rim takes tire up to 62mm.
UST Road Tubeless technology improves comfort and rolling resistance, and reduces the risk of punctures.
Compatible with all standard retention systems.

Proven performance and reliability at an attainable cost.
High-quality QRM cartridge bearings.
Disc-brake-specific, sleeved-style rim technology.
Straight-pull round spokes, which are stronger than J-bend spokes.

Rolling efficiency and nimble ride quality
Sleeve joint rim minimizes weight.
Consistent and stable spoke lacing.
Low-friction hubs.


SPECIFICATIONS

WEIGHT (MANUFACTURER)

Weight Pair: 1890 g
Weight Front: 870 g
Weight Rear: 1020 g


RIMS

Material: S6000 Aluminum
Height: 22 mm
Joint: sleeved
Internal width: 23 mm
Drilling: traditional (front/rear 24 holes)
Braking: disc
ETRTO size: 622x23TC
Tire: Tubetype or UST Tubeless Ready with Mavic Tubeless Tape


SPOKES

Material: steel
Shape: straight, round (front and rear)
Nipples: steel, ABS, incolor
Lacing: crossed 2 (front and rear)


HUBS

Body material: aluminium
Disc standard: 6 Bolts or Center Lock
Axle material: aluminum
Axle size: front 12x100 / rear 12x142 - Convertible to quick release with adapters (not included)
Freewheel technology: Instant Drive 360
Freewheel: Shimano HG road
Bearing technology: QRM automatic setting - sealed cartridge


COMPATIBILITY

Freewheel body: convertible SRAM XD road (kit V2580101 sold separately)
Freewheel body: convertible SHIMANO HG light road (kit V3850101 sold separately)
Freewheel body: convertible SHIMANO MS (kit V3990101 sold separately)
Freewheel body: convertible CAMPAGNOLO ED (kit V3440101 sold separately)
Freewheel body: convertible CAMPAGNOLO N3W (kit V4270101 sold separately)
Rear axle adapters: 12x142 convertible to 12x135 (kit V2510901 sold separately)
Front axle adapters: 12x100 convertible to 9x100 (kit V2680301 included)
Rear axle adapters: 12x142 convertible to 9x135 (kit V2510801 included)


INTENDED USE

Minimum tyre size: width 28mm - pressure max. 5.5Bar/80PSI
Maximum tyre size: width 64mm - pressure max. 3.25Bar/47PSI
ASTM category 2: road and offroad with jumps less than 15cm
Maximum weight supported by the wheels: must not exceed 120 kg (bike weight included)
