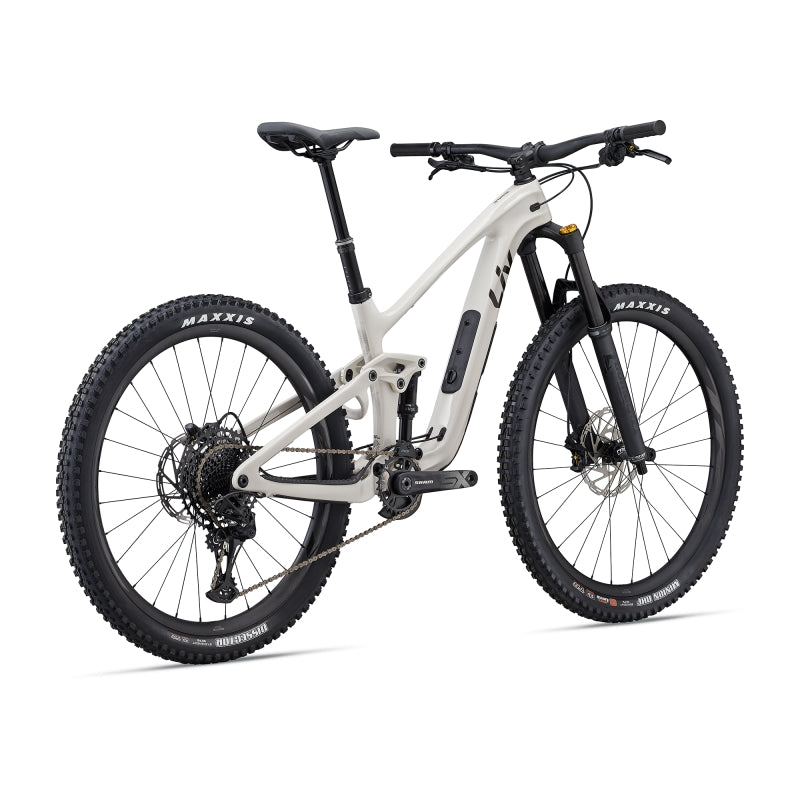

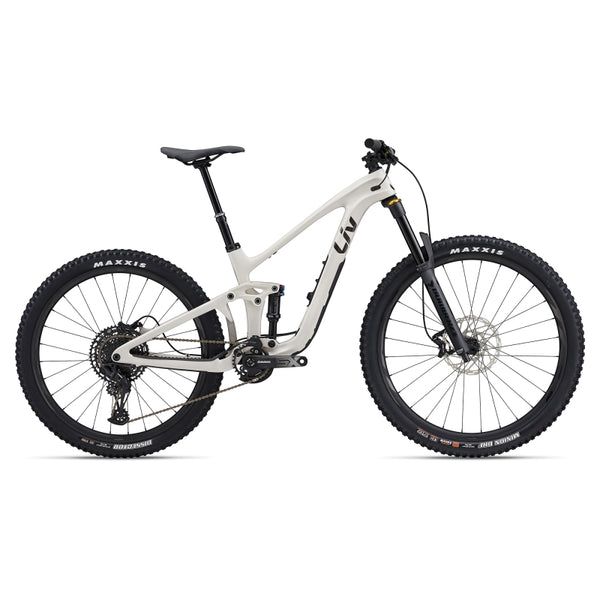

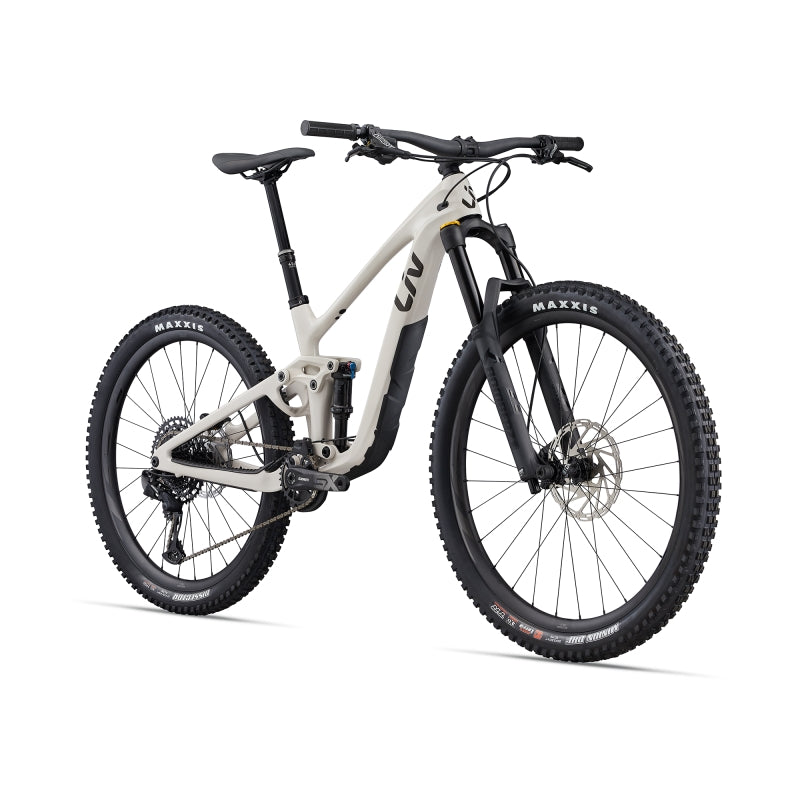

Liv Intrigue LT Advanced Pro 2

$4,499.00$6,399.00
Colour: Mushroom
Size
Add to Cart
  • techs & features
  • geometry
  • specs
  • similar products
  • you may also like
  • WHETHER YOU'RE LOOKING AHEAD TO PARK DAYS, BACKCOUNTRY SINGLETRACK ADVENTURES, OR YOUR NEXT ENDURO RACE - THE ALL-NEW INTRIGUE LT ADVANCED PRO EQUIPS YOU WITH THE VERSATILITY OF ADJUSTABLE FRAME GEOMETRY, THE EXCEPTIONAL EFFICIENCY OF ADVANCED-GRADE COMPOSITE AND THE ULTRA-SMOOTH PERFORMANCE OF MAESTRO SUSPENSION SO YOU CAN DO WHAT YOU DO BEST - SHRED!

    KEY PERFORMANCE FACTORS

    Performance Long Travel Trail
    Lightweight Advanced-Grade Composite frameset with integrated down tube storage features a slacker head tube angle for confidence on technical terrain and a longer reach to keep you centred and in control in the corners. The 150mm of Maestro rear wheel suspension has been custom tuned by women who shred, for women who shred. And paired with 160mm of front suspension, you've got a bike that is equal parts agile and burly.

    Adjustable Frame Geometry
    All-new flip chip - Maestro 3 offers more adjustability allowing you to easily change the head tube and seat tube angles, bottom bracket height and rear wheel size* to fine-tune handling for varying trail conditions and your personal riding style. *Sizes M and L only

    Best of Both Wheels
    Frame sizes XS and S are solely designed for a MX configuration - 29-inch wheel up front and 27.5-inch wheel in the rear. This set up optimizes rear wheel travel, provides a playful and nimble rear end and a fast rolling, stable front end. Frame sizes M and L come equipped with 29-inch wheels up front and in the rear with the ability to run a 27.5-inch wheel in the rear. This provides two unique riding characteristics - fast and comfortable or quick and nimble - allowing you to customize your set up for how and where you ride. *27.5-inch wheel sold separately for frame sizes M and L

  • TECHS & FEATURES

    ×

    ADVANCED COMPOSITE TECHNOLOGY

    Liv’s High-Performance Grade raw carbon material is used to produce this frameset in our own composite factory. Using state-of-the-art materials and manufacturing techniques, Liv’s Advanced-Grade Composite frames are designed to offer light weight and stiffness with optimal compliance.

    ×

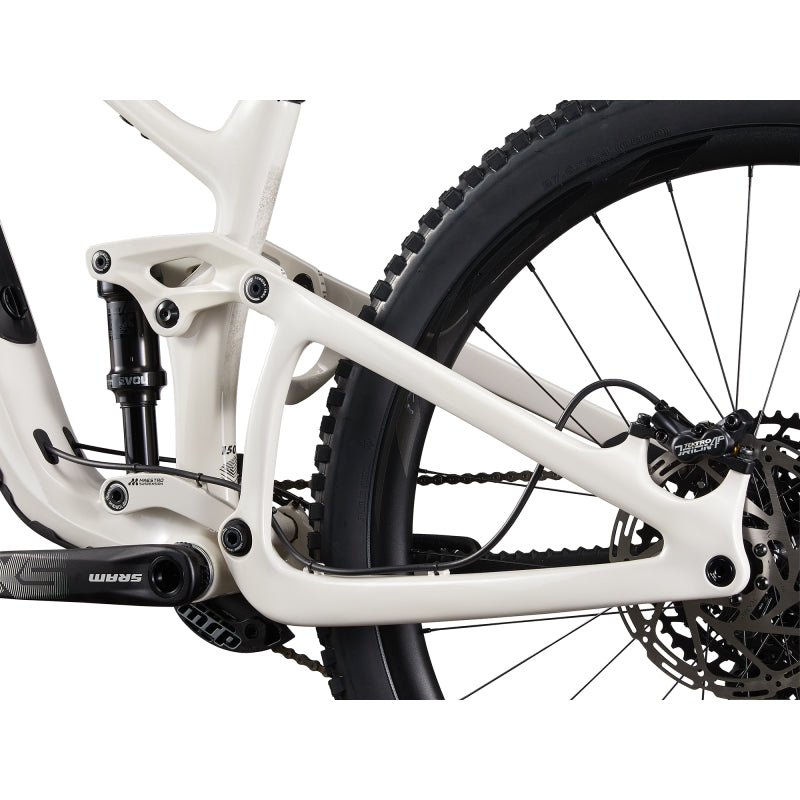

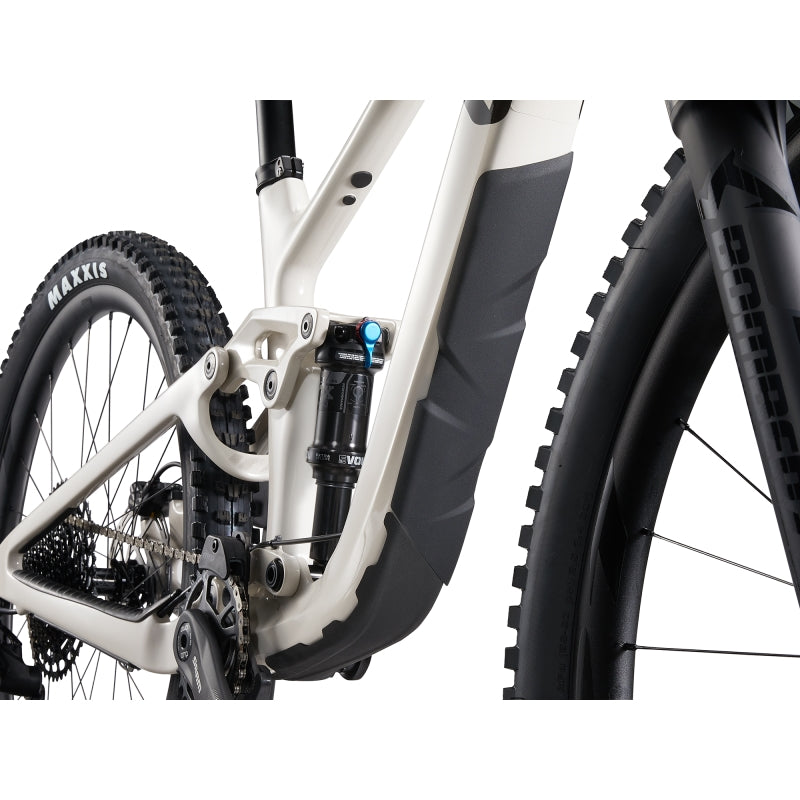

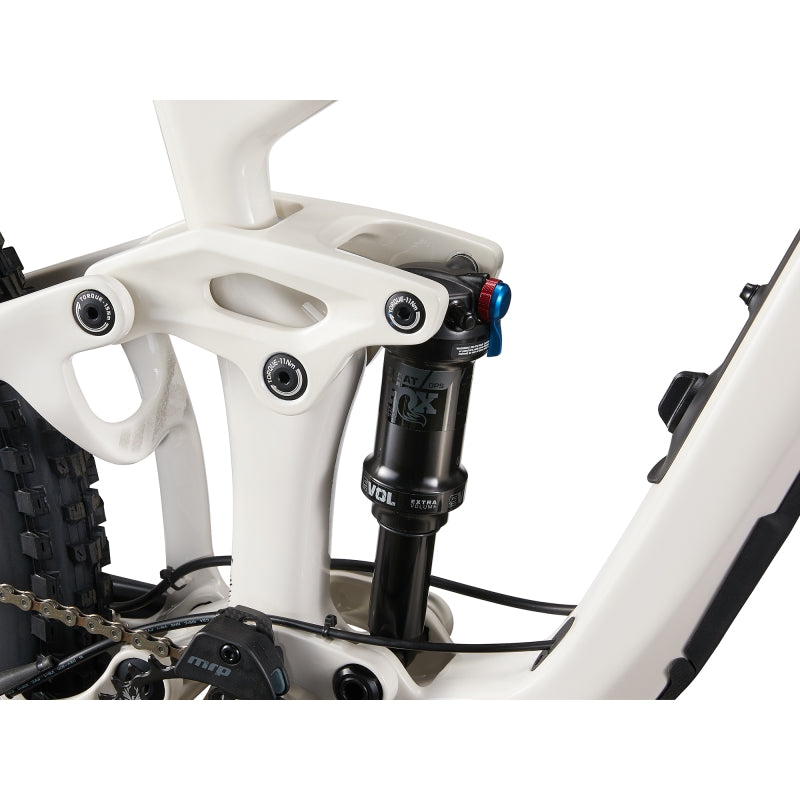

    MAESTRO SUSPENSION TECHNOLOGY

    Four strategically positioned pivot points and two linkages all work together to create a single floating pivot for the most active, efficient and independent suspension system on the trail.

    READ MORE

    ×

    OVERDRIVE

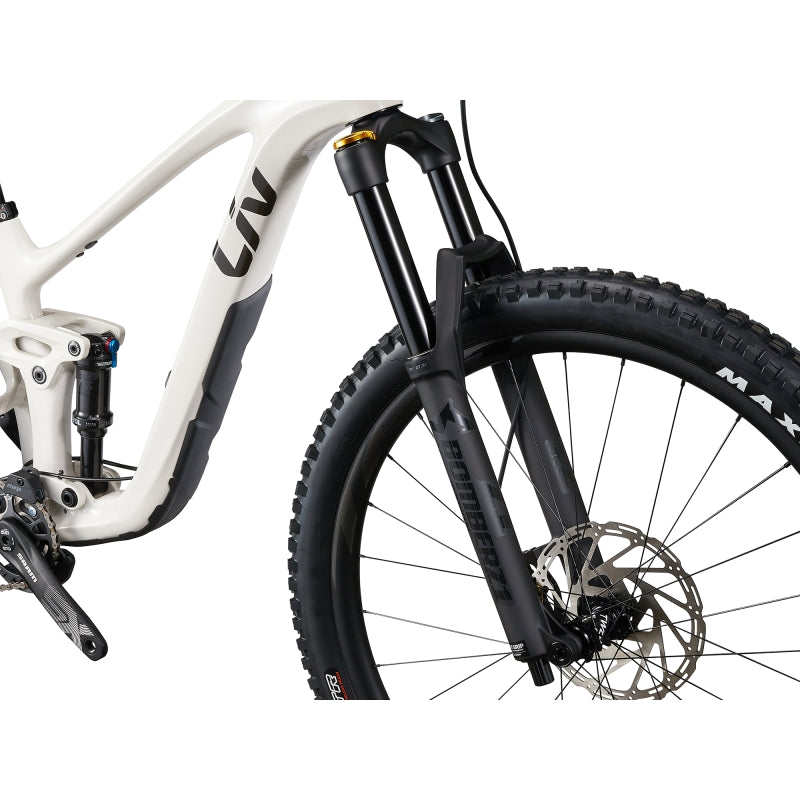

    Designed to provide precise front-end steering performance, this fork steerer tube technology uses oversized headset bearings (1 1/4” lower and 1 1/8” upper for road, 1 1/2” lower and 1 1/8” upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.

    ×

    TUBELESS SYSTEM

    Engineered with proprietary Dynamic Balanced Lacing technology, this tubeless ready composite WheelSystem delivers superior efficiency, pinpoint control and comfort.

    ×

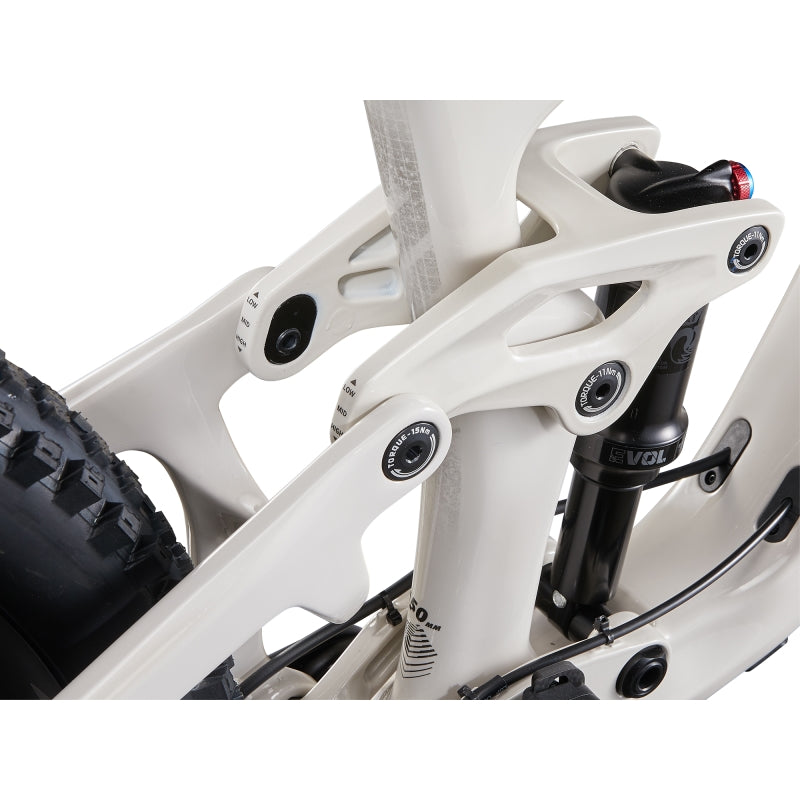

    FLIP CHIP - MAESTRO 3

    This all-new technology allows you to quickly adjust the geometry of your bike to better suit riding conditions and rear-wheel size choice. Using two different flip chips – a combination high/ low and a dedicated mid-position chip – riders can change the head tube angle, seat tube angle and bottom bracket height using eccentric hardware located on the upper rocker arm of the rear suspension.

    READ MORE

  • SIZING GUIDE AND GEOMETRY

    Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
    Available sizes may vary from country to country.

    S
    LOW MID HIGH
    M
    LOW MID HIGH
    L
    LOW MID HIGH
    A SEAT TUBE LENGTH (mm)
    390
    420
    450
    B SEAT TUBE ANGLE
    76.2° 76.6° 77.0°
    77.3° 77.6° 78.0°
    77.3° 77.6° 78.0°
    C TOP TUBE LENGTH (mm)
    567 566 565
    581 580 579
    603 602 601
    D HEAD TUBE LENGTH (mm)
    95
    100
    110
    E HEAD TUBE ANGLE
    64.6° 65.1° 65.5°
    64.8° 65.1° 65.5°
    64.8° 65.1° 65.5°
    F FORK RAKE (mm)
    44
    44
    44
    G TRAIL (mm)
    131.6 127.8 124.8
    130.6 127.7 124.8
    130.5 127.7 124.8
    H WHEELBASE (mm)
    1183 1180 1179
    1208 1207 1207
    1232 1231 1231
    I CHAIN STAY LENGTH (mm)
    443 442 440
    443 442 440
    443 442 440
    J BOTTOM BRACKET DROP (mm)
    24 20 15
    35 30 25
    35 30 25
    K STACK (mm)
    628 627 624
    628 625 622
    637 634 631
    L REACH (mm)
    413 417 421
    439 442 447
    459 462 467
    M STAND OVER HEIGHT (mm)
    674 674 674
    712 712 712
    750 750 750
    O STEM LENGTH (mm)
    50
    50
    50
    P CRANK LENGTH (mm)
    170
    170
    175
  • Please note that our specifications may be impacted by running substitution changes, we highly recommend confirming the specifications of our products with your local retailer at the time of sale if purchasing in-store. *Recommended Retail Prices are subject to change without notice and may vary from store to store depending on freighting and assembly costs.
