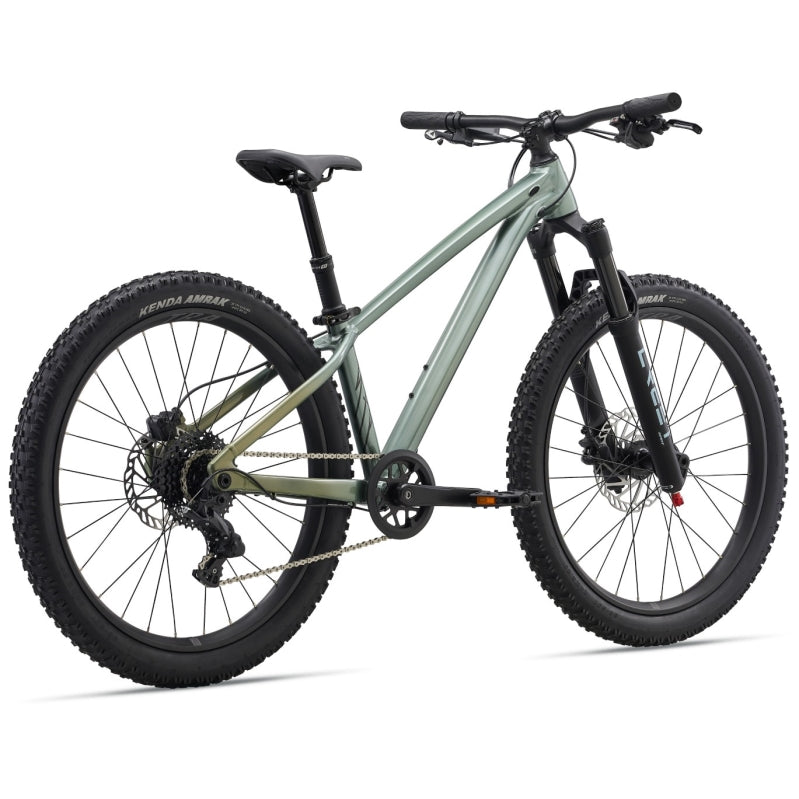

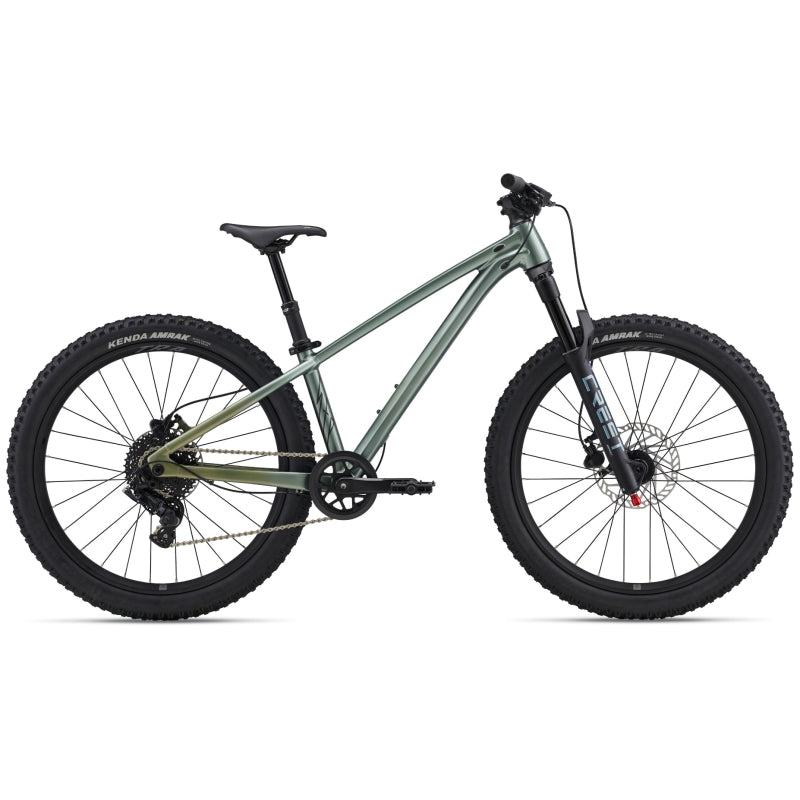

Liv MY26 STP 24 Liv

$1,499.00
Colour: Alpine Green
Size: 24 INCH
Add to Cart
  • techs & features
  • geometry
  • specs
  • similar products
  • you may also like

  • FOR YOUNG RIDERS READY TO LEVEL UP THEIR SKILLS, THE STP 24 DELIVERS THE PERFECT MIX OF STABILITY, CONTROL, AND FUN. WITH YOUTH-TUNED SUSPENSION, BALANCED GEOMETRY, AND COMPONENTS BUILT FOR SMALLER RIDERS, IT HELPS THEM FLOW THROUGH CORNERS, JUMP HIGHER, AND PUSH THEIR LIMITS WITH CONFIDENCE-ON TRAILS, PUMP TRACKS, AND EVERYTHING IN BETWEEN.


    KEY PERFORMANCE FACTORS

    BUILT TO LAST

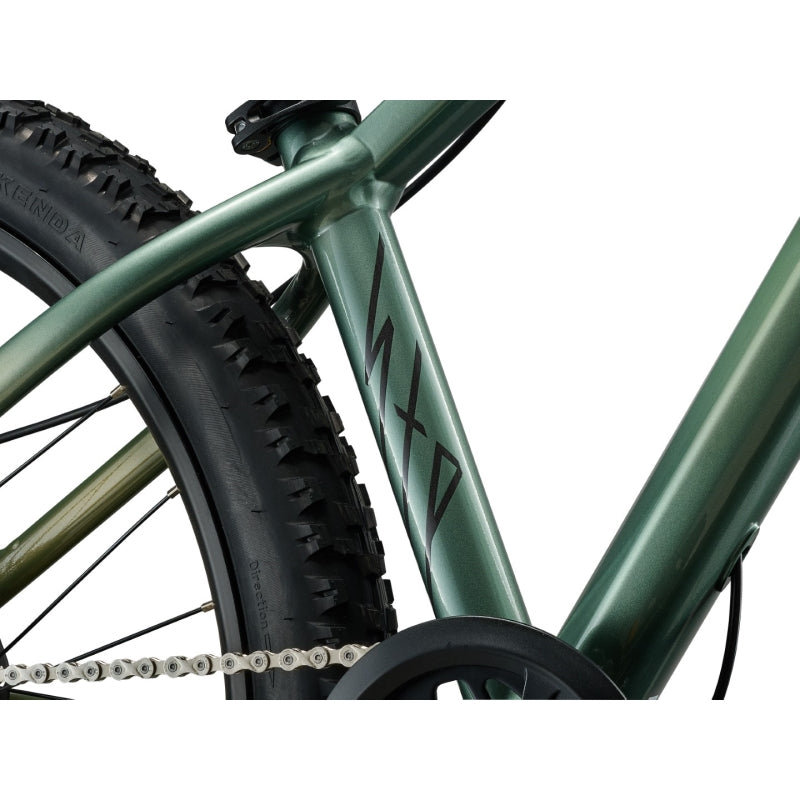

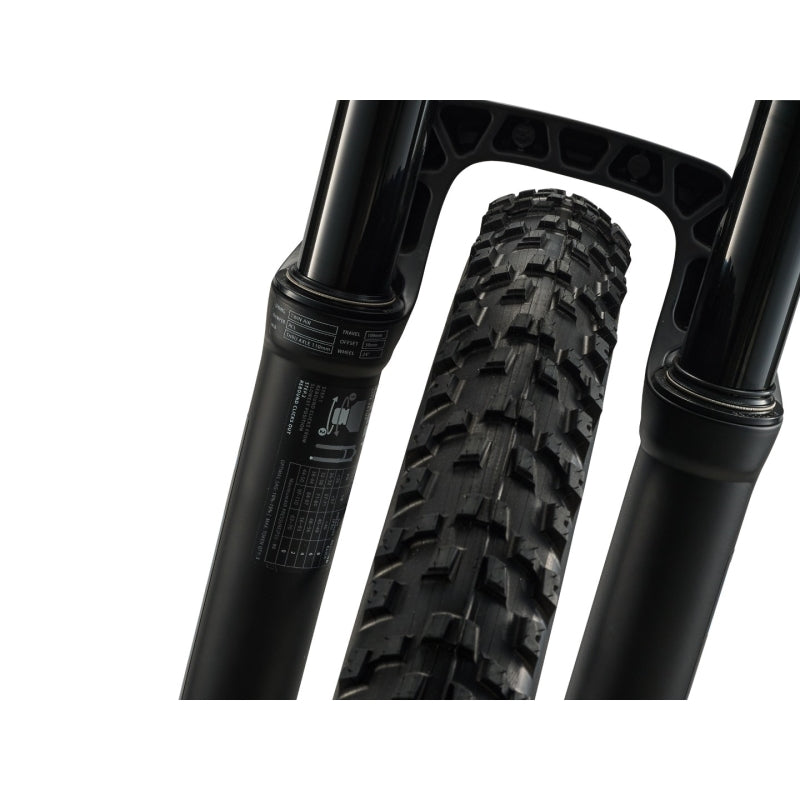

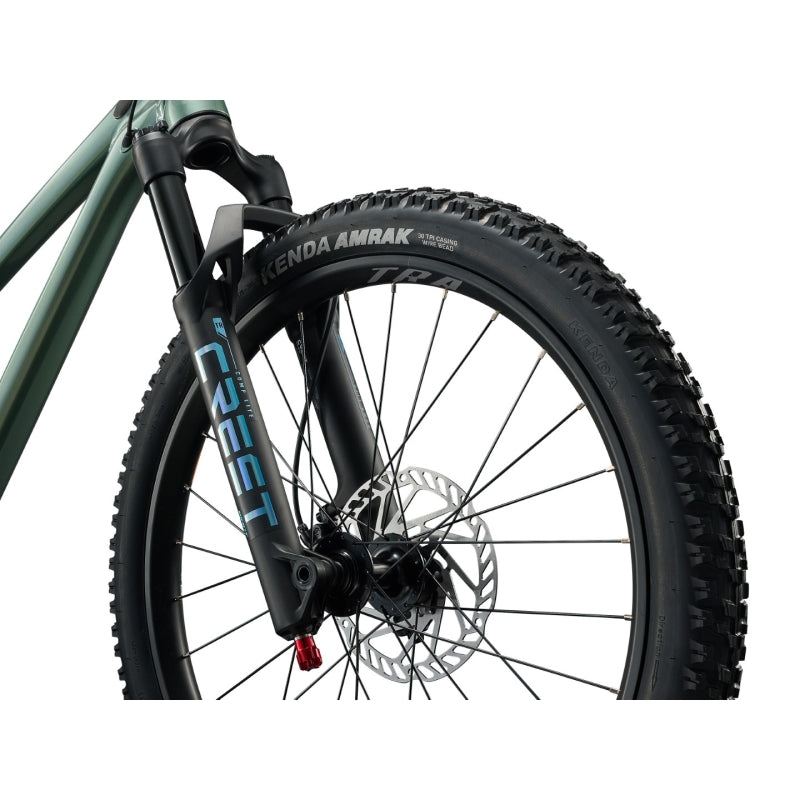

    The ALUXX-grade aluminium frame and Crest TR Comp Lite 100mm suspension fork are engineered to handle rough rides while keeping things smooth and controlled. The 24-inch TRA 2 WheelSystem with Wide Guard rim technology lets riders run lower tyre pressures for added traction without sacrificing rim durability.

    YOUTH-TUNED CONTROL

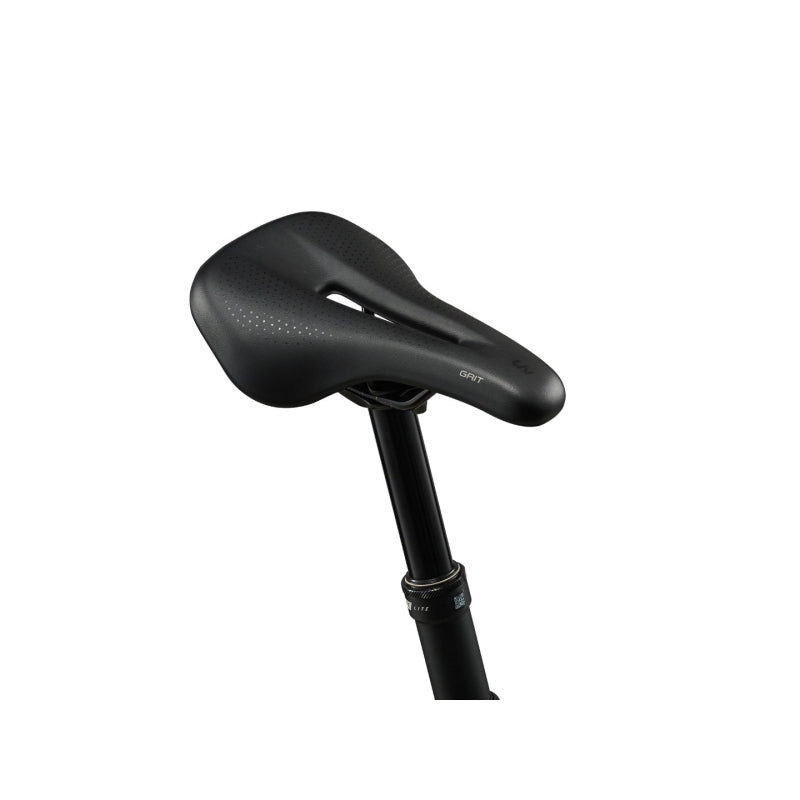

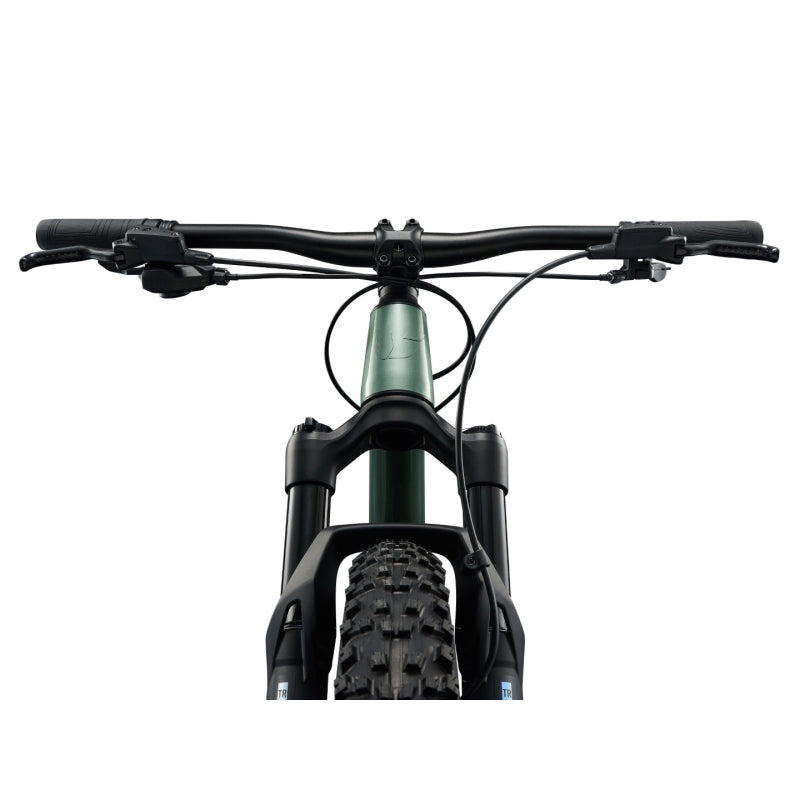

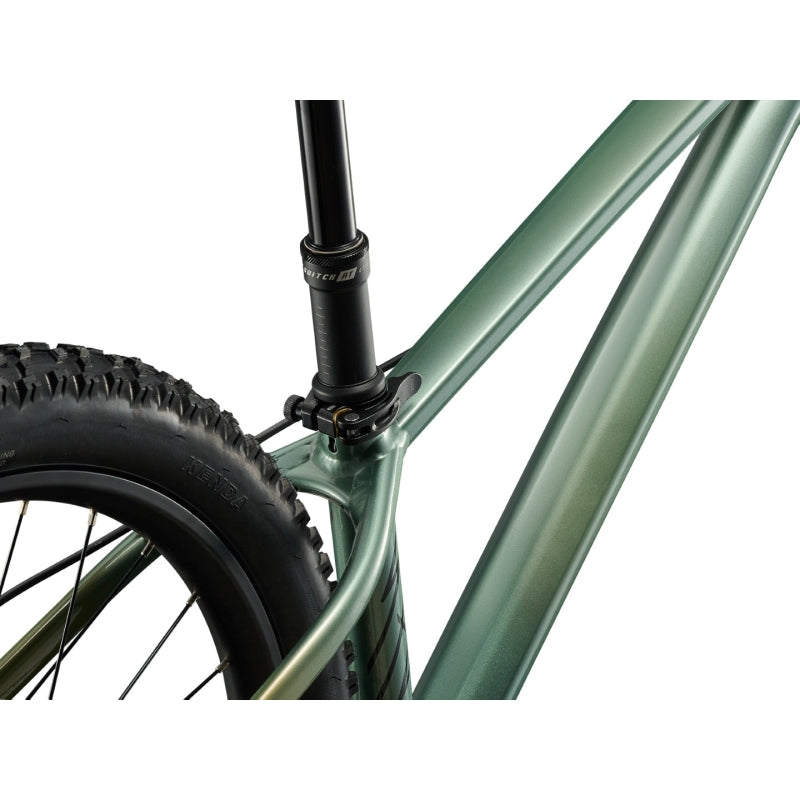

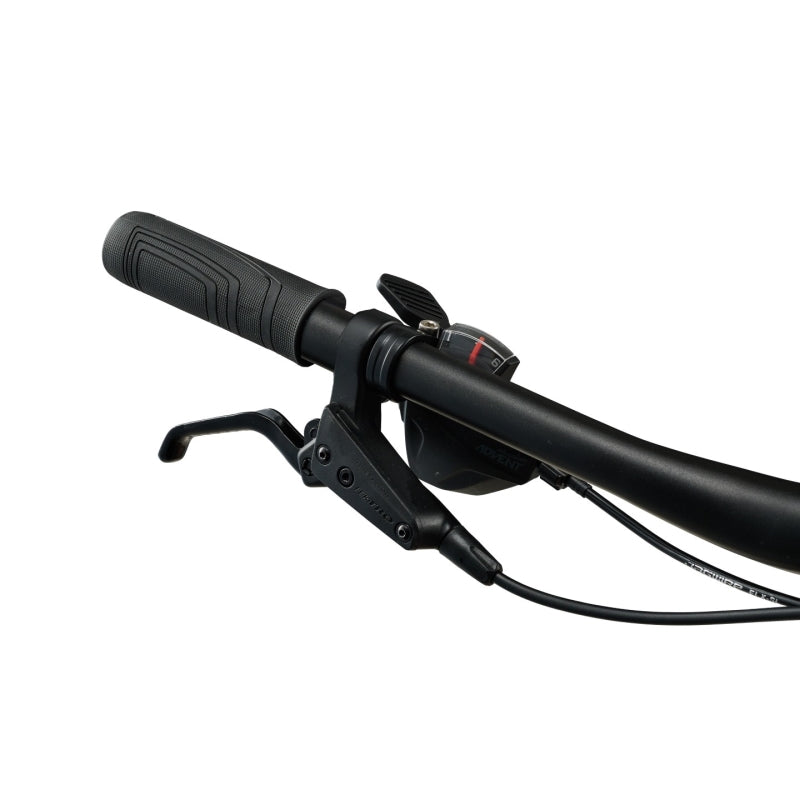

    Designed for riders 125-145cm tall, the STP 24 features youth-specific components that ensure proper fit and control. The narrower handlebars, Liv Grit Core Lite saddle, and Contact Switch AT Lite dropper seatpost provide a comfortable, secure riding position, while youth-tuned hydraulic disc brakes offer smooth, reliable stopping power across all terrain.

    TRICK-READY HANDLING

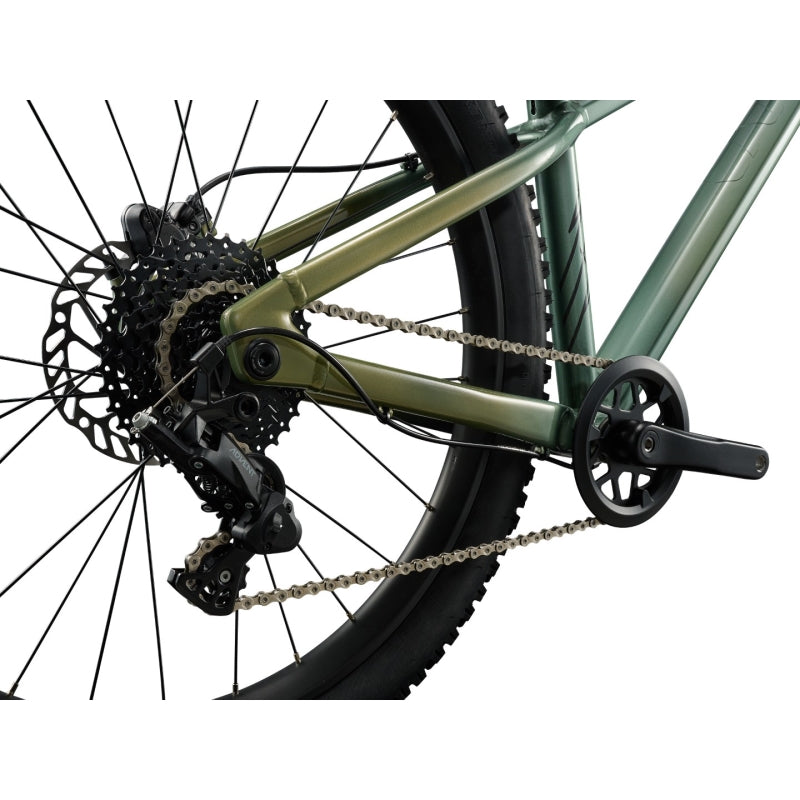

    With 24-inch wheels, front and rear thru-axles, and a short rear center, the STP 24 feels agile yet stable. Its low center of gravity makes it easier to lift the front wheel, pump through rollers, and carve corners with confidence and control.



    SPEC & GEOMETRY - MY26 LIV STP 24

  • TECHS & FEATURES

    ×

    ALUXX ALUMINIUM TECHNOLOGY

    This Performance level frame material features 6061 alloy with single-butted tubes to produce strong, lightweight framesets for a variety of different bikes and riding styles.

  • SIZING GUIDE AND GEOMETRY

    Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
    Available sizes may vary from country to country.

    OneSize
    A SEAT TUBE LENGTH (mm)
    300
    A1
    250
    B SEAT TUBE ANGLE
    73.0°
    C TOP TUBE LENGTH (mm)
    523
    D HEAD TUBE LENGTH (mm)
    90
    E HEAD TUBE ANGLE
    67.0°
    F FORK RAKE (mm)
    30
    G TRAIL (mm)
    104
    H WHEELBASE (mm)
    975
    I CHAIN STAY LENGTH (mm)
    375
    J BOTTOM BRACKET DROP (mm)
    40
    K STACK (mm)
    534
    L REACH (mm)
    360
    M STAND OVER HEIGHT (mm)
    629
    O STEM LENGTH (mm)
    40
    P CRANK LENGTH (mm)
    140
  • Please note that our specifications may be impacted by running substitution changes, we highly recommend confirming the specifications of our products with your local retailer at the time of sale if purchasing in-store. *Recommended Retail Prices are subject to change without notice and may vary from store to store depending on freighting and assembly costs.
