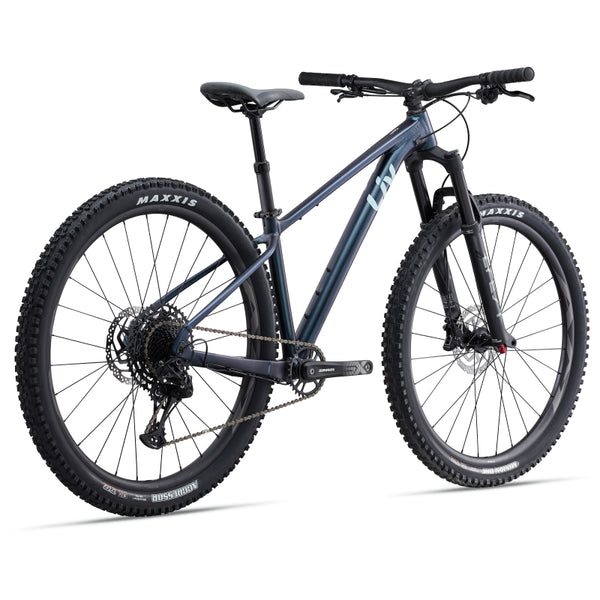

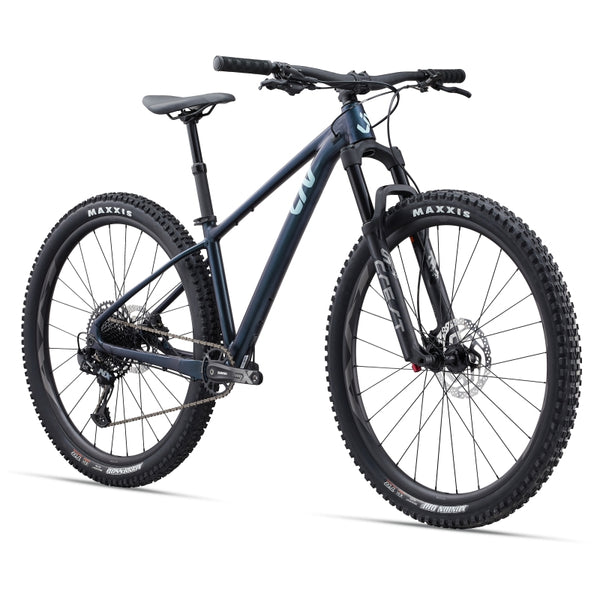

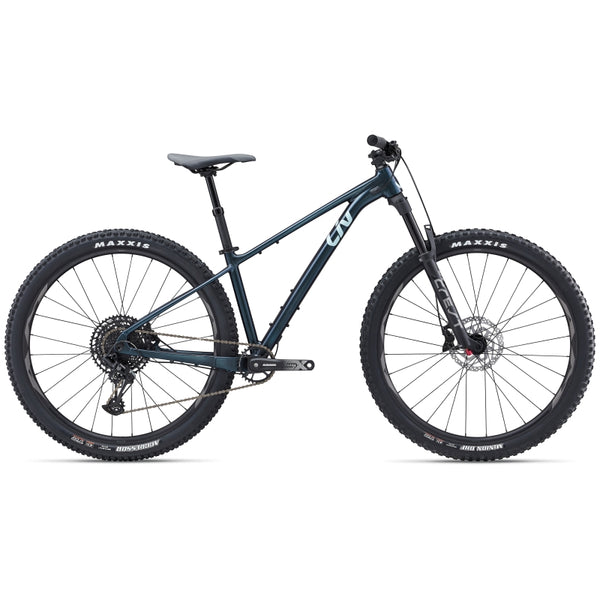

Liv Lurra 27.5 1

$1,839.00$2,299.00
Colour: Starry Night
Size
Add to Cart
  • techs & features
  • geometry
  • specs
  • similar products
  • you may also like
  • FEEL MORE CONNECTED TO THE TRAIL WITH THE ALL-NEW LURRA. BUILT FOR CHARGING UP SINGLETRACK CLIMBS AND DIVING INTO FAST, FLOWY DESCENTS, THIS HARDTAIL TRAIL BIKE IS SIMPLICITY AT ITS BEST.


    KEY PERFORMANCE FACTORS

    Optimal Trail Design: Lightweight ALUXX SL-Grade aluminium hardtail frame with a steep seat tube angle optimises your input when powering up climbs and hammering on the flats, resulting in greater efficiency and speed. And a 66-degree head tube angle offers confidence on steep descents, while the 438mm chainstays keep it feeling stable and playful. Frame sizes are paired up with wheel sizes, providing the ideal fit for you and where you want to ride.

    Boosted Confidence: Take on technical terrain with the 130mm of plush front suspension, high-volume tubeless tyres offering extreme traction on roots, rocks and ruts, and a dropper seatpost allowing you to get low and ride with control.

    Adventure-Ready: Equipped with mounts for 2 water bottle cages and a small gear bag on the underside of the top tube for extra tools and snacks. Internal cable routing keeps the important stuff tidy and protected, so you can stay focused on the ride ahead.

    SPEC & GEOMETRY - LURRA 27.5 1

  • TECHS & FEATURES

    ×

    ALUXX ALUMINIUM TECHNOLOGY

    This Performance level frame material features 6061 alloy with single-butted tubes to produce strong, lightweight framesets for a variety of different bikes and riding styles.

    ×

    OVERDRIVE

    Designed to provide precise front-end steering performance, this fork steerer tube technology uses oversized headset bearings (1 1/4” lower and 1 1/8” upper for road, 1 1/2” lower and 1 1/8” upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.

    ×

    POWERCORE

    A massively oversized bottom-bracket/chainstay area features a fully integrated, 86-millimeter wide bottom-bracket design (92-millimeterwide for off-road bikes). Asymmetric chainstays provide additional stiffness on the driveside and stability on the non-driveside.

    ×

    TUBELESS SYSTEM

    Engineered with proprietary Dynamic Balanced Lacing technology, this tubeless ready composite WheelSystem delivers superior efficiency, pinpoint control and comfort.

  • SIZING GUIDE AND GEOMETRY

    Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
    Available sizes may vary from country to country.

    XS
    S
    A SEAT TUBE LENGTH (mm)
    360
    380
    B SEAT TUBE ANGLE
    76.0°
    76.0°
    C TOP TUBE LENGTH (mm)
    544
    564
    D HEAD TUBE LENGTH (mm)
    95
    105
    E HEAD TUBE ANGLE
    66.0°
    66.0°
    F FORK RAKE (mm)
    44
    44
    G TRAIL (mm)
    113.9
    113.9
    H WHEELBASE (mm)
    1118
    1140
    I CHAIN STAY LENGTH (mm)
    438
    438
    J BOTTOM BRACKET DROP (mm)
    60
    60
    K STACK (mm)
    608
    617
    L REACH (mm)
    393
    410
    M STAND OVER HEIGHT (mm)
    613
    661
    O STEM LENGTH (mm)
    40
    40
    P CRANK LENGTH (mm)
    165
    170
    Q WHEEL SIZE
    27.5"
    27.5"
  • Please note that our specifications may be impacted by running substitution changes, we highly recommend confirming the specifications of our products with your local retailer at the time of sale if purchasing in-store. *Recommended Retail Prices are subject to change without notice and may vary from store to store depending on freighting and assembly costs.
