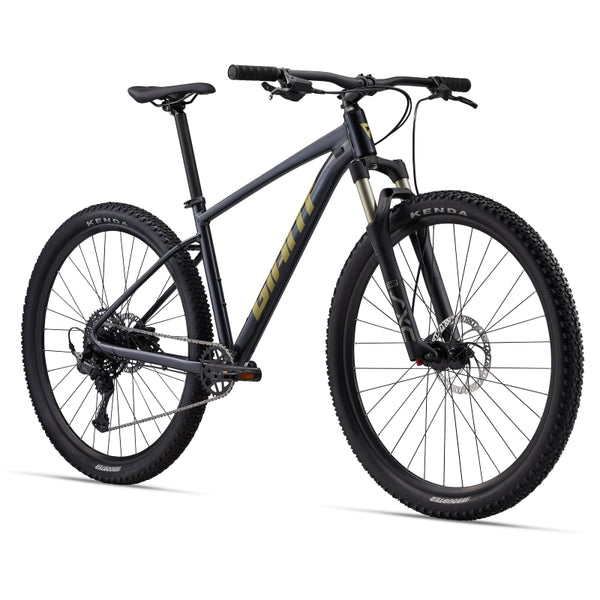

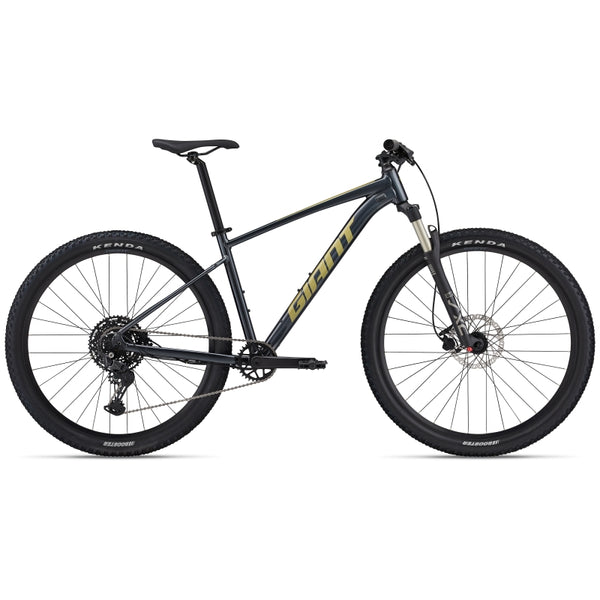

Giant Talon 29 1

$1,299.00
Colour: Cold Iron
Size
Add to Cart
  • techs & features
  • geometry
  • specs
  • similar products
  • you may also like
  • PUSH THE PACE ON CLIMBS, LET LOOSE ON DESCENTS. THIS ALUMINIUM HARDTAIL WITH A PLUSH SUSPENSION FORK DELIVERS BALANCED, CONFIDENT HANDLING ON THE TRAIL.


    KEY PERFORMANCE FACTORS

    Proven alloy performance
    ALUXX aluminium frameset is hand-built in-house by the world leader in aluminium engineering.

    Balance and stability
    Frame geometry is designed to optimise the balance and roll-over capabilities of 29-inch wheels or the liveliness of 27.5-inch wheels (depending on frame size and model).

    XC control
    Suspension fork offers either 80mm or 100mm of smooth travel, depending on the model, for added control on XC terrain.


    SPEC & GEOMETRY - TALON 29 1

  • TECHS & FEATURES

    ×

    This Performance level frame material features 6061 alloy with single-butted tubes to produce strong, lightweight framesets for a variety of different bikes and riding styles.

    ×

    TUBELESS SYSTEM

    Fewer flat tyres. Greater traction. Less rolling resistance and a smoother, faster ride. Giant’s Tubeless System makes it easier than ever to experience all these benefits.

    READ MORE

  • SIZING GUIDE AND GEOMETRY

    Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
    Available sizes may vary from country to country.

    S
    M
    L
    XL
    A SEAT TUBE LENGTH (mm)
    390
    440
    490
    535
    A1 SEAT POST INSERTION DEPTH (mm)
    245
    200
    250
    300
    B SEAT TUBE ANGLE
    74.0°
    74.0°
    74.0°
    74.0°
    C TOP TUBE LENGTH (mm)
    577
    599
    620
    639
    D HEAD TUBE LENGTH (mm)
    95
    105
    125
    140
    E HEAD TUBE ANGLE
    68.5°
    68.5°
    68.5°
    68.5°
    F FORK RAKE (mm)
    51
    51
    51
    51
    G TRAIL (mm)
    94
    94
    94
    94
    H WHEELBASE (mm)
    1126
    1150
    1172
    1192
    I CHAIN STAY LENGTH (mm)
    455
    455
    455
    455
    J BOTTOM BRACKET DROP (mm)
    55
    55
    55
    55
    K STACK (mm)
    602
    611
    630
    644
    L REACH (mm)
    404
    424
    439
    454
    M STAND OVER HEIGHT (mm)
    732
    766
    805
    839
    O STEM LENGTH (mm)
    50
    60
    70
    80
    P CRANK LENGTH (mm)
    170
    175
    175
    175
    Q WHEEL SIZE
    29"
    29"
    29"
    29"
  • Please note that our specifications may be impacted by running substitution changes, we highly recommend confirming the specifications of our products with your local retailer at the time of sale if purchasing in-store. *Recommended Retail Prices are subject to change without notice and may vary from store to store depending on freighting and assembly costs.
