Giant Fathom 29 2

$1,899.00

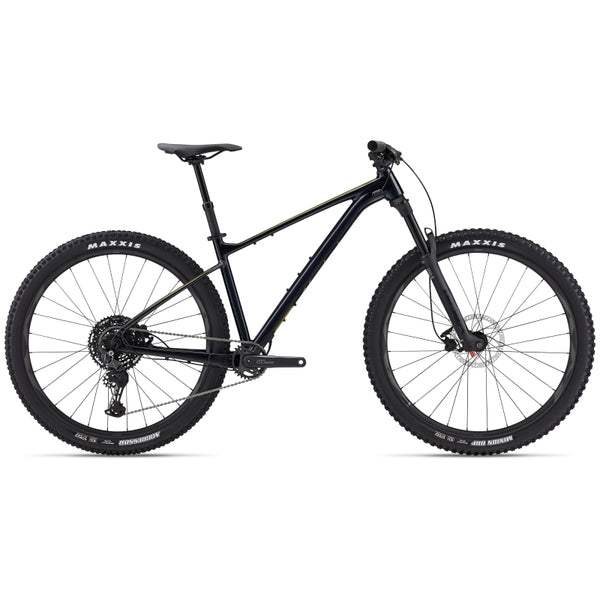

Colour: Cold Night
Size
Add to Cart
  • techs & features
  • geometry
  • specs
  • similar products
  • you may also like
  • SAIL UP STEEP CLIMBS WITH SMOOTH EFFICIENCY. SWOOP DOWN SINGLETRACK DESCENTS WITH SPEED AND CONFIDENCE. THIS ALUMINIUM HARDTAIL 29ER DELIVERS A BALANCED RIDE ON XC TERRAIN.


    KEY PERFORMANCE FACTORS

    Trail tuned design
    Balanced geometry with a 75-degree seat tube angle puts the rider in a powerful pedalling position on climbs, while a slacker 66-degree head angle boosts confidence and control on technical descents.

    Responsive handling
    Lightweight ALUXX SL aluminium hardtail frame offers agile acceleration and manoeuvrability to help riders climb, corner and hammer the flats with efficiency and speed.

    Smooth control
    Giant Crest 34 suspension fork with 130mm of travel absorbs roots, rocks and ruts. Grippy, high-volume tyres boost traction on rugged terrain. And a dropper seatpost with handlebar remote lets you adjust saddle height on the fly for confident positioning

    SPEC & GEOMETRY - FATHOM 29 2

  • TECHS & FEATURES

    ×

    ALUXX SL ALUMINIUM TECHNOLOGY

    This High-Performance level, state-of-the-art aluminium material is made predominantly from 6011 alloy and delivers best-in-class strength-to-weight ratios. These framesets also feature unique welding technologies for a high-performance ride quality.

    ×

    Giant’s original oversized fork steerer tube technology. Designed to provide precise front-end steering performance, the system’s oversized headset bearings (1 1/4” lower and 1 1/8” upper for road, 1 1/2” lower and 1 1/8” upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.

    ×

    TUBELESS SYSTEM

    Fewer flat tyres. Greater traction. Less rolling resistance and a smoother, faster ride. Giant’s Tubeless System makes it easier than ever to experience all these benefits.

    READ MORE

  • SIZING GUIDE AND GEOMETRY

    Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
    Available sizes may vary from country to country.

    S
    M
    L
    XL
    A SEAT TUBE LENGTH (mm)
    380
    430
    465
    495
    A1 SEAT POST INSERTION DEPTH (mm)
    300
    200
    235
    285
    B SEAT TUBE ANGLE
    75.0°
    75.0°
    75.0°
    75.0°
    C TOP TUBE LENGTH (mm)
    592
    612
    639
    662
    D HEAD TUBE LENGTH (mm)
    95
    95
    105
    115
    E HEAD TUBE ANGLE
    66.0°
    66.0°
    66.0°
    66.0°
    F FORK RAKE (mm)
    44
    44
    44
    44
    G TRAIL (mm)
    122
    122
    122
    122
    H WHEELBASE (mm)
    1157
    1177
    1206
    1230
    I CHAIN STAY LENGTH (mm)
    438
    438
    438
    438
    J BOTTOM BRACKET DROP (mm)
    60
    60
    60
    60
    K STACK (mm)
    622
    622
    631
    640
    L REACH (mm)
    425
    445
    470
    490
    M STAND OVER HEIGHT (mm)
    727
    746
    764
    791
    O STEM LENGTH (mm)
    40
    40
    50
    50
    P CRANK LENGTH (mm)
    165
    170
    170
    170
    Q WHEEL SIZE
    29"
    29"
    29"
    29"
  • Please note that our specifications may be impacted by running substitution changes, we highly recommend confirming the specifications of our products with your local retailer at the time of sale if purchasing in-store. *Recommended Retail Prices are subject to change without notice and may vary from store to store depending on freighting and assembly costs.
