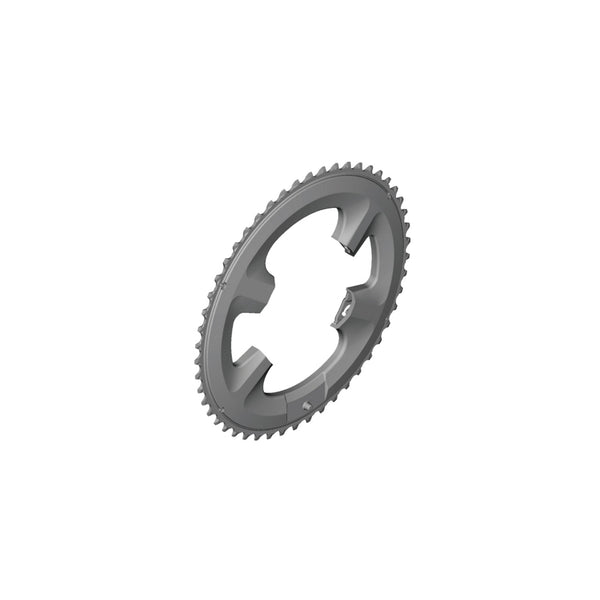

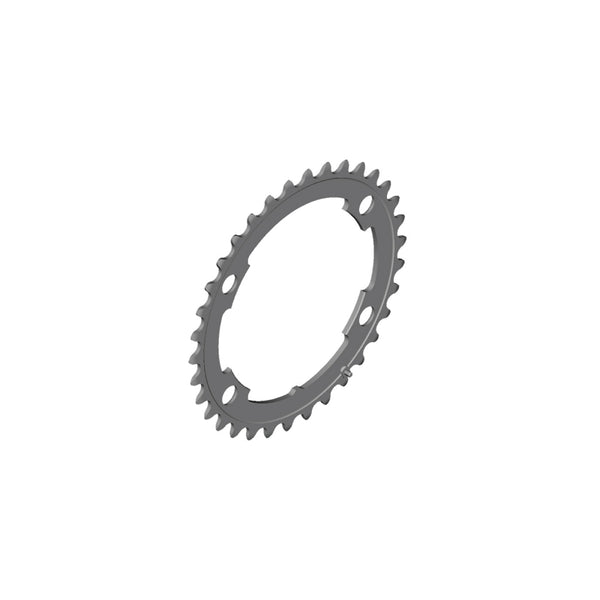

Shimano FC-RS510 Chainring

$59.95
Teeth
  • specs
  • similar products
  • you may also like

  • THE SHIMANO 11-SPEED CHAINRING FOR FC-RS510 CRANKS


    The Shimano FC-RS510 11-speed chainring has a bolt circle diameter of 110 mm with asymmetric holes. As usual with Shimano, these chainrings have been designed to work smoothly with the other drivetrain components.


    SPECIFICATIONS

    Application: Road
    Attachment: 110 mm pitch circle, 4-arm asymmetrical
    Gearing: 2x11-speed
    Compatibility: FC-RS510



    34T

    Designation: MS

    Position: Inner



    36T

    Designation: MT

    Position: Inner



    46T

    Designation: MT

    Position: Outer



    50T

    Designation: MS

    Position: Outer



    52T

    Designation: MT

    Position: Outer



    Note to Type Designation:
    The type designation (one or two characters) helps identify the compatibility of various chainrings with other chainrings. Because the larger chainrings have specially-formed teeth and upward shifting assistance, only particular smaller chainrings will match to ensure proper shifting performance. An XY chainring should only be combined with another XY chainring. This applies to all other types as well.

  • Please note that our specifications may be impacted by running substitution changes, we highly recommend confirming the specifications of our products with your local retailer at the time of sale if purchasing in-store. *Recommended Retail Prices are subject to change without notice and may vary from store to store depending on freighting and assembly costs.
