Shimano BB-RS500 Press Fit Bottom Bracket 86.5 / 92MM 41MM Road

SHIMANO BB-RS500-PB BOTTOM BRACKET - PRESS FIT FOR GRX, TIAGRA AND OTHER CRANKS.

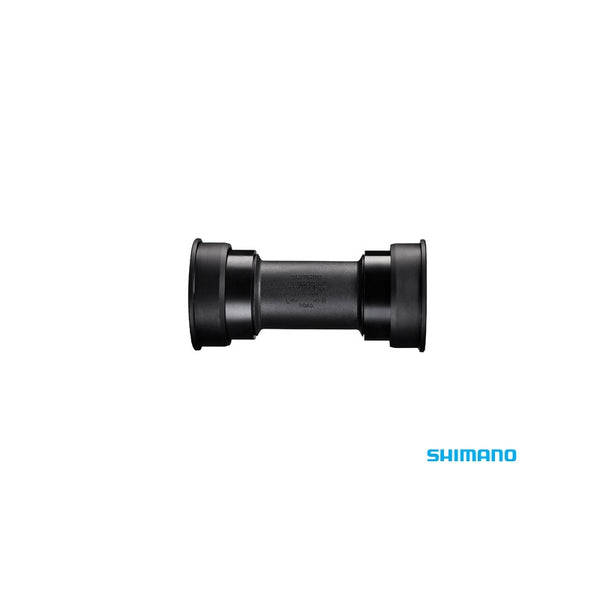

The Press Fit BB-RS500-PB bottom bracket is recommended by Shimano for the GRX, Tiagra, Sora and Claris series. This allows a Hollowtech II or 2-piece crank with a 24 mm axle to be mounted in a road frame with an 86.5 mm bottom bracket width and a 41 mm shell diameter. The bottom bracket is made from a synthetic material and has black bearing cups.


SPECIFICATIONS

Application: Road, Gravel, City
Type: Press fit BB86
Shell Diameter: 41 mm
Shell Width: 86.5 mm
Axle Diameter: 24 mm (Hollowtech II)


TECHNICAL INFORMATION

Bearings: Steel
Bottom Bracket Cup Material: Synthetic resin


COMPATIBILITY

- GRX FC-RX610, FC-RX600
- Tiagra FC-4700, FC-4703
- Sora FC-R3030, FC-R3000
- Claris FC-R2030, FC-R2000
- FC-RS520, FC-RS510, FC-RS400


TECHNOLOGY

Hollowtech II
Shimano Hollowtech II is a crank bottom bracket system designed to achieve an ideal ratio of stiffness, weight and rotational efficiency. It is based on an integration of the bottom bracket and the right crank arm and works with a 24 mm axle or bearing diameter, which has proven to be optimal in terms of stability. In many cases, the bearing cups are on the outside so that the load is better distributed. High-quality precision seals ensure a long service life.
