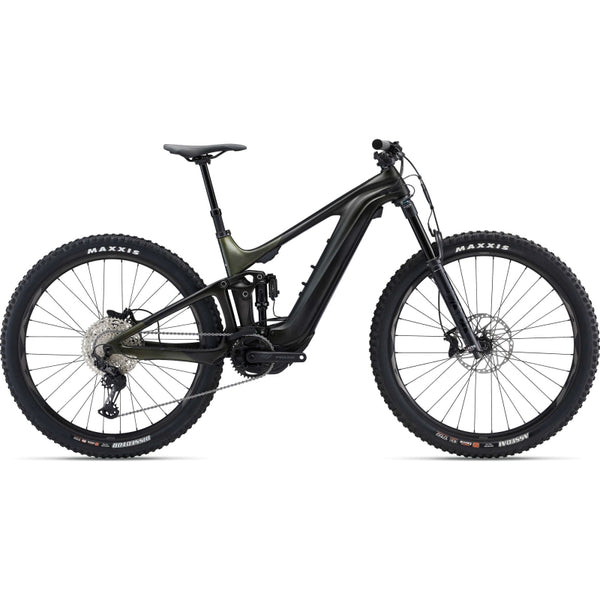

Giant Trance X Advanced E+ 1

$6,499.95$10,799.00
Colour: Panther / Phantom Green
Size: MEDIUM

This product is unavailable

  • Range
  • techs & features
  • geometry
  • specs
  • similar products
  • you may also like
  • A NEW BREED OF TRAIL BIKE THAT BLENDS POWER, PERFORMANCE AND FLAT-OUT FUN. WITH ITS LIGHTWEIGHT COMPOSITE FRAME, PLUSH SUSPENSION AND NEW MOTOR TECHNOLOGY, YOU'LL NEVER WANT THE RIDE TO END.


    KEY PERFORMANCE FACTORS

    Powerful and responsive
    New SyncDrive Pro motor with 85Nm of torque creates powerful pedalling assistance even at low speeds. Lightweight, stiff Advanced-grade composite frame with 140mm of Maestro rear suspension travel and 150mm up front delivers confident handling and control on rough trails.

    Adaptable to the terrain
    New flip chip feature lets you change the head tube and seat tube angles, along with the bottom bracket height, to fine-tune handling for varying trail conditions and individual riding style. You can choose the low position for fast, aggressive terrain, or high for a more XC-oriented rider position.

    Clean cockpit
    The new RideControl Go top-tube integrated multi-function on/off button and RideControl Ergo 3 handlebar-mounted remote, which can be mounted on either grip, offer user-friendly controls and an uncluttered cockpit design.

    SPEC & GEOMETRY - TRANCE X ADVANCED E+ 1

  • RANGE

    How far can I expect to ride on a single battery charge?

    The range for a single battery charge can vary greatly depending on conditions such as the combined weight of the rider and cargo; wind resistance; tire pressure and tread profile; terrain and elevation changes; road or trail surface; outdoor temperature; maintenance of the E-Bike; and the condition of the battery.

    The bar below gives an approximate range. Conditions are categorized as extreme, good and ideal. Extreme conditions typically occur when riding with a heavy load, strong headwinds or excessive climbs.

    ENERGYPAK SMART 625 / SYNCDRIVE PRO

    • Range
    • Extreme: 60 km
    • Good: 120 km
    • Ideal: 190 km

  • TECHS & FEATURES

    ×

    ADVANCED COMPOSITE TECHNOLOGY

    Giant’s High Performance Grade raw carbon material is used to produce this custom frame material in our own composite factory with a high stiffness-to-weight ratio. The front triangle of these framesets is assembled and moulded as one continuous piece in a proprietary manufacturing process called Modified Monocoque Construction.

    ×

    HYBRID CYCLING TECHNOLOGY

    Hybrid Cycling Technology is a system that combines electric power with human power to produce a smart, natural and powerful E-bike riding experience. It’s an integrated group of technologies that includes our RideControl control unit, EnergyPak battery systems and SyncDrive motor.

    For more information, check out the link below.

    READ MORE

    ×

    MAESTRO SUSPENSION TECHNOLOGY

    Four strategically positioned pivot points and two linkages all work together to create a single floating pivot for the most active, efficient and independent suspension system on the trail.

    READ MORE

    ×

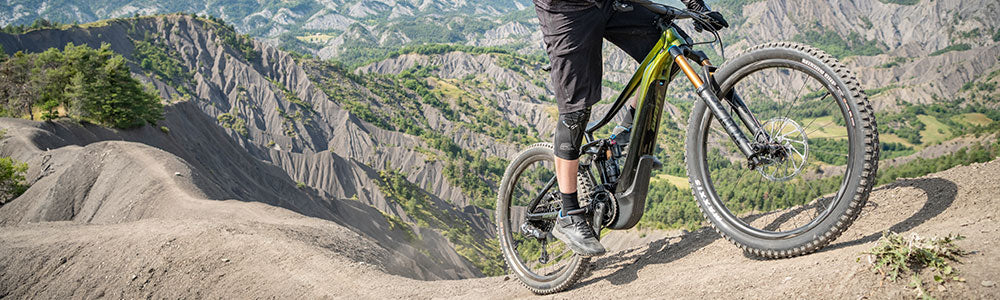

    SYNCDRIVE PRO

    SyncDrive Pro powered by Yamaha is designed for high-performance E-bike riding. Giant tuned the motor to make it more powerful, producing a performance-oriented riding style. The lightweight, compact SyncDrive Pro motor is used primarily on Giant’s high-performance models.

    Read more

    ×

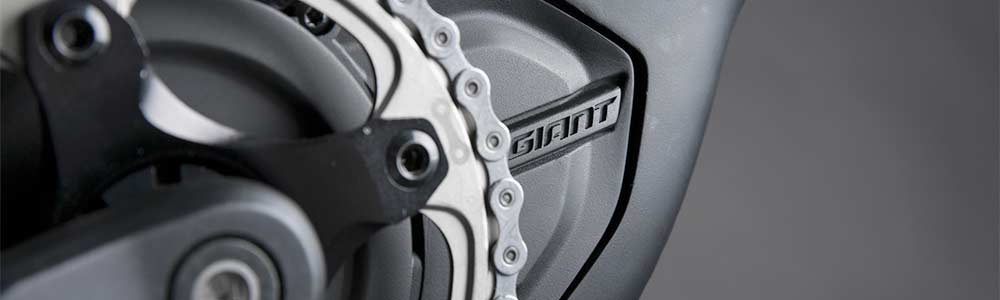

    SMART ASSIST

    All SyncDrive motors have Smart Assist technology, which adjusts the support to match the rider’s needs. By using information from multiple sensors, both rider input and terrain feedback are used to determine the optimal amount of pedaling assistance. SyncDrive is the only e-bike system that utilizes both rider input and terrain feedback. It gives you a smooth, natural riding experience with ample power when you need it, while also conserving power when you don’t need as much.

    READ MORE

    ×

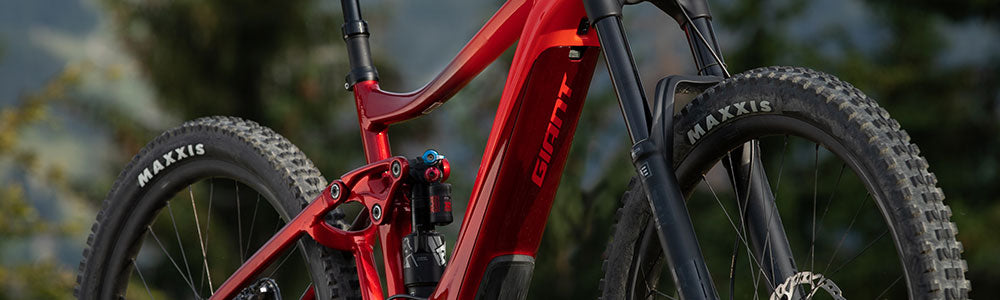

    ENERGYPAK

    Giant’s latest EnergyPak battery systems feature streamlined designs that are integrated with the E-bike for a sleek and modern profile. Giant E-bikes offer several different EnergyPak options including the EnergyPak Smart and EnergyPak. Each one is designed to optimise the E-bike experience for a specific style of riding.

    READ MORE

    ×

    A state-of-the-art high-pressure moulding process is used to produce complex-shaped carbon fibre components that are lighter, stiffer and stronger than similar components made from aluminium. This technology is used in critical performance parts such as Maestro Suspension rocker links.

    ×

    FLIP CHIP - MAESTRO

    The flip chip allows riders to quickly adjust the geometry of their Maestro-equipped mountain bike to better suit how and where they ride. It lets riders change the headtube/seattube angles and bottom bracket height via eccentric (offset, two-position) hardware located on the upper rocker arm.

    READ MORE

    ×

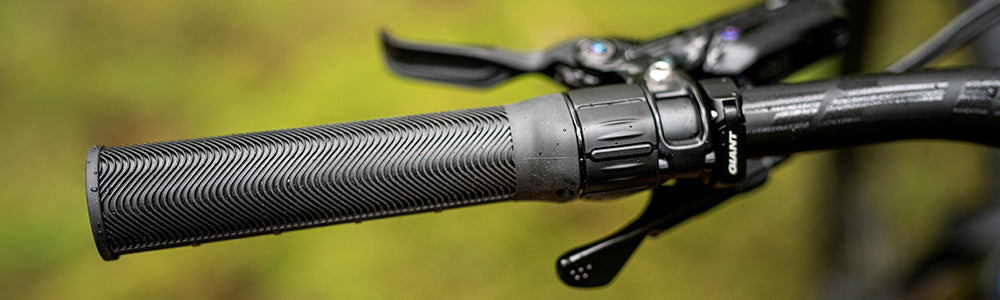

    This updated control system features clean buttons that are integrated with the handlebar grips. You can install the three-button control on the left or right side, making it easy to switch power modes. You also have the option of adding a second control on the other side. Using the RideControl App, you can configure it to your own personal preferences.

    READ MORE

    ×

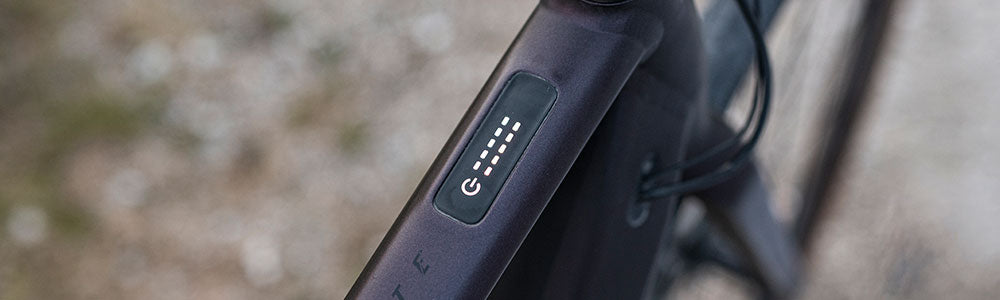

    Available on premium Giant E-Bikes, RideControl Go features a multipurpose button integrated into the top tube. Coloured LEDs allow you to switch power modes from the top tube and keep a clean handlebar setup. The lights also display battery level and support mode.

    READ MORE

  • SIZING GUIDE AND GEOMETRY

    Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
    Available sizes may vary from country to country.

    S
    LOW HIGH
    M
    LOW HIGH
    L
    LOW HIGH
    XL
    LOW HIGH
    A SEAT TUBE LENGTH (mm)
    400
    425
    450
    475
    B SEAT TUBE ANGLE
    77.2° 78.0°
    76.0° 76.7°
    76.0° 76.7°
    76.0° 76.7°
    C TOP TUBE LENGTH (mm)
    577 575
    607 605
    637 635
    667 665
    D HEAD TUBE LENGTH (mm)
    95
    105
    110
    120
    E HEAD TUBE ANGLE
    65.7° 66.5°
    65.8° 66.5°
    65.8° 66.5°
    65.8° 66.5°
    F FORK RAKE (mm)
    44
    44
    44
    44
    G TRAIL (mm)
    117 122.4
    117 122.4
    117 122.4
    117 122.4
    H WHEELBASE (mm)
    1220 1221
    1239 1237
    1268 1269
    1300 1301
    I CHAIN STAY LENGTH (mm)
    473 473
    473 473
    473 473
    473 473
    J BOTTOM BRACKET DROP (mm)
    30 20
    30 20
    30 20
    30 20
    K STACK (mm)
    606 601
    611 605
    621 614
    630 624
    L REACH (mm)
    439 447
    457 462
    482 489
    510 517
    M STAND OVER HEIGHT (mm)
    740 746
    727 734
    718 726
    715 723
    O STEM LENGTH (mm)
    40
    40
    50
    50
    P CRANK LENGTH (mm)
    160
    165
    165
    170
    Q WHEEL SIZE
    29"
    29"
    29"
    29"
  • Please note that our specifications may be impacted by running substitution changes, we highly recommend confirming the specifications of our products with your local retailer at the time of sale if purchasing in-store. *Recommended Retail Prices are subject to change without notice and may vary from store to store depending on freighting and assembly costs.
