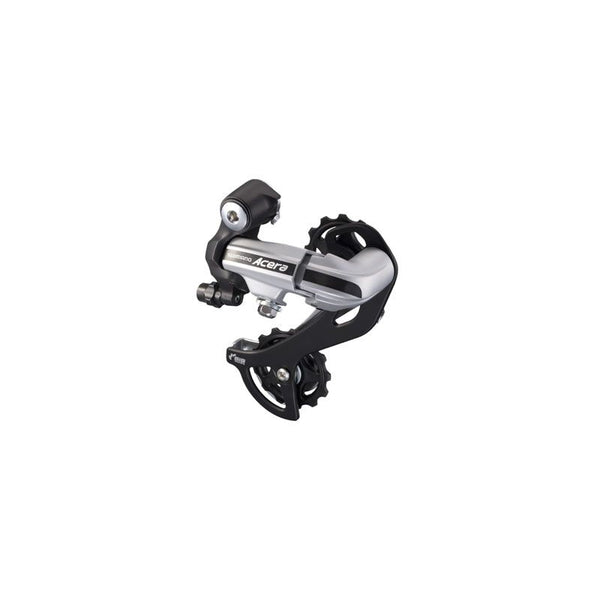

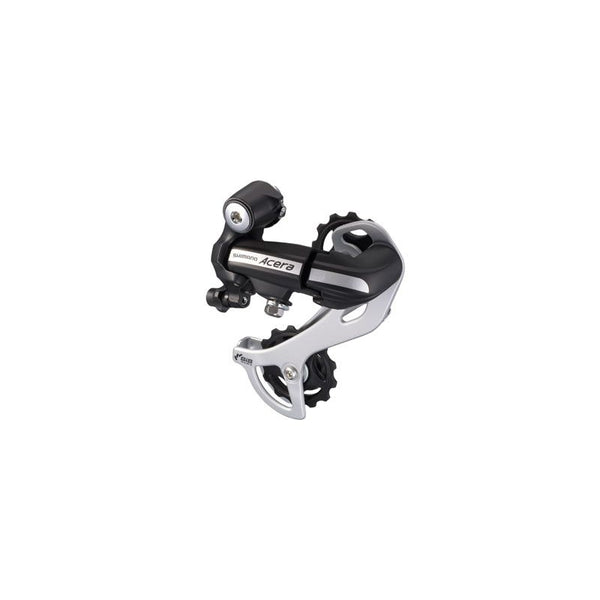

Shimano Acera RD-M360 Rear Derailleur 7/8 Speed

$39.95$49.95
Colour: Black
  • specs
  • similar products
  • you may also like
  • THE ACERA REAR DERAILLEUR RD-M360 BY SHIMANO - WIDE-LINK DESIGN FOR MORE STIFFNESS


    The Shimano Acera RD-M360 rear derailleur is suitable for 7- and 8-speed shifters. It was designed according to the wide-link concept with bearings spaced further apart, which increases stiffness and counteracts torsion under load. As a top standard rear derailleur, the RD-M360 supports fast downshifting of multiple gears in the Shimano SIS index shifting system.


    SPECIFICATIONS

    Series: Acera M360
    Application: All Mountain, Cross Country, City
    Gearing: 7-speed, 8-speed
    Mount: Standard
    Capacity: 43-tooth
    Compatibility: Shimano MTB / City & Touring 6-/7-/8-speed
    Compatibility - Chains: HG 6-/7-/8-speed


    TECHNICAL INFORMATION

    Derailleur Pulleys: 13/13 teeth
    Outer Cage Material: Steel
    Inner Cage Material: Steel
    Other Materials: Steel, stainless steel, aluminium


    COMPATIBILITY

    MTB 7-speed:

    Shifter: SL-M310-7R, SL-M315-7R, SL-RS47-7R, SL-RS45-7R, SL-RS36-7R, SL-RS35-7R, SL-RV400-7R, SL-RV300-7R, SL-RV200-7R, SL-FT55-7R, SL-TX50-7R, SL-TX30-7R, SL-TZ500-7R, SL-TZ20-7R, ST-EF65-7R2, ST-EF65-7R4, ST-EF500-7R2A, ST-EF500-7R4A, ST-EF510-7R2A, ST-EF510-7R4A, ST-EF505-7R, ST-EF41-7R

    Cassette:
    - 11-28 T: CS-HG41-7
    - 12-28 T: CS-HG200-7
    - 13-28 T: MF-HG37
    - 14-28 T: MF-TZ500-7, MF-TZ500-7-CP, MF-TZ510-7, MF-TZ510-7-CP, MF-TZ21-CP, MF-TZ21 - 12-32 T: CS-HG200-7
    - 14-34 T: MF-TZ500-7, MF-TZ500-7-CP, MF-TZ510-7, MF-TZ510-7-CP, MF-TZ31-CP, MF-TZ31

    Chain: CN-HG71, CN-HG40


    MTB 8-speed

    Shifter: SL-M360-R, SL-M310-8R, SL-M315-8R, SL-RS47-8R, SL-RS45-8R, SL-RV400-8R, ST-M310-8R2, ST-M310-8R4, ST-TX800-8R, ST-EF65-8R2, ST-EF65-8R4, ST-EF500-8R2A, ST-EF500-8R4A, ST-EF510-8R2A, ST-EF510-8R4A, ST-EF505-8R

    Cassette: CS-HG51-8, CS-HG41-8, CS-HG31-8, CS-HG200-8

    Chain: CN-HG71, CN-HG40


    FEATURES

    - Wide link design for higher rigidity and precise shifting operations
    - Advanced Light Action
    - 13/13 T derailleur pulleys
    - particularly light
    - galvanised cage plates
    - 1 pivot bushing, fluorine-coated


    MODEL SPECIFICATIONS

    Cage Length: SGS
    Max. Largest Sprocket Teeth: 34-tooth
    Min. Largest Sprocket Teeth: 28-tooth
    Max. Smallest Sprocket Teeth: 14-tooth
    Min. Smallest Sprocket Teeth: 11-tooth
    Max. Chainring Difference: 20-tooth
    Total Capacity: 43-tooth
  • Please note that our specifications may be impacted by running substitution changes, we highly recommend confirming the specifications of our products with your local retailer at the time of sale if purchasing in-store. *Recommended Retail Prices are subject to change without notice and may vary from store to store depending on freighting and assembly costs.
