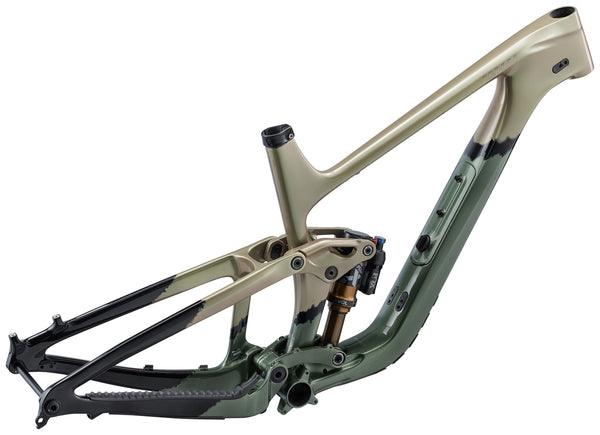

Giant Trance Advanced Pro 29 Frameset

$2,999.00$4,699.00
Colour: Ocean Trench
Size
Add to Cart
  • geometry
  • specs
  • similar products
  • you may also like

  • Shred hard and shred fast with this lively 29er. It's built on a full composite frame with adjustable geometry, giving you smooth control to blitz technical trails at speed.

    OVERVIEW

    This versatile trail bike features a full composite frame with a Maestro suspension system that has 5mm more travel than the previous generation. The Advanced Forged Composite rocker arm has a flip chip that allows you to adjust frame geometry. Choose steeper or slacker head tube/seat tube angles and either a 35mm or 45mm bottom bracket drop to adjust the handling for your riding style and terrain. The frame also includes a cleanly integrated storage space in the down tube for tools, snacks or other riding essentials.

    KEY PERFORMANCE FACTORS

    Adjustable frame geometry: Flip chip feature lets you change the head tube and seat tube angles, as well as the bottom bracket height, to fine-tune handling for varying trail conditions and individual riding style.

    29er confidence and control: Larger 29-inch diameter wheels optimised to roll over rough terrain with balance and stability, giving you the momentum to tackle technical climbs and the confidence to fly on fast, rugged singletrack descents.

    Progressive trail design: Lightweight composite frameset features a longer reach and steeper seat tube angle for aggressive trail riding and improved climbing capabilities. Maestro rear suspension features 120mm of rear wheel travel paired with a 130mm fork up front. The frame also includes a cleanly integrated storage space in the down tube for tools, snacks or other essentials.

  • SIZING GUIDE AND GEOMETRY

    Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
    Available sizes may vary from country to country.

    S
    M
    L
    XL
    A SEAT TUBE LENGTH (mm)
    420
    430
    465
    496
    B SEAT TUBE ANGLE
    77.2°
    76.3°
    76.3°
    76.3°
    C TOP TUBE LENGTH (mm)
    561
    599
    626
    663
    D HEAD TUBE LENGTH (mm)
    100
    110
    120
    130
    E HEAD TUBE ANGLE
    65.4°
    65.5°
    65.5°
    65.5°
    F FORK RAKE (mm)
    44
    44
    44
    44
    G TRAIL (mm)
    126.0
    126.0
    126.0
    126.0
    H WHEELBASE (mm)
    1166
    1195
    1124
    1263
    I CHAIN STAY LENGTH (mm)
    439
    439
    439
    439
    J BOTTOM BRACKET DROP (mm)
    45
    45
    45
    45
    K STACK (mm)
    610
    619
    628
    637
    L REACH (mm)
    422
    447
    472
    507
    M STAND OVER HEIGHT (mm)
    729
    723
    746
    751
    O STEM LENGTH (mm)
    40
    40
    50
    50
    P CRANK LENGTH (mm)
    165
    170
    170
    170
    Q WHEEL SIZE
    29"
    29"
    29"
    29"
  • Please note that our specifications may be impacted by running substitution changes, we highly recommend confirming the specifications of our products with your local retailer at the time of sale if purchasing in-store. *Recommended Retail Prices are subject to change without notice and may vary from store to store depending on freighting and assembly costs.
