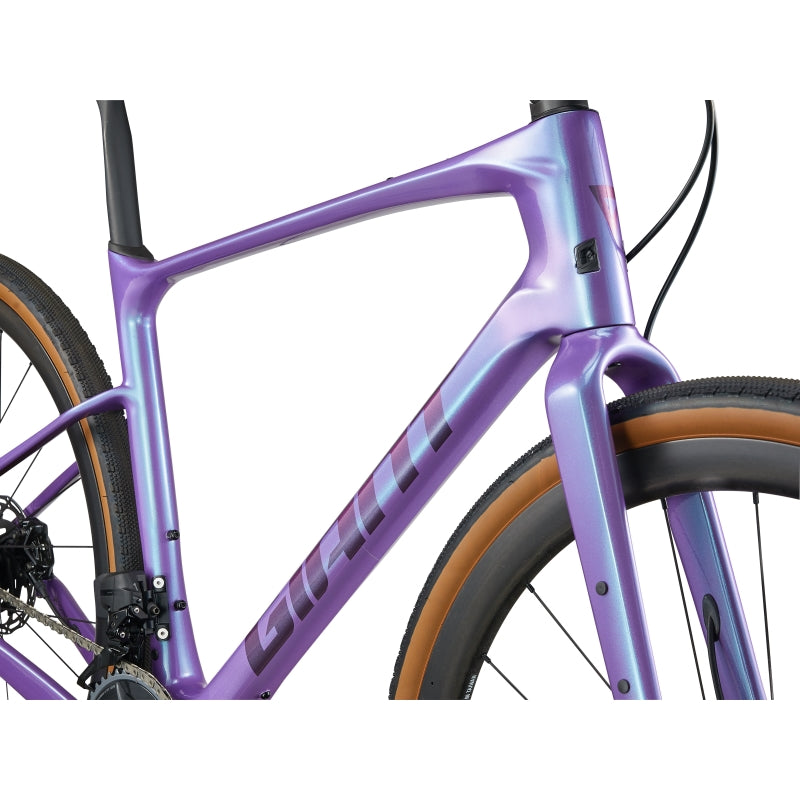

Giant Revolt Advanced Pro 0

$5,749.95$8,299.00
Colour: Digital Blurple
Size
Add to Cart
  • techs & features
  • geometry
  • specs
  • similar products
  • you may also like
  • FAST GRAVEL IS FUN GRAVEL. THE BIKE OF CHOICE FOR GIANT GRAVEL RACING PROS, THIS SUPERLIGHT SPEEDSTER DELIVERS A SMOOTH RIDE OVER RUGGED ROADS, AND IS ADAPTABLE TO ALL TYPES OF CONDITIONS AND RIDING STYLES.


    KEY PERFORMANCE FACTORS

    Lightweight efficiency
    Advanced composite frame and Advanced SL composite fork save a combined 200g compared to previous generation. Updated geometry includes a lower bottom bracket, longer reach, and steeper head tube angle for improved acceleration and climbing.

    Tuned compliance
    A lowered seatstay junction with smaller diameter tubes absorbs road shocks and vibrations. The Contact SLR D-Fuse carbon handlebar and D-Fuse seatpost work as a system to optimize compliance without sacrificing stiffness while cornering, sprinting and climbing

    Adaptable to the terrain
    A flip chip on the rear dropout adjusts the wheelbase short for quicker handling, or long for improved stability at speed. The long setting also allows for larger diameter tyres up to 53mm. You can choose the included D-Fuse seatpost for maximum compliance

    SPEC & GEOMETRY - REVOLT ADVANCED PRO 0

  • TECHS & FEATURES

    ×

    ADVANCED COMPOSITE TECHNOLOGY

    Giant’s High Performance Grade raw carbon material is used to produce this custom frame material in our own composite factory with a high stiffness-to-weight ratio. The front triangle of these framesets is assembled and moulded as one continuous piece in a proprietary manufacturing process called Modified Monocoque Construction.

    ×

    ADVANCED COMPOSITE SL TECHNOLOGY

    Giant’s Professional Grade raw carbon material is woven in our own composite factory using our most advanced engineering and construction methods including: Continuous Fibre Technology to add strength while reducing weight; Carbon Nanotube Technology resin to improve impact resistance; and Fusion Process for lighter, stronger frame junctions.

    ×

    D-FUSE TECHNOLOGY

    The D-Fuse seatpost and handlebar were designed to function as a system, absorbing road shocks and vibrations so you can ride further, faster.absorbing road shocks and vibrations so you can ride further, faster.

    READ MORE

    ×

    Giant’s original oversized fork steerer tube technology. Designed to provide precise front-end steering performance, the system’s oversized headset bearings (1 1/4” lower and 1 1/8” upper for road, 1 1/2” lower and 1 1/8” upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.

    ×

    TUBELESS SYSTEM

    Fewer flat tyres. Greater traction. Less rolling resistance and a smoother, faster ride. Giant’s Tubeless System makes it easier than ever to experience all these benefits.

    READ MORE

    ×

    FLIP CHIP - DROPOUT

    Allows riders to quickly adjust the geometry and rear-wheel tyre clearance with eccentric, offset two-position hardware in the rear wheel dropouts.

    READ MORE

  • SIZING GUIDE AND GEOMETRY

    Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
    Available sizes may vary from country to country.

    XS
    SHORT LONG
    S
    SHORT LONG
    M
    SHORT LONG
    ML
    SHORT LONG
    L
    SHORT LONG
    XL
    SHORT LONG
    A SEAT TUBE LENGTH (mm)
    430
    450
    470
    490
    510
    530
    B SEAT TUBE ANGLE
    74.0°
    73.5°
    73.5°
    73.0°
    73.0°
    73.0°
    C TOP TUBE LENGTH (mm)
    540
    550
    560
    575
    585
    600
    D HEAD TUBE LENGTH (mm)
    125
    135
    150
    165
    180
    195
    E HEAD TUBE ANGLE
    70.0°
    71.0°
    71.5°
    72.0°
    72.0°
    72.0°
    F FORK RAKE (mm)
    50
    50
    50
    50
    50
    50
    G TRAIL (mm)
    78 82
    72 75
    68 72
    65 68
    65 68
    65 68
    H WHEELBASE (mm)
    1024 1034
    1020 1030
    1026 1036
    1031 1041
    1041 1051
    1056 1066
    I CHAIN STAY LENGTH (mm)
    425 435
    425 435
    425 435
    425 435
    425 435
    425 435
    J BOTTOM BRACKET DROP (mm)
    80 81
    80 81
    80 81
    80 81
    80 81
    80 81
    K STACK (mm)
    556
    570
    586
    602
    616
    630
    L REACH (mm)
    381
    381
    387
    391
    397
    407
    M STAND OVER HEIGHT (mm)
    724 731
    740 747
    757 764
    774 780
    791 797
    807 814
    O STEM LENGTH (mm)
    50
    60
    70
    80
    80
    90
    P CRANK LENGTH (mm)
    170
    170
    172.5
    172.5
    175
    175
    Q WHEEL SIZE
    700C
    700C
    700C
    700C
    700C
    700C
  • Please note that our specifications may be impacted by running substitution changes, we highly recommend confirming the specifications of our products with your local retailer at the time of sale if purchasing in-store. *Recommended Retail Prices are subject to change without notice and may vary from store to store depending on freighting and assembly costs.
